- mpnPNL0250
- brandname: MAG-MATE
- manufacturername: MAG-MATE

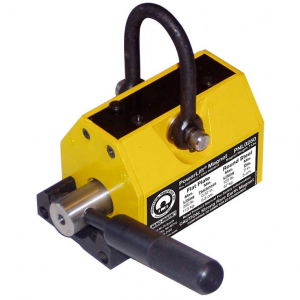

MAG-MATE PNL PNL0250 Powerlift Magnet, Heavy Duty Magnet, with 3 to 1 Lift Safety, Rare Earth Magnet with 250 lbs Lifting Capacity, Yellow or Green in Color
- Brand: Mag-Mate
- PartNumber: PNL0250
- Model: PNL0250
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Industrial Magnetics Inc
- Label: Industrial Magnetics Inc
Attributes
| Key | Value |
|---|
| Bail Opening Height | 1 3/8 in, 1-3/8" |
| Bail Opening Width | 1-1/2", 1 1/2 in |
| Features | RFID Enabled, Lock on a. |
| Footnotes | Max. Rated Capacities B. |
| Handle (in) | 4 |
| Handle Length | 5 7/8 in, 5-7/8" |
| Item | Lifting Magnet |
| Magnet Activation | Locking On/Off Handle |
| Magnet Height | 2 5/8 in, 2-5/8" |
| Magnet Ht. (in) | 2-5/8 |
| Magnet Length | 3 5/8 in |
| Magnet Material | Neodymium |
| Magnet Surface Size | 3 5/8 in x 2 5/8 in |
| Magnet Wd. (in) | 2-5/8 |
| Magnet Width | 2 5/8 in, 2-5/8" |
| Max. Heat Resistant Tem. | 180 Degrees F, 180 Deg. |
| Max. Rated Capacity @ M. | 180 lb, 180 lb. |
| Max. Rated Flat Capacity | 250 lbs., 250 lb |
| Max. Rated Round Capaci. | 125 lb, 125 lbs. |
| Min. Material Thickness. | 1/4 in, 1/4" |
| Overall Height | 6-5/8", 6 5/8 in |
| Overall Ht. (in) | 6-5/8 |
| Overall Length | 5 in, 5" |
| Overall Ln. (in) | 5 |
| Overall Size | 5 in x 2 5/8 in |
| Overall Width | 2 5/8 in, 2-5/8" |
| Required Material Thick. | 3", 3 in |
| Series | PowerLift |
| Standards | ASME B30.20 BTH-1 Desig. |
| Weight (lbs) | 7 |
| Working Load Limit (fla. | 250 lbs. |
| Working Load Limit (rou. | 125 lbs. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G3212553 | 192.99 | 1 | 140 | | Mag-Mate | | 192.99 @ 1 |
 | sustainablesupply.com | C3029445 | 231.39 | 1 | In Stock | | Mag-Mate | 7.0 | 231.39 @ 1 |
 | National Supply Network | 67077586 | 283.15 | 1 | In Stock | | Mag-Mate | | 283.15 @ 1 |
| AmazonTP | B008YCFWUE | 285.32 | 1 | In Stock | 5 | Mag-Mate | | 285.32 @ 1 |
| grainger.ca | MGNPNL0250 | 287.60788556 | 1 | In Stock | | MAG-MATE | 7.0 | 287.60788556 @ 1 |
 | primebuy.com | PNL0250 | 342.3 | 1 | In Stock | | Mag-Mate | 7.0 | 342.3 @ 1 |
 | bscsource.com | PNL0250 | 357.39 | 1 | In Stock | | Mag-Mate | | 357.39 @ 1 |
 | Raptor Supplies | AC3PEF | 381.552678 | 1 | In Stock | | MAG-MATE | | 381.552678 @ 1 |
 | penntoolco.com | 113616 | 399.95 | 1 | In Stock | | Mag-Mate | | 399.95 @ 1 |
