Mitutoyo 148-201

B001OBSHEU

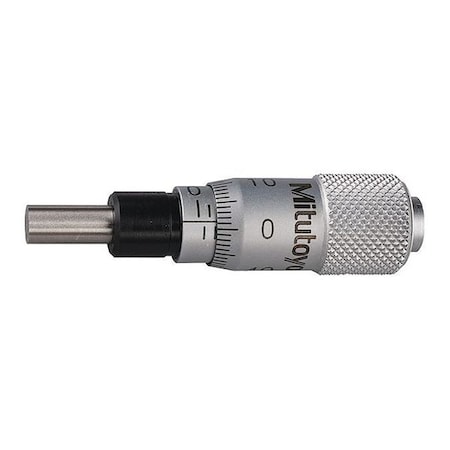

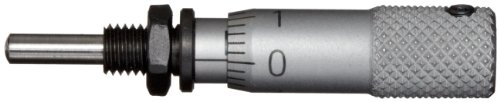

Mitutoyo 148-201 Miniature Micrometer Head, 0-6.5mm Range, 0.01mm Graduation, +/-0.005mm Accuracy, Plain Thimble, Flat Face

Mitutoyo 148-201 Miniature Micrometer Head, 0-6.5mm Range, 0.01mm Graduation, +/-0.005mm Accuracy, Plain Thimble, Flat Facezoom

Attributes

Key Value
Accuracy0.005 mm, ?5?m, +/-5 um
Accuracy (mm)?5 ?m
Accuracy Tolerance?5
AvailabilityCall for Availability
BrandMitutoyo
CertificationCertificate of Inspecti.
Clamp nutN
ColorChrome
Contact point diameter .3.5mm
Country of OriginJapan
Current Stock3
Dimension TypeMetric
Dimensions9.3 mm dia
Face TypeFlat
FeaturesScale Surface, Hard-Chr.
Graduation.01mm
Graduations0.01 mm
IncludesSpanner
Individual or setIndividual
International ShippingNo
ItemMechanical Micrometer H.
Item Weight0.10 lbs per EA
Lead TimeExpected to ship in 1-2.
Lock Nut TypeSpindle Lock
Long Form Calibration C.No
ManufacturerMitutoyo America Corpor.
Maximum Measurement6.5, 0.256
Measurement TypeMetric
Measuring range0 to 6.5 mm
Mechanical or digitalMechanical
Mfr. Model #148-201
Micrometer TypeMechanical
Minimum Measurement - mm0 mm
Model Number148-201
Mounting Hub Dia.3/8 in
Mouting Hub Diameter3/8 in
Mpn148-201
Operation TypeMechanical
Part 1 accuracy (mm)+/-5 ?m
Pitch/TPI0.50 mm
Plating MaterialChrome
Primary measuring range.0
Primary measuring range.6.5 mm
Product typeMicrometer heads
Range0 ? 6.5 mm, 0-6.5mm, 0 .
Resolution0.01 mm
Resolution or graduatio.0.01 mm
Rotating Spindle (Yes/N.Yes
Scale FinishChrome
Series148
Ship Weight (lbs.)1
Shipping height (in)1
Shipping length (in)1.5
Shipping weight (lbs)0.1
SKUZO-G0614247
SPC OutputNo
Special OfferNew
SpindleFlat
Spindle Diameter3.5 mm
Spindle diameter3.5mm
Spindle FaceFlat
Spindle MaterialSteel
Spindle ShapeFlat
Spindle typeFlat
Spinning width (in)1.5
StandardsJIS B 7502
Stem Diameter6.5, 6mm, 0.256
Stem diameter6mm
Stem TypePlain
SubCategoryMachining
ThimbleRatchet
Thimble diameter9.3 mm
Thimble TypePlain
Thimble typePlain
TypeMicrometer Head, Metric.
UnitEA
UPC603908045533
US harmonized tariff sc.9017.30.4000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG061424758.5918Mitutoyo0.0558.59 @ 1
thumbzoomprimebuy.com148-20166.511In StockMitutoyo66.51 @ 1
thumbzoomMRO Supply622619768.851In StockMitutoyo0.168.85 @ 1
thumbzoomsimsupply.comZO-G061424769.4513Mitutoyo69.45 @ 1
reidsupply.comMI-14820170.691In StockMitutoyo70.69 @ 1
thumbzoomjensentools.com1013879071.413Mitutoyo71.4 @ 1
Newark81K601274.31In StockMITUTOYO74.3 @ 1
thumbzoomKBC Tools1-808-14820174.31In StockMITUTOYO0.174.3 @ 1
thumbzoomgrovesindustrial.comMTI 148-20176.321In StockMitutoyo1.076.32 @ 1
thumbzoombscsource.com14820192.591In StockMitutoyo92.59 @ 1
