Molex / Waldom 15-31-2096

B07QP3P6PL

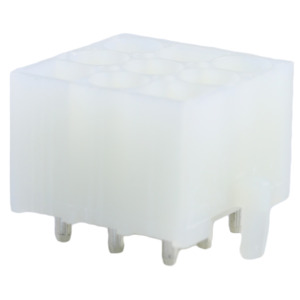

15-31-2096, Molex/Waldom (10 Items)

15-31-2096, Molex/Waldom (10 Items)zoom

Attributes

Key Value
Alternate Mfr Part Numb.A-5219-09C
ApplicationPower ; Wire-to-Board
ApplicationsGeneral Purpose, Teleco.
Base Product Number001531
CategoryConnectors, Interconnec.
ColorNatural
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.120.0?in (3.05?m)
Contact Finish Thicknes.-
Contact Length - Mating-
Contact Length - Post0.138" (3.50mm)
Contact MaterialBrass
Contact ShapeCircular
Contact TypeMale Pin
Current Rating9 A
Current Rating (Amps)-
DescriptionCONN HEADER VERT 9POS 6.
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number0015312096-ND
Family NameStandard .093"
Fastening TypeLocking Ramp
FeaturesBoard Lock
Ingress Protection-
Insulation ColorNatural
Insulation Height0.591" (15.00mm)
Insulation MaterialPolyamide (PA66), Nylon.
ManufacturerMolex
Manufacturer Product Nu.0015312096
Manufacturer Standard L.8 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-2
MfrMolex
Mounting TypeThrough Hole
Number of Circuits9
Number of Contacts9
Number of Positions9
Number of Positions Loa.All
Number of Rows3
Operating Temperature-
Overall Contact Length-
PackageBulk
Pitch6.70 mm
Pitch - Mating0.264" (6.71mm)
Plating MaterialTin
Primary TypePCB Header
Product StatusActive
Row Spacing - Mating0.264" (6.71mm)
Series5219 Series, 5219
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder, Through Hole
TypeReceptacle
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 15-31-20963.4620251MOLEX3.46 @ 20
thumbzoomjensentools.com101522684.731123Molex4.73 @ 5
Newark77AC69374.751108MOLEX4.75 @ 5
thumbzoomDigi-Key46929795.188956405Molex5.18895 @ 640
us.rs-online.com707707406.3515Molex Incorporated6.35 @ 5
AmazonTPB07QP3P6PL70.2151Molex / Waldom70.2 @ 5
