Omron D4A-1103-N

B005T8RBOQ

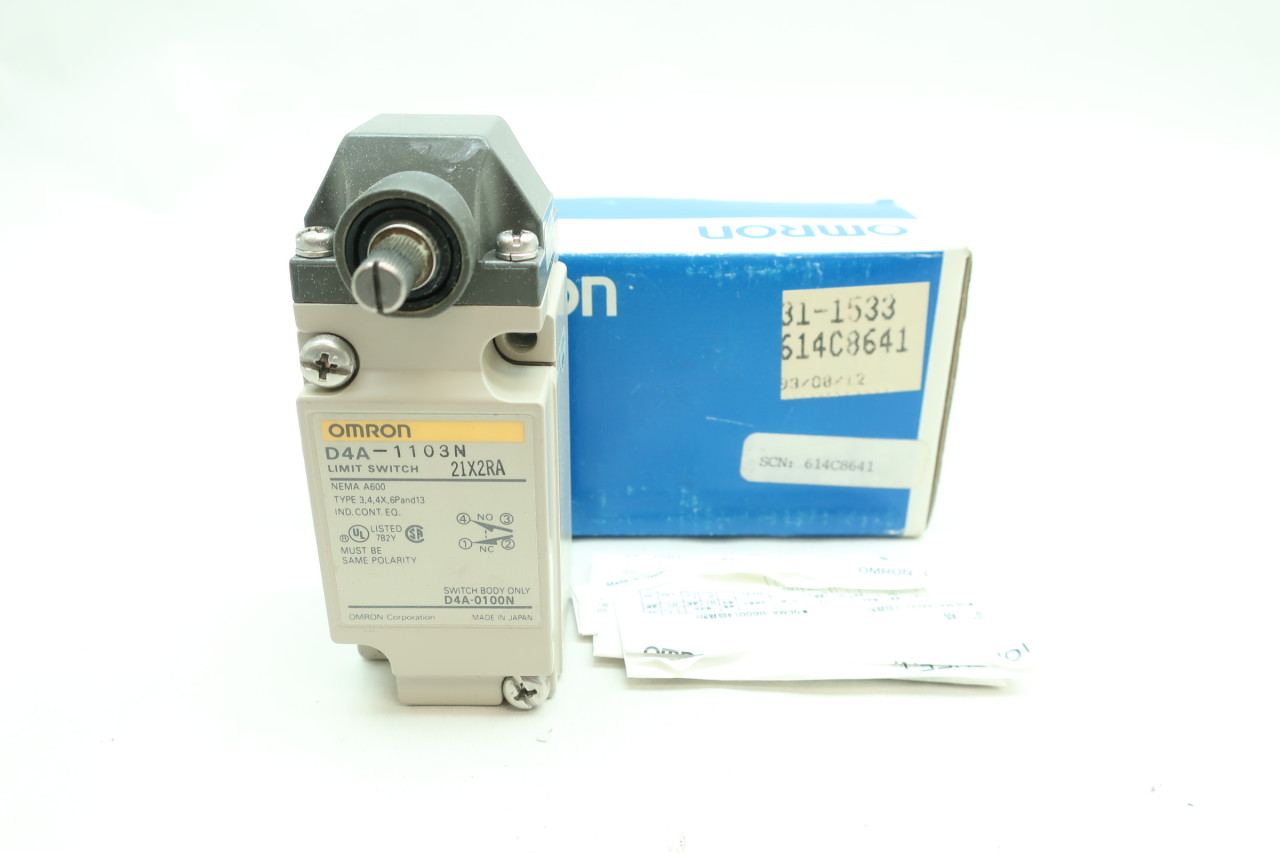

Omron D4A-1103-N General Purpose Limit Switch, Roller Lever, Low Torque, 1/2-14 NPT Conduit Size, Single Pole Double Throw, Double Break

Omron D4A-1103-N General Purpose Limit Switch, Roller Lever, Low Torque, 1/2-14 NPT Conduit Size, Single Pole Double Throw, Double Breakzoom

Attributes

Key Value
AC Contact Rating - Lim.10 A @ 600V, 10A @ 600V
Actuator Location - Lim.Side
Actuator Style - Limit .Rotary, No Lever, No Le.
Actuator TypeNo Actuator, Side Rotar.
Alternate Mfr Part Numb.D4A1103N
Base Product NumberD4A
Basic Actuator Style (L.Rotary
Basic Actuator Style - .Rotary
Body Depth - Limit Swit.1.73 in
Body Height - Limit Swi.2.97 in
Body MaterialAluminum
Body Style (Limit Switc.Miniature
Body Style - Limit Swit.Miniature
Body Width - Limit Swit.1.65 in
Boot Sealed Actuator - .No
BrandOmron
CategorySwitches
CircuitSPDT (DB/DM)
Contact FormSPDT
Contact Form- SwitchesSPDT
Current Rating10 A
Current Rating (Amps)10A (AC), 6A (DC)
Current Stock22
DC Contact Rating - Lim.Not Rated
Depth2.32" to 2.53"
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT (DB/DM) Cha.
Dielectric Strength1000/2200 VAC
Differential Travel5?
Digi-Key Part NumberZ7011-ND
Electrical ConnectionScrew Terminals
Electrical Life1,000,000 Cycles
Features-
Head TypeSide Rotary Head
Height4.11"
Ingress ProtectionIP67 - Dust Tight, Wate.
International ShippingNo
IP RatingIP67, 67
ItemHeavy Duty Limit Switch
Lead TimeExpected to ship in 1-2.
Limit Switch StyleHeavy Duty Limit Switch
ManufacturerOmron Automation and Sa.
Manufacturer Product Nu.D4A-1103-N
Manufacturer Standard L.26 Weeks
Mechanical Life50,000,000 Cycles
MfrOmron Automation and Sa.
Mounting - Limit SwitchSurface
Mounting Hole - Limit S.(2) 0.20 in dia
Mounting Hole Pattern -.2 Hole Diagonal
Mounting Hole Size5.2 ; 6.2 mm ; mm
Mounting Hole Spacing -.2.34 in x 1.16 in
Mounting TypeChassis Mount
MovementCW/CCW
MpnD4A1103N
NEMA Rating3, 4, 4X, 6P, 12, 13, I.
Number of Poles1
Operating Force1.7 lb. in. (Max.), 0.2.
Operating Position-
Operating Temp. Range-40 Degrees to 212 Deg.
Operating Temperature-20?C ~ 100?C, -40 to +.
OperationSnap Action
Overtravel70?
PackageBulk
Pretravel15?
Product StatusActive
Promotion RestrictionNot eligible for promot.
Release Force-
SeriesD4A, D4A Series
SKUZO-G0436816
StandardsUL, CSA
Stem Thread - Limit Swi.No Stem
SubCategoryElectrical
Switch FunctionOn-Mom
Termination StyleScrew Terminal
TravelTotal Travel 85 Degrees
TypeLimit
Voltage Rating600 V
Voltage Rating - AC125 V
Voltage Rating - DC30 V
Width1.65"
Wiring Entry1/2 in NPT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comD4A1103N93.1412OMRON INDUSTRIAL93.14 @ 1
AmazonTPB005T8RBOQ105.01In Stock15Omron105.0 @ 1
thumbzoomNRI IndustrialD650891109.481In StockOMRON109.48 @ 1
thumbzoomCarlton Bates Company40312373305134.131In StockOMRON134.13 @ 1
thumbzoomZoroG0436816138.991In StockOmron0.72138.99 @ 1
Master ElectronicsD4A1103N142.581In StockOMRON INDUSTRIAL142.58 @ 1
grainger.caWWG2CLR2143.034588421In StockOMRON0.72143.03458842 @ 1
Airline HydraulicsOMRON D4A-1103-N144.01In StockOmron144.0 @ 1
thumbzoomDigi-Key1794963152.411In StockOmron Automation and Safety152.41 @ 1
thumbzoomsimsupply.comZO-G0436816156.3122Omron156.3 @ 1
thumbzoomsustainablesupply.comC1177394157.331In StockOmron0.72157.33 @ 1
thumbzoomNewark35C0457192.82137OMRON INDUSTRIAL AUTOMATION192.82 @ 1
us.rs-online.com70179863197.211In StockOmron Automation197.21 @ 1
thumbzoomRaptor SuppliesAB9EQM222.78841651In StockOMRON222.7884165 @ 1
