Panduit P10-8R-L

mpnP10-8R-L
brandname: Panduit
manufacturername: Panduit

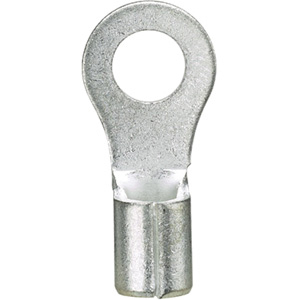

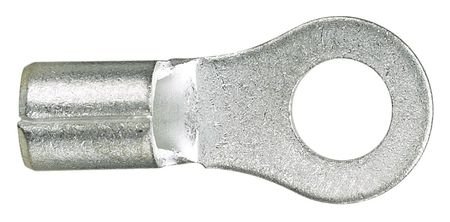

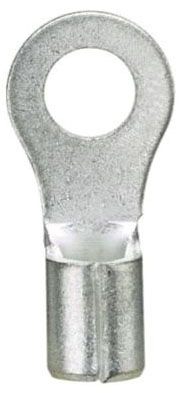

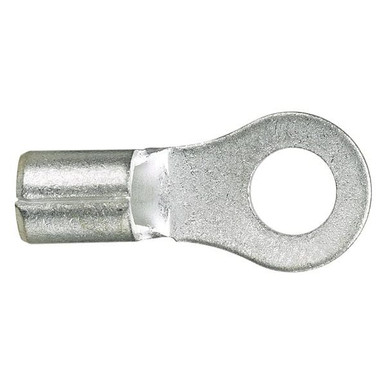

Panduit Terminal, Ring Tongue, 10Awg, Uninsul - P10-8R-L

Brand: Panduit
PartNumber: P10-8R-L
Model: P10-8R-L
PackageQuantity: 1
Manufacturer: Panduit
Label: Panduit

Attributes

Key	Value
Allowable Gauge Range	14 - 10
Approval	Approval
Approvals	CSA, UL
AWG Range	#10
Barrel Inside Diameter	0.13 in
Barrel Length	0.31 in
Barrel Outside Diameter	0.31 in
Barrel Style	Serrated Barrel
Base Product Number	P10
Brand	Pan-Term?, PANDUIT
Brand Name	PANDUIT
Category	Connectors, Interconnec.
Color	-, Silver, Metallic
Compatible Grainger Par.	376T32, 376T39, 376T59,.
Compatible Manufacturer.	CT-100A, CT-1570, CT-16.
Connection Material	Copper
Connection Type	Crimp
Connector Details	Ring Terminal
Connector Type	Ring Terminal
Contact Finish	Tin
Contact material	copper alloy
Contact Material	Copper
Contact plating	tinned
Country of Origin	MX - Mexico
Country of Origin (subj.	Mexico
Current Stock	57
Description	CONN RING CIRC 10-12AWG.
Detailed Description	Ring Terminal Connector.
Digi-Key Part Number	298-10534-ND
ECCN	EAR99
Electrical mounting	crimped
Environmental Certifica.	RoHS
Environmentally Friendly	Yes
Family Series	Panduit Terminals, Pan-.
Features	Brazed Seam, Serrated T.
Ferrule variant	non-insulated
Finish	Tin-Plated
For Wire Size	10 AWG, 12 AWG, 14 AWG
For Wire Sizes	14 AWG to 10 AWG
Green Environmental Att.	Does Not Contain PVC
Gross Weight	0.0031 lbs
Hole Diameter	0.17 in
Hole for screw	M4
Insulated	non-insulated
Insulation	Insulation, non-insulat.
Insulation Color	Bare, Insulation Color
Insulation Coverage	None
Insulation Diameter	-
Insulation Material	None
Insulation Type	non-insulated
International Shipping	No
Item	Ring Terminal
Item Number	P10-8R-L
Lead Free Status / RoHS.	RoHS Compliant
Length	0.8
Length - Overall	0.780" (19.81mm)
Manufacturer	Panduit Corp, PANDUIT
Manufacturer Part Number	P10-8R-L
Manufacturer Product Nu.	P10-8R-L
Manufacturer Standard L.	2 Weeks, 4 Weeks
Manufacturer Website Ad.	http://www.panduit.com
Material	Copper
Material - Insulation	-
Max Temp	302 ?F
Max. Temp.	302 Degrees F
Max. Voltage	2,000 V
Maximum Operating Tempe.	302 Degrees F
Maximum Voltage	2,000 V
Maximum Wire Size	10 AWG
Mechanical mounting	for cable
Mfr	Panduit Corp
Minimum Operating Tempe.	302 Degrees F
Minimum Wire Size	14 AWG
Mounting Type	Free Hanging (In-Line)
Mpn	P10-8R-L
Net Weight	0.0031 lbs
Outer Diameter	0.22 in.
Overall Length	0.78 in
Package	Bulk
Package Quantity	50
Packaging	50 Per Package, Bulk Pa.
Plating Material	Tin
Product Model	P10-8R-L
Product Name	P10-8R-L Ring Terminal
Product Series	Pan-Term Terminals
Product Status	Active
Product Type	Terminal Connector
Rated Voltage	2000V
Ring inside diameter	4.3mm
Ring Width Ranges	0.26 - 0.50 inches
RoHS Compliant	Yes
Seam	Brazed
Seam Style	Brazed
Series	Pan-Term?, Pan-Term
SKU	ZO-G0287850
Special Features	Ring Tongue Design Assu.
Standard Package	50
Standards	CSA C22.2 No. 65, UL486.
Strip Length	1/4 in
Stud Size	Stud Size, #8
Stud/Tab Size	8 Stud
SubCategory	Electrical
Temperature Rating	Temperature Rating
Terminal Connection	Crimp
Terminal Material	Copper
Terminal Shape	Ring Terminal
Terminal Type	ring, Terminal Type, Ci.
Termination	Crimp
Termination Style	Crimp
Thickness	0.040" (1.02mm)
Tongue Length	0.08 in
Tongue Thickness	0.04 in
Tongue Width	0.31 in
Tongue Width - Wire Con.	0.31 in
Type of tip	ring
UNSPSC	39121409
UPC	074983802302
UPC ID	UPC ID
Use With	CT-100, CT-200, CT-1570.
Volts	2,000 V
Width	0.3, 0.31 in.
Width - Outer Edges	0.310" (7.87mm)
Wire Gauge	10-12 AWG
Wire Range	12 to 10 AWG, Wire Range
Wire size	14AWG...10AWG
Wire Size	12-10 AWG
Wire Size (AWG)	10 AWG, 11 AWG, 12 AWG
Wire Strip Length	0.281 "

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
NEP Electronics	P10-8R-L	0.175	25	100		Panduit		0.175 @ 100
TME	P10-8R-L	0.277	5	100		PANDUIT		0.277 @ 100
cbtcompany.com	P10-8R-L	0.51	1	100		PANDUIT		0.51 @ 100
mecampbell.com	PANP10-8R-L	0.51	50	100	151	Panduit		0.51 @ 100
Galco	P10-8R-L-PNDT	0.53	250	100		Panduit	0.0031	0.53 @ 250
iodParts	P10-8R-L	0.544	500	1700		Panduit		0.544 @ 500
Onlinecomponents.com	P10-8R-L	0.56	1	1065		PANDUIT		0.56 @ 100
Platt.com	0167571	0.6	1	850		Panduit		0.6 @ 100
Airline Hydraulics	PANDUIT P10-8R-L	0.61	1	100		Panduit Corp		0.61 @ 100
Hotenda	H1660269	0.6503	1	100		Panduit		0.6503 @ 100
us.rs-online.com	72259996	0.66205	250	100		Panduit		0.66205 @ 250
Digi-Key	450074	0.6845	1	4796		Panduit Corp		0.6845 @ 100
Newark	14AC2074	0.692	1	183		PANDUIT		0.692 @ 100
electricalparts.com	P10-8R-L	23.3744	1	100		Panduit		23.3744 @ 100
Zoro	G0287850	24.89	1	212		Panduit	0.21	24.89 @ 100
PCNation	6WU427	24.98	1	100		PANDUIT	1.0	24.98 @ 100
Carlton Bates Company	07498380230	25.5	1	100		PANDUIT		25.5 @ 100
alldataresource.com	PAN-P10-8R-L	28.4	1	100		Panduit		28.4 @ 100
CDW	1835139	31.99	1	100		Panduit		31.99 @ 100
simsupply.com	ZO-G0287850	39.21	1	100		Panduit		39.21 @ 100
Raptor Supplies	AH8XYP	50.213709	1	100		PANDUIT		50.213709 @ 100
Graybar	88198450	55.216	50	350		Panduit		55.216 @ 100
turtle.com	PAN P10-8R-L	60.04	1	100		Panduit		60.04 @ 100
steinerelectric.com	6798	68.18	1	100		Panduit		68.18 @ 100
gordonelectricsupply.com	P10-8R-L	135.23	1	100	12	PANDUIT		135.23 @ 100
