Samtec TMM-107-01-G-D

B005T85G16

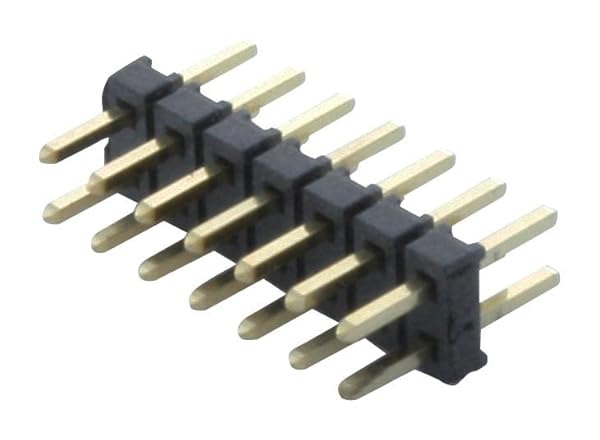

Samtec Board-to-Board Connector, Dual, Tmm Series, Through Hole, Header, 14, 2 Mm, Gold Plated Contacts Rohs Compliant: Yes - TMM-107-01-G-D

Samtec Board-to-Board Connector, Dual, Tmm Series, Through Hole, Header, 14, 2 Mm, Gold Plated Contacts Rohs Compliant: Yes - TMM-107-01-G-Dzoom

Attributes

Key Value
Applications-
Base Product NumberTMM-107
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thicknes.20.0?in (0.51?m)
Contact Finish Thicknes.3.00?in (0.076?m)
Contact Length - Mating0.126" (3.20mm)
Contact Length - Post0.138" (3.50mm)
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)3.2A per Contact
DescriptionCONN HEADER VERT 14POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberSAM1173-07-ND
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.059" (1.50mm)
Insulation MaterialLiquid Crystal Polymer .
ManufacturerSamtec Inc.
Manufacturer Product Nu.TMM-107-01-G-D
Mated Stacking Heights-
Material Flammability R.-
MfrSamtec Inc.
Mounting TypeThrough Hole
Number of Positions14
Number of Positions Loa.All
Number of Rows2
Operating Temperature-55?C ~ 125?C
Overall Contact Length0.323" (8.20mm)
PackageBulk
Pitch - Mating0.079" (2.00mm)
Product StatusActive
Row Spacing - Mating0.079" (2.00mm)
SeriesTMM
ShroudingUnshrouded
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
SamtecTMM-107-01-G-D2.2516699Samtec2.25 @ 25
thumbzoomRadwellTMM-107-01-G-D2.25125SAMTEC2.25 @ 25
thumbzoomNewark12P06892.6812752SAMTEC2.68 @ 25
thumbzoomDigi-Key11095342.7832125Samtec Inc.2.7832 @ 25
HotendaH13485923.458125Samtec, Inc.3.458 @ 25
