- mpnNU 307 ECM
- brandname: SKF
- manufacturername: SKF

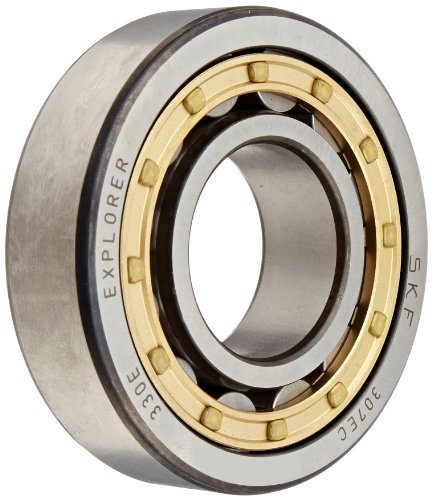

SKF NU 307 ECM Cylindrical Roller Bearing, Removable Inner Ring, Straight, High Capacity, Machined Brass Cage, Metric, 35mm Bore, 80mm OD, 21mm Width, 9500rpm Maximum Rotational Speed, 14200lbf Static Load Capacity, 14500lbf Dynamic Load Capacity
- Brand: SKF
- PartNumber: NU307ECM
- Model: NU 307 ECM
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: SKF
- Label: SKF
Attributes
| Key | Value |
|---|
| application: | Piston Type Machines, R. |
| bearing material: | Steel |
| Bearing Type | Cylindrical Roller Bear. |
| Bore | 1.378 Inch | 35 Millime. |
| Bore Dia. | 35 mm |
| Bore Diameter | 35 mm |
| Bore Diameter Tolerance | +0/-0.012 mm |
| Bore Profile | Brass, Straight |
| Bore Type | Cylindrical |
| bore type: | Straight |
| Brand | SKF |
| Cage Material | RBEC 1 | ISO P0, Machin. |
| cage material: | Brass |
| Category | Cylindrical Roller Bear. |
| Category - BDI | 31171547 |
| closure type: | Open |
| dynamic load capacity: | 75 kN |
| Dynamic Load Rating | 74.96 kN |
| EAN | 7316576623721, B04144 |
| fillet radius: | 1.5 mm |
| finish/coating: | Uncoated |
| Global Part Number GPN | 455750 |
| Harmonized Tariff Code | Bearing, 8482.50.00.00 |
| Housing Fillet Radius | 1 mm |
| Inch - Metric | Metric, High Capacity |. |
| Inner Diameter | 35 mm |
| Inner Ring Outside Dia.. | 2.008 in |
| Inner Ring Outside Dia.. | 51 mm |
| Inner Ring Outside Diam. | 65.811 mm |
| Internal Clearance | Yes, C0-Medium, CN |
| internal clearance: | C0 |
| Long Description | 1.378 Inch | 35 Millime. |
| Manufacturer Item Number | 35MM Bore; Straight Bor. |
| Manufacturer Name | SKF, N/A |
| Manufacturer URL | 1.27 |
| Marking Cover/Seal | None |
| Material | Bearing Steel |
| maximum rpm: | 11000 RPM |
| Minimum Buy Quantity | 0.576 |
| Noun | NU 307 ECM |
| Number of Raceway Ring . | Single Row |
| Number of Rows of Rolle. | Single Row, Inner Ring . |
| number of rows: | 1 |
| O.D. (in) | 3 1/7 |
| operating temperature r. | Maximum of +300 |
| Other Features | High Capacity | Plain I. |
| Outer Diameter | 80 mm |
| Outer Ring Inside Dia. . | 2.6102 in |
| Outer Ring Inside Dia. . | 66.3 mm |
| Outer Ring Inside Diame. | 66 mm |
| outer ring width: | 21 mm |
| Outside Dia. | 80 |
| Outside Dia. Tolerance | +0/-.013mm |
| Outside Diameter | 3.15 Inch | 80 Millimet. |
| Outside Diameter Tolera. | +0/-0.013 mm |
| Overall Width | 21 mm |
| Precision Class | RBEC 1 | ISO P0, Single. |
| precision rating: | RBEC 1 (ISO Class Norma. |
| price | $ 281.91 / each |
| Product Group - BDI | Straight |
| Profile | Complete with Outer and. |
| Relubricatable | Metric, Yes |
| Retainer | Yes |
| Retaining Ring Diameter | Not Applicable |
| ring separation: | Separable Ring |
| Roller Material | Steel |
| Rolling Element | Complete with Outer and. |
| RPM | 11000 RPM |
| Separable | Cylindrical Roller Bear. |
| Series | 3 Series |
| series: | NU3 |
| Shaft Fillet Radius | 1 mm |
| Shoulder Height (In.) | 2.7953 in |
| Shoulder Height (mm) | 71 mm |
| Snap Ring | C0-Medium, No |
| Special Features | High Radial Load Carryi. |
| Static Load Capacity (L. | 14,200 lb |
| static load capacity: | 63 kN |
| Static Load Rating | 62.99 kN |
| title | NU 307 ECM |
| Tolerance | +0/-.012mm |
| UNSPSC | 31171547, 8482.50.00.00 |
| UPC Code | 7316576623721 |
| Weight / kgm | 0.576 |
| Weight / Kilogram | 7316576623721 |
| Weight / LBS | 1.27, 3.15 Inch | 80 Mi. |
| Width | 0.827 Inch | 21 Millime. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | BDI Express | NU 307 ECM | 190.21690949 | 1 | 6 | | SKF | 1.2672 | 190.21690949 @ 1 |
 | MRO Supply | 314680 | 200.66 | 1 | In Stock | | SKF Bearing | | 200.66 @ 1 |
| factorysupplyoutlet.com | PG77WP | 210.57 | 1 | In Stock | 25 | SKF | | 210.57 @ 1 |
 | Lily Bearing | NU 307 ECM | 239.62 | 1 | In Stock | | SKF | 1.2672 | 239.62 @ 1 |
| us.rs-online.com | 73230226 | 243.1 | 1 | In Stock | | SKF Bearings | | 243.1 @ 1 |
 | motionindustries.com | 00070824 | 276.03 | 1 | In Stock | | SKF | | 276.03 @ 1 |
 | National Supply Network | 43341247 | 276.59 | 1 | In Stock | | SKF | | 276.59 @ 1 |
 | Zoro | G7999047 | 280.55 | 1 | In Stock | 15 | Skf | 1.27 | 280.55 @ 1 |
 | Misumi USA | NU 307 ECM | 282.27 | 1 | In Stock | 18 | SKF | | 282.27 @ 1 |
| Grainger | 49T759 | 302.25 | 1 | In Stock | 15 | SKF | | 302.25 @ 1 |
 | bscsource.com | NU307ECM | 326.89 | 1 | In Stock | | SKF | | 326.89 @ 1 |
