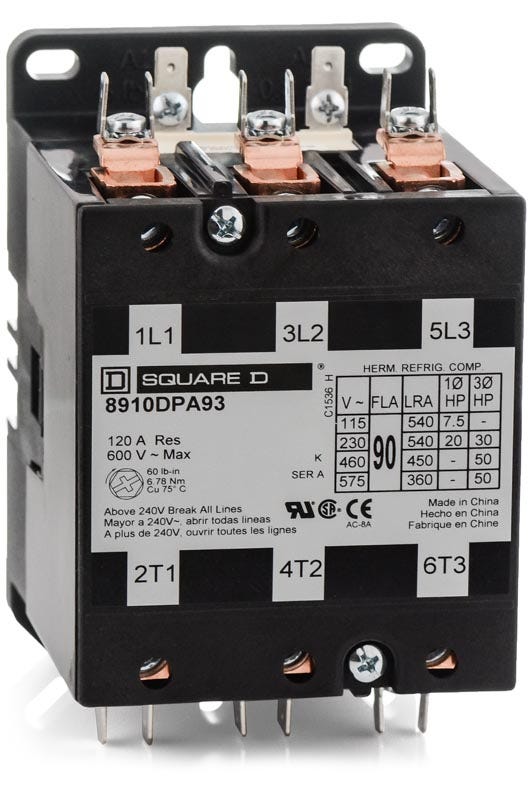

Square D 8910DPA93V06

B007IB2JLC

Dfinit Prpose Cntactr, 480VAC, 90A, 3P, Open

Dfinit Prpose Cntactr, 480VAC, 90A, 3P, Openzoom

Attributes

Key Value
ActionNon-Reversing
Amperage90A
ApplicationIDEAL FOR HEATING, AIR .
ApprovalsCSA, UL
BrandSquare D, Square D by S.
Catalog Number8910DPA93V06
Coil TypeMagnetic
Coil Voltage480 VAC, 440 V AC 50 Hz.
Coil Volts480V AC
ConditionNew
ConnectionQuick connect terminals.
Contact Configuration3 NO
Contact Rating90 A
Contactor TypeMagnetic
Country of OriginChina
Depth4.67 in
DIN MountingYes
Enclosure NEMA RatingNo Enclosure
Enclosure TypeOpen
Estimated Lead Time (in.13
Family SeriesSquare D Contactors
Full Load Amps-Inductive90 A
Full Load Amps-Resistive120 A
Gross Weight0 lbs
GTIN785901024576
Gtin785901024576
Height5.2 in
HP @ 1 Phase - 120V7 1/2 hp
HP @ 1 Phase - 230V20
HP @ 1 Phase - 240V20 hp
HP @ 3 Phase - 230V30
HP @ 3 Phase - 240V30 hp
HP @ 3 Phase - 480V50 hp
HP @ 3 Phase - 575V50 hp
Hz50/60
IncludesQuick Connect Terminal
Inductive Current Rating90 A
ItemDefinite Purpose Magnet.
Item Number8910DPA93V06
Item TypeDefinite Purpose Contac.
Locked Rotor 240/277V540 A
Locked Rotor 480V450 A
Locked Rotor 600V360 A
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number155723
Max HP 120V 1PH7.5 hp
Max HP 230/240V 1PH20 hp
Max HP 230/240V 3PH30 hp
Max HP 460/480V 3PH50 hp
Max HP 575/600V 3PH50 hp
MountingPanel Mount
Mounting TypePanel
Mpn8910DPA93V06
Net Weight0 lbs
Nominal Coil Voltage480 VAC
Number of Poles3
Phase3
Poles3, 3 NO
Product TypeDefinite Purpose Magnet.
ReversingNo
SeriesDPA, Standard
Size3P
Special Features7.5-7.5 HP 115 V AC, 1 .
StandardUL RECOGNIZED-CSA
StandardsCE, CSA, UL
Sub BrandDPA
TerminationBox Lug, Quick Connect
UPC785901024576
Upc785901024576
UPC Code785901024576
Voltage480V
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width3.39 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAllfuses8910DPA93V06273.2912Square D273.29 @ 1
thumbzoomZoroG3149352285.031In StockSquare D3.7285.03 @ 1
thumbzoomblackhawksupply.com8910DPA93V06330.751In StockSquare D330.75 @ 1
thumbzoomindustrialrefrigerationparts.com8910DPA93V06351.921In StockSquare D2.0351.92 @ 1
thumbzoomsuperbreakers.com8910DPA93V06359.612Square D359.6 @ 1
thumbzoomGalco8910DPA93V06-SQD376.381In StockSquare D376.38 @ 1
thumbzoomNewark81C3933377.011In StockSQUARE D BY SCHNEIDER ELECTRIC377.01 @ 1
thumbzoomRaptor SuppliesAF9HYA383.53038751In StockSQUARE D383.5303875 @ 1
standardelectricsupply.com2393619411.31In StockSquare D411.3 @ 1
thumbzoomsustainablesupply.comC2682079419.831In StockSquare D3.7419.83 @ 1
thumbzoomcrescentelectric.com330548461.671In StockSquare D by Schneider Electric461.67 @ 1
us.rs-online.com71146229477.9811Square D477.98 @ 1
simplybreakers.com8910DPA93V06523.991In StockSchneider Electric523.99 @ 1
