STMicroelectronics L6226PDTR

mpnL6226PDTR
brandname: STMicroelectronics
manufacturername: STMicroelectronics

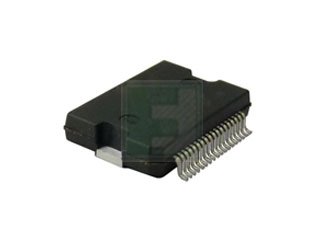

ST MICROELECTRONICS L6226PDTR L6226 Series Dual 52 V 0.73 Ohm 2.8 A Surface Mount High Side Driver POWERSO-36 - 600 item(s)

ST MICROELECTRONICS L6226PDTR L6226 Series Dual 52 V 0.73 Ohm 2.8 A Surface Mount High Side Driver POWERSO-36 - 600 item(s)

zoom

Brand: STMicroelectronics
PartNumber: L6226PDTR
Model: L6226PDTR
PackageQuantity: 1
Manufacturer: ST MICROELECTRONICS
Label: ST MICROELECTRONICS

Attributes

Key	Value
Applications	General Purpose
Base Product Number	L6226
Brand	STMicroelectronics
Category	Integrated Circuits (IC.
Current - Output	1.4A
Dimensions	16 x 11.1 x 3.3mm
ECCN EU	EAR99
ECCN US	150.0
Function	Driver - Fully Integrat.
Grade	Ecopack2
Height	3.3mm
Interface	Parallel
Length	16mm
Maximum Collector Emitt.	52 V
Maximum IGBT Collector .	1.4A
Maximum Operating Suppl.	52 V
Maximum Operating Tempe.	+150 ?C
Mfr	STMicroelectronics
Minimum Operating Suppl.	8 V
Minimum Operating Tempe.	-40 ?C
Motor Type	Motor Type
Motor Type - AC, DC	Brushed DC
Motor Type - Stepper	Bipolar
Mounting Type	Surface Mount
Operating Temp Max Cels.	-40.0
Operating Temp Min Cels.	PowerSO 36
Operating Temperature	-25?C ~ 125?C (TJ)
Output Configuration	Dual Full Bridge, Half .
Package	Tape & Reel (TR)
Package / Case	36-BSSOP (0.433", 11.00.
Package Name	Industrial
Package Type	PowerSO
Packing Type	NEC
Part Status	Active
Pin Count	36
Product Status	Active
RoHs compliant	Tape And Reel
Series	STSPIN L62
Step Resolution	-
Stock	Stock
Supplier Device Package	PowerSO-36
Technology	BiCDMOS
Typical Switching Frequ.	Typical Switching Frequ.
Voltage - Load	8V ~ 52V
Voltage - Supply	8V ~ 52V
Width	11.1mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	RS Delivers	178-5043	3.6288	600	600		STMicroelectronics		3.6288 @ 600
	Hotenda	H2589026	4.20205	600	600		STMicroelectronics		4.20205 @ 600
	Future Electronics	C013343114	4.6632	600	600		STMicroelectronics		4.6632 @ 600
	Digi-Key	1154482	5.30145	1	600		STMicroelectronics		5.30145 @ 600
	st.com	L6226PDTR	5.35	1	600		STMicroelectronics		5.35 @ 600
	Newark	45AC7246	6.22	1	2982		STMICROELECTRONICS		6.22 @ 600
