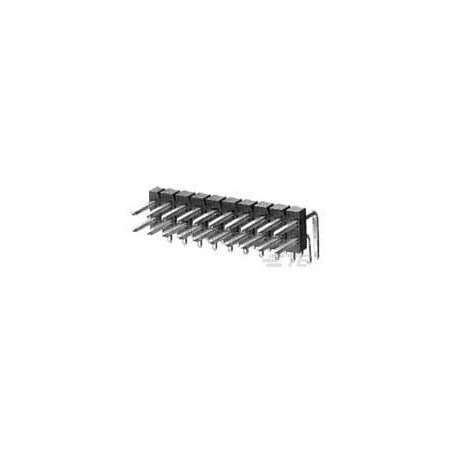

TE Connectivity 826634-8

mpn826634-8
brandname: TE Connectivity
manufacturername: TE Connectivity

TE Connectivity Part Number 826634-8

Brand: TE Connectivity
PartNumber: 826634-8
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Alternate Part No.	571-826634-8
Applications	-
Base Product Number	826634
Brand	TE Connectivity / AMP
Category	Connectors, Interconnec.
Connector	pin header
Connector pinout layout	2x8
Connector series	AMPMODU MOD II
Connector Type	Header, Breakaway
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	3.90?in (0.099?m)
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Gender	Pin (Male)
Contact Length - Mating	0.264" (6.70mm)
Contact Length - Post	0.126" (3.20mm)
Contact Material	Brass, Phosphor Bronze
Contact Plating	Gold
Contact plating	selectively gold plated
Contact Shape	Square
Contact Type	Male Pin
Contacts pitch	2.54mm
Country of Origin (subj.	Switzerland
Current Rating (Amps)	5A
Description	CONN HEADER R/A 16POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	A106473-ND
Electrical mounting	THT
Fastening Type	Push-Pull
Features	-
Flammability Rating	UL 94 V-0
Height	6.7mm
Housing Material	Thermoplastic
Ingress Protection	-
Insulation Color	Green
Insulation Height	0.219" (5.56mm)
Insulation Material	Polybutylene Terephthal.
Kind of connector	male
Leads dimensions	L 3.2mm
Manufacturer	TE Connectivity AMP Con.
Manufacturer Part No.	826634-8
Manufacturer Product Nu.	826634-8
Manufacturer Standard L.	23 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mating Post Length	6.7 mm
Mfr	TE Connectivity AMP Con.
Mounting Angle	Right
Mounting Type	Through Hole, Right Ang.
Number of pins	16
Number of Positions	16
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-65?C ~ 105?C
Overall Contact Length	-
Package	Bulk
Pitch	2.54 mm
Pitch - Mating	0.100" (2.54mm)
Product Category	Headers & Wire Housings
Product Status	Active
Product Type	Headers
Row Spacing	2.54 mm
Row Spacing - Mating	0.100" (2.54mm)
Series	AMPMODU MOD II
Shrouding	Unshrouded
Spatial orientation	angled 90?
Style	Board to Board or Cable
Termination	Solder
Termination Post Length	3.2 mm
Termination Style	Through Hole
Tradename	AMPMODU
Type	Breakaway
Type of connector	pin strips
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	TE CONNECTIVITY AMP BRAND 826634-8	1.06	50	5137	TE CONNECTIVITY/AMP BRAND	1.06 @ 50
Onlinecomponents.com	826634-8	1.39	1	7004	TE Connectivity / AMP Brand	1.39 @ 25
Zoro	G500939784	1.63	3600	25	Te Connectivity	1.63 @ 3600
Digi-Key	2276141	1.65	50	5137	TE Connectivity AMP Connectors	1.65 @ 50
Newark	96Y4845	1.87	1	5137	AMP - TE CONNECTIVITY	1.87 @ 25
TME	826634-8	2.19	1	38	TE Connectivity	2.19 @ 25
swatee.com	826634-8	3.21	1	50	TE Connectivity	3.21 @ 25
