TE Connectivity 3-1437567-6

B00KSPARGY

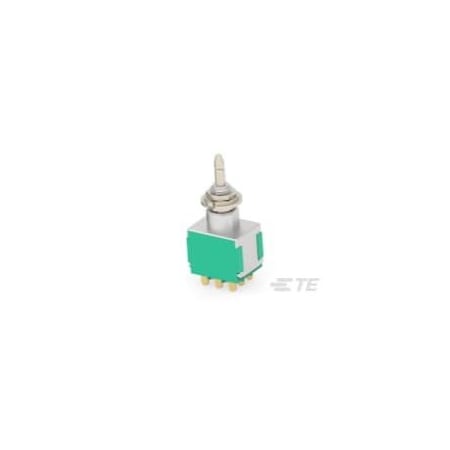

TE Connectivity Part Number 3-1437567-6

TE Connectivity Part Number 3-1437567-6zoom

Attributes

Key Value
Actuator Force?:.590 ? 1224?g?[?20.8 ? 4.
Actuator Length?.12.19?mm?[?.48?in?]
Actuator MarkingNo Marking
Actuator MaterialNickel-Plated Copper Al.
Actuator ProfileExtended
Actuator StyleCap - Order Separately
Actuator TypePlunger for Cap
Alternate Mfr Part Numb.3-1437567-6
Base Product NumberMPA3
Bushing Length?:.7.11?mm?[?.28?in?]
Bushing StyleThreaded
Bushing Thread Size1/4-40
Case MaterialThermoset
CategorySwitches
Circuit3PDT
Color - Actuator/Cap-
CommentOrder cap model C22 or .
Configuration (Pole-Thr.Three Pole - Double Thr.
Contact Base MaterialSilver Clad Copper
Contact Current Rating6
Country of Origin (subj.United States
Current Rating (Amps)6A (AC), 4A (DC)
DescriptionSWITCH PUSHBUTTON 3PDT .
Detailed DescriptionPushbutton Switch 3PDT .
Digi-Key Part Number450-1077-ND
Dust ProofNo
Electrical Life50,000 Cycles
ESD Grounding TerminalWithout
Features-
GangedNo
IlluminatedNo
Illumination Type, Color-
Illumination Voltage (N.-
Ingress Protection-
Low ProfileNo
ManufacturerTE Connectivity ALCOSWI.
Manufacturer Product Nu.MPA306F
Manufacturer Standard L.25 Weeks
Mechanical Life-
MfrTE Connectivity ALCOSWI.
Mounting AngleVertical
Mounting TypePanel Mount, Rear, Panel
Number of ActuatorsSingle
Operating FunctionMomentary
Operating Temperature-20?C ~ 80?C
PackageBulk
Packaging MethodBulk
Panel Cutout DimensionsCircular - 6.35mm Dia
Process SealedNo
Product StatusActive
Product TypeSwitch
Screw & Hole Thread Size1/4-40 UNS-2A
SeriesMPA
Snap ActionWithout
Support BracketWithout
Switch Contact Plating .Silver Clad with Gold F.
Switch FunctionOn-Mom
Switch TypePushbutton
TactileNo
Temperature RatingStandard
Termination StyleSolder Lug
Termination TypeWire Lugs
TypeStandard
Voltage Rating125, 250, 28
Voltage Rating - AC125 V
Voltage Rating - DC28 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommarvac.com2767712.951In StockAlcoswitch12.95 @ 1
Onlinecomponents.com3-1437567-622.51194TE Connectivity / AMP Brand22.5 @ 1
Newark36AC296527.9850In StockAMP - TE CONNECTIVITY27.98 @ 50
us.rs-online.com7203283229.76100In StockTE Connectivity29.76 @ 100
thumbzoomDigi-Key52579437.51380TE Connectivity ALCOSWITCH Switches37.5 @ 1
TE Connectivity3-1437567-638.198165TE Connectivity (TE)38.198 @ 1
thumbzoomZoroG60098421942.5950In StockTe Connectivity42.59 @ 50
