TE Connectivity / AMP 3-5176264-6

mpn3-5176264-6
brandname: TE Connectivity / AMP Brand
manufacturername: TE Connectivity / AMP Brand

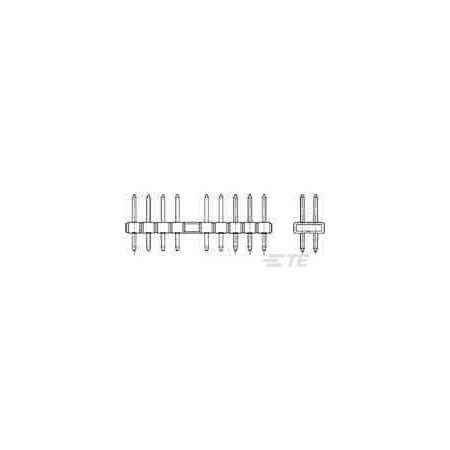

3-5176264-6, AMPMODU 2MM Pitch Post HDR, Vertical Mount Type (10 Items)

Brand: TE Connectivity / AMP
PartNumber: 3-5176264-6
Model: 3-5176264-6
Manufacturer: TE Connectivity / AMP
Label: TE Connectivity / AMP

Attributes

Key	Value
Applications	-
Base Product Number	5176264
Category	Connectors, Interconnec.
Color	Black
Connection Material	Copper Alloy
Connector Terminates To	Printed Circuit Board
Connector Type	Header, Breakaway
Contact Finish	Matte Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	8.00?in (0.203?m)
Contact Finish Thicknes.	-
Contact Length - Mating	0.157" (4.00mm)
Contact Length - Post	0.102" (2.60mm)
Contact Material	Brass
Contact Plating Thickne.	8 ?in
Contact Shape	Square
Contact Type	Male Pin, Pin
Current Rating	1 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 44POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	3-5176264-6-ND
Fastening Type	Push-Pull
Features	-
Flammability Rating	UL 94 V-0
Height	1.75 mm
Hole Center to Center	2 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.059" (1.50mm)
Insulation Material	Thermoplastic
Item	PCB Mount Header
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	3-5176264-6
Mated Stacking Heights	-
Material	Thermoplastic
Material Flammability R.	UL94 V-0
Max. Temp.	105?C
Max. Voltage	200V AC
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole
Number of Contacts	44
Number of Positions	44
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-40?C ~ 105?C
Overall Contact Length	0.319" (8.10mm)
Package	Bulk
Package Quantity	1
Pitch - Mating	0.079" (2.00mm)
Product Status	Active
Row Spacing - Mating	0.079" (2.00mm)
Series	AMPMODU
Shrouding	Unshrouded
Standards	CSA LR7189; UL E28476
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Type	Breakaway
Voltage Rating	200VAC

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Newark	96Y1152	4.12	1	24	AMP - TE CONNECTIVITY	4.12 @ 1
us.rs-online.com	72016004	4.52	2400	24	TE Connectivity	4.52 @ 2400
Digi-Key	1893102	4.578608	2400	24	TE Connectivity AMP Connectors	4.578608 @ 2400
Onlinecomponents.com	3-5176264-6	5.67	1	1800	TE Connectivity / AMP Brand	5.67 @ 1
Zoro	G601043786	89.0	1	24	Te Connectivity	89.0 @ 1
