Tritan UCF212-36

B08X3SSJY2

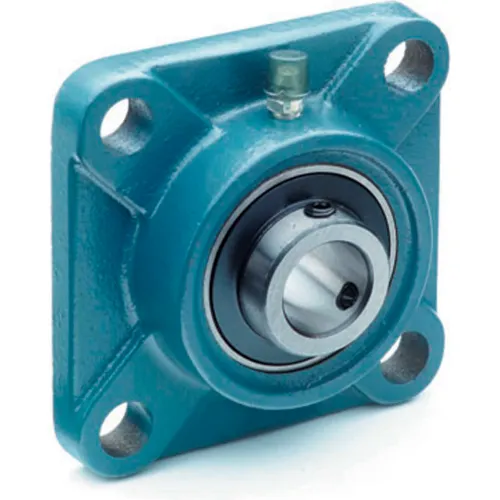

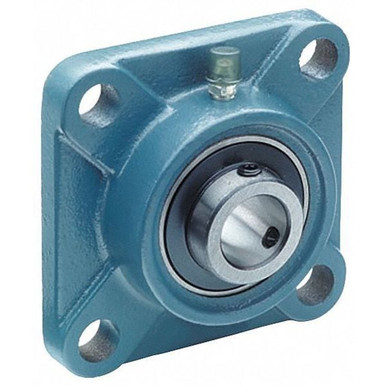

UCF212-36 - TRITAN - Factory New!

UCF212-36 - TRITAN - Factory New!zoom

Attributes

Key Value
Bearing Housing Materia.Cast Iron
Bearing Insert Material52100 Steel, Alloy Steel
Bearing Insert TypeBall, Radial Ball
Bearing LubricationShell Alvania RL2 or NL.
Bearing Material Grade52100
Bolt Hole Center-to-Cen.5.6299"
Bolt Size5/8 in
Bore Dia.2.25"
Bore Diameter2 1/4 in
Bore TypeCylindrical
BrandTritan
ClosureDouble Sealed
ColorBlue
Current Stock7
Dynamic Load Capacity10,723.39 lbf, 10745 Lbf
FeaturesAnti-Rotation Device, C.
Flange Thickness0.781 in
Housing MaterialCast Iron
Housing Material FinishPainted
Housing TypeSquare
Included BearingUC212-36
International ShippingNo
Item4-Bolt Flange Bearing, .
Locking TypeSet Screw
Lubricant MaterialNLGI #2 Equivalent
Lubrication OpeningsOne Zirc Fitting
Maximum Temperature250 Degrees F
Minimum Temperature-40 Degrees F
Mount Hole Center-to-Ce.5.625 in
Mount Hole Center-to-Ce.5.625 in
Mount Hole Size3/4 in
Mounting Bolt Size5/8 in
MpnUCF212-36
Number of Mount Holes4
Overall Height68.7 mm, 6.89 in
Overall Length6.89 in, 175 mm
Overall Width2.703 in, 175 mm
Rolling Element Rows1
Seal MaterialRubber
SeriesUCF
Shaft Locking TypeSet Screw, Set Screws
SKUZO-G9446954
StandardsISO, AFBMA, AFBMA, ISO
Static Load Capacity7373 Lbf
Static Radial Load Capa.7,396.21 lbf
SubCategoryPower Transmission
System of MeasurementInch
Temp. Range-4 to +248? F
UPC888569052902

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Grainger36UY4373.7511212TRITAN73.75 @ 1
thumbzoomZoroG944695478.91123Tritan8.4778.91 @ 1
thumbzoomsimsupply.comZO-G944695491.6217Tritan91.62 @ 1
thumbzoomNational Supply Network92645159123.421In StockTritan123.42 @ 1
thumbzoomGlobal IndustrialWBB1873318129.981In StockTritan129.98 @ 1
grainger.caWWG36UY43154.226516941In StockTRITAN8.47154.22651694 @ 1
thumbzoomRaptor SuppliesAH7JXR204.8772961In StockTRITAN204.877296 @ 1
