WEG 05036ET3E326JP-W22

B007PB1GDC

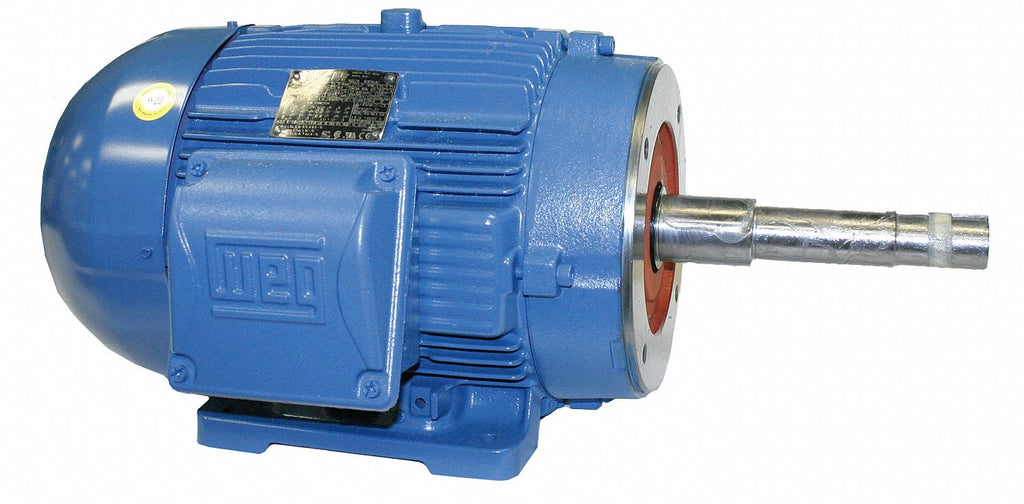

WEG 05036ET3E326JP-W22 JP Type TEFC NEMA Premium Close Coupled Pump Motor, 50 HP, 3-Phase, 3550 rpm, 208-230/460 V, 60 Hz, Frame 324/6JP

WEG 05036ET3E326JP-W22 JP Type TEFC NEMA Premium Close Coupled Pump Motor, 50 HP, 3-Phase, 3550 rpm, 208-230/460 V, 60 Hz, Frame 324/6JPzoom

Attributes

Key Value
Amperage Rating124 to 112/56.1 A
ApplicationIndustrial and Commerci.
Application TypeJet Pump (JM/JP) Motors
Bearing TypeBall
Body Dia.15.9 in
Bolt Circle Dia.11 in
CC NumberCC029A
ClassificationJM-JP & Jet Pump
CompositionCast Iron
ConditionNew
Conduit Box LocationExterior
Conduit Box PositionF1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 50HP 2P 324/6JP W.
Dimensions34.021 in L
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency %93 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight613.00
Family SeriesWEG Electric Motors
FL Amps56.1
FL Efficiency93.0
FlangesWithout
Frame326JP, 324JP, 324/6JP
Frame MaterialCast Iron
Frame RemarksClose Coupled Pump, Foo.
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps124.0-112.0/56.1
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Height15 15/16 in
Hertz60
Horsepower50 hp
HP50
Hz60
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
Inverter Rating1000:1
ItemClose-Coupled Pump Motor
Item ConditionFactory New
Item Number05036ET3E326JP-W22
Length Less Shaft25 7/8 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number05036ET3E326JP-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:05036ET3E326JP-W22
Model11793242
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.25
Motor Shaft DesignJP Threaded
Motor Shaft RotationCW/CCW
Motor Sub ApplicationClose-Coupled Pump
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, Footed
Nameplate RPM3,550
NEMA DesignB
NEMA Frame326JP
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency93 %
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating25 HP
Overall Length34 in
Part Number05036ET3E326JP-W22
Phase3, Three, 3 ph
Product TypePump
Regreasable BearingsRegreasable Bearings
Replaces05036EP3E326JP-W22
RotationCW/CCW
RPM3600, 3,600 RPM, 3550
RPM Range3,001-3,600
Service Factor1.25
Shaft Dia.1 1/4 in
Shaft Length8 1/8 in
Shaft MaterialCarbon Steel
Shaft Size1-1/4 in Dia x 7-7/8 in.
Speed3550 rpm
Speed (RPM)3600
StandardNEMA MG-1
StandardsCSA (LR38324), CSA (LR5.
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7891327887541
Usable @ 200VNo
Usable @ 208VYes
Voltage208-230/460V AC, 575 V,.
Voltage (AC)208 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight592 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
motionindustries.com04702194214.31In StockWEG Electric Corporation214.3 @ 1
thumbzoomelectricmotorwholesale.com05036ET3E326JP-W223385.01In StockWEG592.03385.0 @ 1
thumbzoommotorsandcontrol.com05036ET3E326JP-W224992.91In StockWEG Electric613.04992.9 @ 1
thumbzoomWalker Industrial05036ET3E326JP-W225049.751In Stock17WEG5049.75 @ 1
thumbzoomGalco05036ET3E326JP-W22-WEG5530.041In StockWEG Electric5530.04 @ 1
thumbzoomindustrialrefrigerationparts.com05036ET3E326JP-W225600.311In StockWEG5600.31 @ 1
AmazonTPB007PB1GDC5665.711In Stock2WEG5665.71 @ 1
thumbzoomZoroG40512665682.5411Weg595.05682.54 @ 1
kscdirect.comWEG 05036ET3E326JP-W225731.091In StockWEG ELECTRIC CORP5731.09 @ 1
thumbzoomDealers Electric05036ET3E326JP-W226147.291In StockWeg613.06147.29 @ 1
thumbzoomPurvis05036ET3E326JP-W227473.641In StockWEG7473.64 @ 1
thumbzoomsustainablesupply.comC14928348952.341In StockWEG595.08952.34 @ 1
thumbzoomNational Supply NetworkB8811408972.961In StockWeg Electric Motors8972.96 @ 1
thumbzoomRaptor SuppliesAE8UHU11877.44167351In StockWEG11877.4416735 @ 1
