AIGNEP USA 60000-10-1/4

mpn60000-10-1/4
brandname: AIGNEP USA
manufacturername: AIGNEP USA

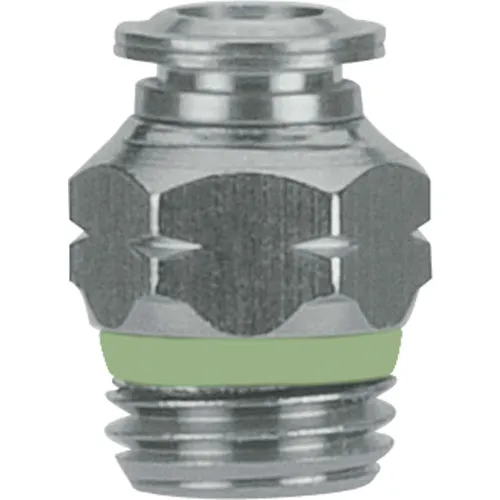

AIGNEP USA 60000-10-1/4 Push-in Fittings, Straight Male Connector, Stainless Steel, 10 mm Tube x 1/4" BSPT Thread

Brand: AIGNEP USA
PartNumber: 60000-10-1/4
Model: 60000-10-1/4
Size: 10 millimeters
PackageQuantity: 1
Binding: Misc.
Manufacturer: AIGNEP USA
Label: AIGNEP USA

Attributes

Key	Value
Application	Air
Basic Material	Stainless Steel
Body	Stainless Steel
Body Color	Silver
Body Material	Stainless Steel
Brand Name	AIGNEP
Brand Part Number	60000-10-1/4
Color	Silver
Compatible Tube Material	Copper, Nylon, Polyethy.
Compliance	EN331, REACH, ROHS
Connection (A)	10mm Tube
Connection (B)	1/4" BSPT Male
Connection Type	Tube x BSPT
Country of Origin (subj.	Italy
End Connection Type	Push-to-Connect, Thread.
Fitting Body Material	316L Stainless Steel
Fitting Material	Stainless Steel
Fitting Pipe Size	1/4 in
Fitting Shape	Adapter
Fitting Side A Connecti.	Push-to-Connect
Fitting Side A Tube Out.	10 mm
Fitting Side B Connecti.	Universal
Fitting Side B Pipe Size	1/4 in
Fitting Thread Size	1/4-19
Fittings Sub-Category	Connectors
For Tube OD	10 mm, 10mm
For Tube Outside Diamet.	10 mm
Gasket Material	PTFE/FKM
Gripping Ring Material	316L Stainless Steel
Hex Size	43/64 in
Includes Pre-Applied Th.	Yes
Item	Male Connector
Material	Stainless Steel
Material Grade	316L
Max. Pressure	250 psi
Maximum Operating Press.	290 psi
Maximum Operating Tempe.	392 Degrees F
Media	Compressed Air Fluid fo.
Minimum Operating Tempe.	5 Degrees F
O-Ring Material	Viton
Pipe Size	1/4 in BSPT, 1/4"
Pipe Thread Material	Stainless Steel
Pipe Thread Type	BSPT Male
Pressure Rating	Vacuum-290 PSI
Release Ring Material	PTFE/FKM
Ring Release Color	Silver
Ring Release Material	Stainless Steel
Shape	Straight
Style	Male Straight
System of Measurement	Imperial/Metric
Temp. Range	5 Degrees to 437 Degre.
Temperature Range	5 ? F - 392? F
Thread Seal	FKM
Thread Sealant Type	FKM
Tube Size	10mm
Tubing Compatibility	Nylon, Polyethylene, Po.
Working Pressure	290 psi
