- mpnCMC2-2
- brandname: Altech Corp
- manufacturername: Altech Corp

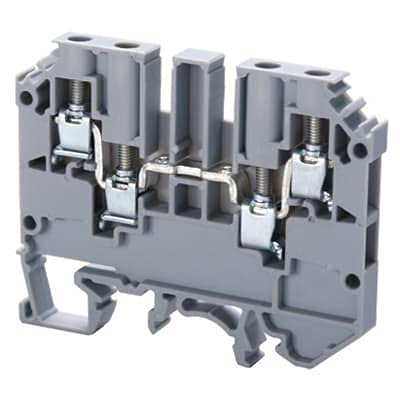

Altech Corp Cmc2-2 6pack ?40007-70077240?
- Brand: Altech Corp
- PartNumber: CMC2-2
- Model: CMC2-2
- PackageQuantity: 1
- Manufacturer: Altech Corp
- Label: Altech Corp
Attributes
| Key | Value |
|---|
| Agency Approvals | cULus ; cCSAus ; VDE |
| Approvals | CSA, UR |
| Category | Connectors, Interconnec. |
| Clamp Type | Screw |
| Color | Gray |
| CSA Current | 35 A |
| CSA Voltage | 600 VAC |
| Current - IEC | 32A |
| Current - UL | 35A |
| Current Rating | 35 A |
| Dimensions | 65 L x 51.5 H mm |
| Dimensions (HxWxL) | 51.5 x 6 x 65 mm |
| Disconnect Type | - |
| Family Series | Altech Terminal Blocks,. |
| Features | - |
| Fuse Size | N/A |
| Fuse Type | - |
| Gross Weight | 0.035 lbs |
| Ground Connection | No |
| Indicator | None |
| Item Number | CMC2-2 |
| Level | Single Level |
| Manufacturer | Altech |
| Manufacturer Part Number | CMC2-2 |
| Material | Polyamide 66, Polyamide. |
| Material - Insulation | Polyamide (PA66), Nylon. |
| Material Flammability R. | - |
| Max CSA Wire Size (AWG) | 22 AWG |
| Max UL Wire Size (AWG) | 22 AWG |
| Mfr | Altech Corporation |
| Mounting Size | 32/35 mm |
| Mounting Type | DIN Rail Mount, DIN Rail |
| Multi-Connection | Yes |
| Net Weight | 0.035 lbs |
| Number of Circuits | 2 |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Pack Size | 50 |
| Part Status | Active |
| Partition | No |
| Pin Spacing | 6 mm |
| Primary Type | DIN Rail Mount |
| Product Series | Multi Connection |
| RoHS | Yes |
| Sensor Block Indicator | None |
| Series | CMC Series, - |
| Spacing | 6 mm |
| Stackable Clip-On | No |
| Standards | CE, Ex, UL, CSA, IEC |
| Stripping Length | 9mm |
| Terminal - Width | 6.0mm |
| Terminal Level | Single |
| Terminal Width | 6 mm |
| Termination | Screw |
| Termination Style | Screw |
| Test Socket(s) | No |
| Torque | 7 lb/in |
| Type | Feed Through, Feed-Thro. |
| UL Current | 35 A |
| UL Voltage | 600 V, 600 VAC |
| UL Wire Size | 22-10 AWG |
| Voltage - IEC | 630V |
| Voltage - UL | 600V |
| Voltage Rating | 600 V |
| Wire Entry Position | Side |
| Wire Gauge or Range - A. | 10-22 AWG |
| Wire Gauge or Range - m. | 0.2-4mm? |
| Wire Size | 10 to 22 AWG |
| Wire Termination Type | Screw |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Solutions Direct | CMC2-2 | 1.44 | 1 | 69 | | Altech Corp. | | 1.44 @ 1 |
| Hawk Electronics | CMC2-2 | 1.55 | 25 | 64 | | Altech | | 1.55 @ 25 |
| Onlinecomponents.com | CMC2-2 | 1.69 | 1 | 491 | | ALTECH | | 1.69 @ 1 |
 | Galco | CMC2-2-ALTH | 1.69 | 50 | 98 | | Altech | 0.035 | 1.69 @ 50 |
 | Carlton Bates Company | 78039197910 | 1.83 | 1 | 69 | | ALTECH CORP | | 1.83 @ 1 |
| Future Electronics | 8490328 | 1.872 | 1 | 220 | | Altech Corporation | | 1.872 @ 1 |
| jensentools.com | 10120245 | 2.02 | 1 | 69 | | Altech | | 2.02 @ 1 |
 | Digi-Key | 1920-1256-ND | 2.63 | 1 | 69 | | Altech Corporation | | 2.63 @ 1 |
| us.rs-online.com | 70077240 | 3.09 | 1 | 1725 | | Altech Corp | | 3.09 @ 1 |
| Newark | 64AH2153 | 3.53 | 16 | 28 | | ALTECH | | 3.53 @ 1 |
| Amazon | B007UU4TA0 | 16.4 | 1 | 69 | | ALTech | | 16.4 @ 1 |
| AmazonTP | B07QSCKFXY | 44.0 | 1 | 69 | 2 | Altech | | 44.0 @ 1 |
| AmazonSC | B07QSCKFXY | 91.08 | 1 | 69 | | ALTech | | 91.08 @ 1 |
