TT11DGRA1

mpn3-1437561-8
brandname: AMP - TE CONNECTIVITY
manufacturername: AMP - TE CONNECTIVITY

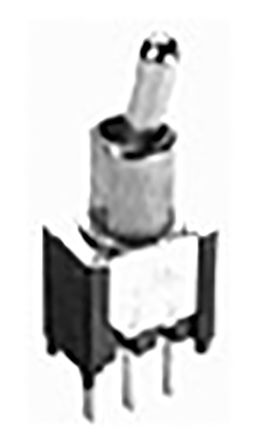

SWITCH TOGGLE SPDT 0.4VA 20V (1 piece)

SWITCH TOGGLE SPDT 0.4VA 20V (1 piece)

zoom

PartNumber: TT11DGRA1
PackageQuantity: 1
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Actuator Finish	Gold
Actuator Length	5.61mm
Actuator Material	Brass Alloy, Stainless .
Actuator Type	Bat
Alternate Mfr Part Numb.	3-1437561-8
Application	Industrial machinery an.
Body Material	Thermoplastic
Body Style	Right Angle
Brand	TE Connectivity
Bushing Style	Unthreaded
Configuration (Pole-Thr.	Single Pole - Double Th.
Contact Base Material	Gold
Contact Configuration	SPDT
Contact Form	SPDT
Contact Material	Gold over Nickel, Brass.
Contact Plating	Gold over Nickel
Contact Resistance	20 mOhms, 20m?
Current Rating	0.02 A
Dielectric Strength	1000 VAC
Dielectric Strength (VA.	1000
Insulation Resistance	1000 MegaOhms
Insulation Resistance (.	1000
Maximum Operating Tempe.	+85?C, +85 ?C
Minimum Operating Tempe.	-30 ?C, -30?C
Mounting Hole Size	0.043 in
Mounting Type	Panel Mount, Through Ho.
Number of Poles	1
Number of Positions	2
Operating Function	On None On
Operating Temperature R.	-30 +85?C
Operation	ON-ON
Package Quantity	1
Panel Cut Out Diameter	4.5mm
Panel Cut Out Size	4.5 Dia.mm
Process Sealed	No
Product Type	Switch
Seal Type	Terminal Seal (Epoxy), .
Sealed	Yes
Series	TT Series
Standards	UL Listed
Stock	Stock
Switch Operation	Latching
Switch Type	Toggle
Terminal Type	Through Hole
Termination	PCB Pins
Termination Type	Right Angle
Toggle Actuation	Horizontal
Toggle Length	5.61 mm [ .221 in ]
Toggle Style	Baton Short
Type	Toggle
UL Flammability Rating	UL 94V-0
UL/CSA Current Rating (.	3
Voltage Rating	20 VDC, 20 V ac, 20 V d.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier

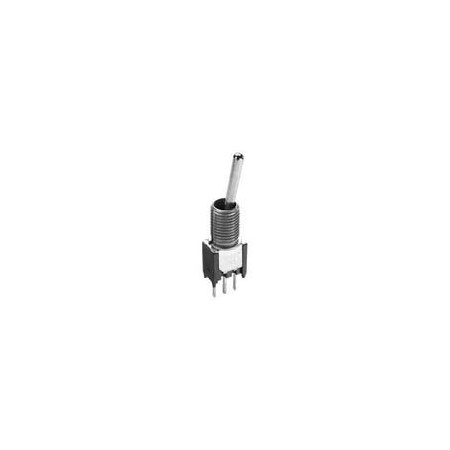

	Waldom	TE CONNECTIVITY AMP BRAND 3-1437561-8	5.23	15	100		TE CONNECTIVITY/AMP BRAND		5.23 @ 15
	Verical	TT11DGRA1	5.76	6	158		TE Connectivity		5.76 @ 6
	us.rs-online.com	70155865	6.56	500	In Stock		TE Connectivity		6.56 @ 500
	Onlinecomponents.com	3-1437561-8	6.85	25	79		TE Connectivity		6.85 @ 1
	Newark	75AC7982	7.54	250	53		AMP - TE CONNECTIVITY		7.54 @ 250
	Digi-Key	14693984	7.82	15	In Stock		TE Connectivity ALCOSWITCH Switches		7.82 @ 15
	Zoro	G300968434	98.25	15	In Stock		Alcoswitch		98.25 @ 15
	RS Delivers	875-0652	3186.54	1	In Stock		TE Connectivity		3186.54 @ 1
