BRIDGELUX BXRH-27H0600-A-73

B07M85S4NW

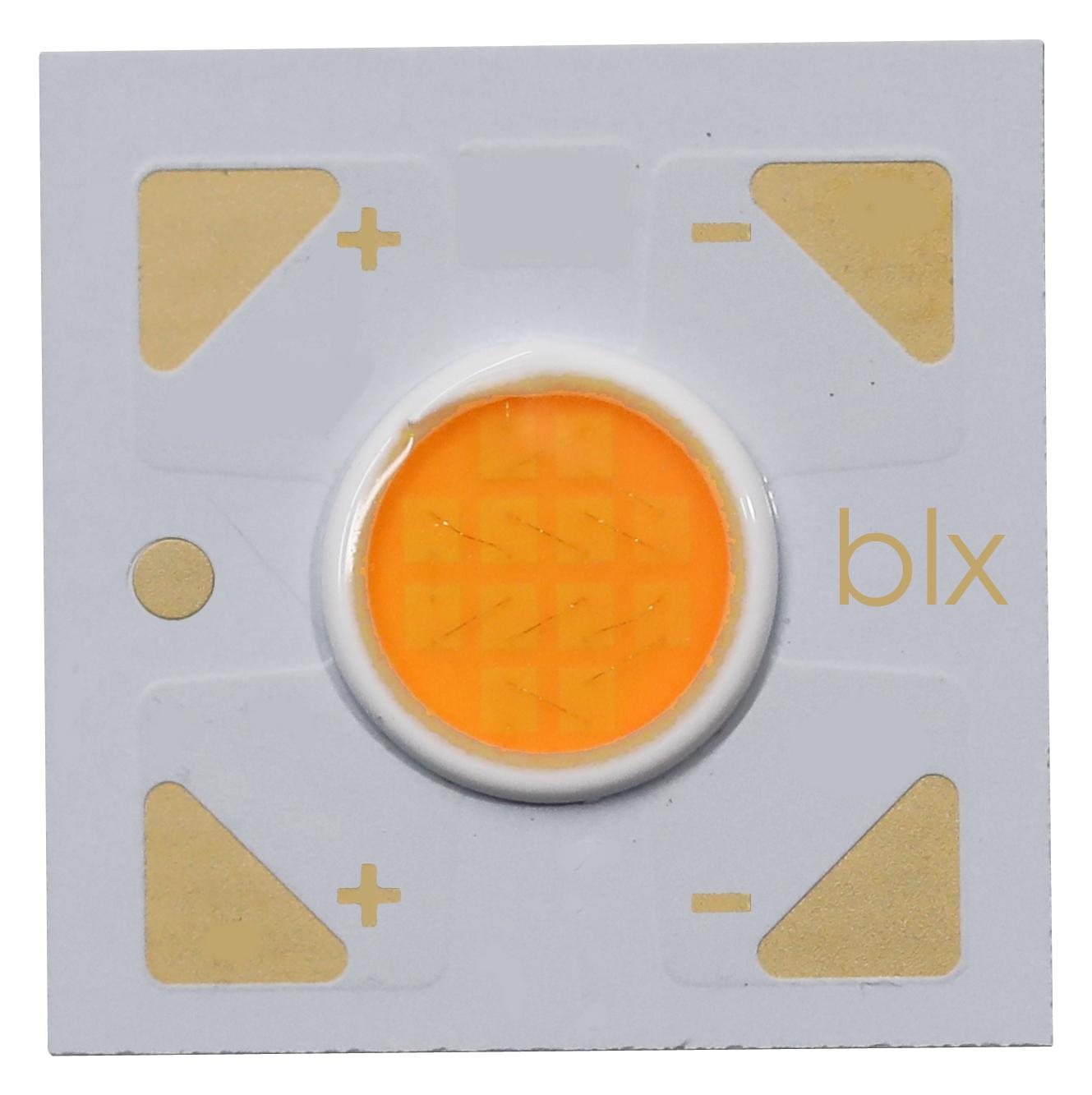

BXRH-27H0600-A-73, Chip On Board LED Lighting Module (25 Items)

BXRH-27H0600-A-73, Chip On Board LED Lighting Module (25 Items)zoom

Attributes

Key Value
Base Product NumberBXRH-27
CategoryOptoelectronics
CCT (K)2700K 3-Step MacAdam El.
ColorWhite, Warm
ConfigurationSquare
CRI (Color Rendering In.97 (Typ)
Current - Max240mA
Current - Test175mA
DescriptionLED COB V4 HD WARM WHT .
Detailed DescriptionLED Lighting COBs Engin.
Digi-Key Part NumberBXRH-27H0600-A-73-ND
Features-
Height1.63mm
Lens TypeFlat
Light Emitting Surface .5.20mm Dia
Lumens/Watt @ Current -.76 lm/W
Luminous Flux @ Current.471lm (Typ)
ManufacturerBridgelux
Manufacturer Product Nu.BXRH-27H0600-A-73
Manufacturer Standard L.6 Weeks
MfrBridgelux
PackageTray
Product StatusActive
SeriesGen 7 V4 HD LED Array
Size / Dimension12.50mm L x 12.50mm W
Temperature - Test85?C
TypeChip On Board (COB)
Viewing Angle120?
Voltage - Forward (Vf) .35.4V
Wavelength-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key85367331.0460025Bridgelux1.04 @ 600
thumbzoomNewark06AH40752.241188BRIDGELUX2.24 @ 25
