- mpnC22728
- brandname: CLE-LINE
- manufacturername: CLE-LINE

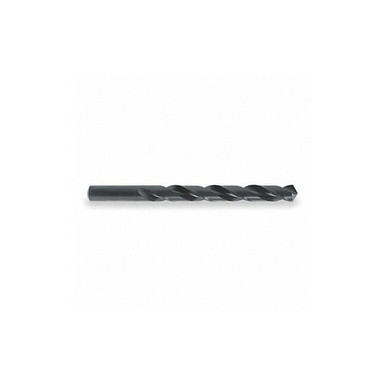

Jobber Bit, K, High Speed Steel
- Brand: Cle-line
- PartNumber: C22728
- Model: C22728
- PackageQuantity: 1
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 97 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2810 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2810" |
| Diameter (Wire/Let) | K |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | K |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0000 in |
| Drill Size - Decimal In. | 0.281 in |
| Drill Size - Letter | K |
| Drill Size System | Letter |
| Drill Style | Jobber Drill |
| Finish | Tin, Black Oxide |
| Flute Length | 2-15/16 in, 2 15/16 in,. |
| Flute Length (Metric) | 74.61mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 2 3/16 in |
| Mpn | C22728 |
| Number of Flutes | 2 |
| Overall Length | 4 1/4 in, 4-1/4 in, 4.2. |
| Overall Length (Metric) | 107.95mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 17/64 in |
| Shank Length | 1 5/16 in, 1.3125" |
| Shank Length (Metric) | 33.34mm |
| Shank Size | 0.2810", 0.281 in Dia x. |
| Shank Size (Metric) | 7.14mm |
| Shank Type | Straight |
| SKU | ZO-G0718767 |
| Style | 1899 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | K |
| UPC | 697334227281 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545219 | 2.47 | 12 | 12 | | Cle-Line | | 2.47 @ 12 |
 | Zoro | G0718767 | 2.99 | 1 | 131 | | Cle-Line | 0.05 | 2.99 @ 12 |
 | MRO Supply | 6124321 | 3.08 | 17 | 12 | | Cle-Line | | 3.08 @ 17 |
 | Megadepot | C22728 | 3.09 | 1 | 12 | | Cle-Line | | 3.09 @ 12 |
 | usmegastore.com | C22728 | 3.09 | 1 | 12 | | Cle-Line | | 3.09 @ 12 |
 | heavydutydepot.com | C22728 | 3.14 | 32 | 12 | | Cle-Line | | 3.14 @ 32 |
 | Raptor Supplies | AD7KXG | 4.1230215 | 1 | 12 | | CLE-LINE | | 4.1230215 @ 12 |
 | sustainablesupply.com | C1465168 | 4.4 | 1 | 12 | | Cle-Line | 0.05 | 4.4 @ 12 |
 | simsupply.com | ZO-G0718767 | 9.63 | 1 | 97 | | Cle-Line | | 9.63 @ 12 |
| AmazonSC | B000LEL0DG | 11.01 | 1 | 12 | | Cle-line | | 11.01 @ 12 |
