- mpnC24331
- brandname: Cle-Line
- manufacturername: Cle-Line

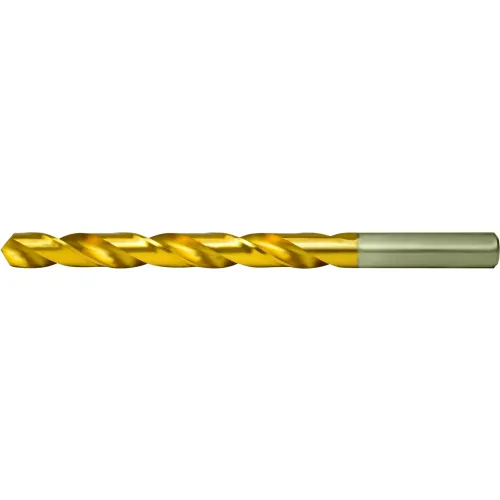

Cle-Line C24331 General Purpose Jobber Length Drill, High Speed Steel, TiN Finish, Straight Shank, 118-Degree Radial Point, 2.50 mm Drill Diameter (Pack of 12)
- Brand: Cle-line
- PartNumber: C24331
- Model: C24331
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | United States |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.0984 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0984" |
| Diameter (Metric) | 2.50mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | TiN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 2.50 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0296mm |
| Drill Size - Decimal In. | 0.0984 in |
| Drill Size - Metric | 2.5 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | TiN Coated |
| Finish - Machining | TiN |
| Flute Length | 1.1811", 30 mm, 30.00 mm |
| Flute Length (Metric) | 30.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 25/64 in |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 2.2441", 57.00 mm, 57 mm |
| Overall Length (Metric) | 57.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Cast Iron, St. |
| Primary Material Applic. | K, N, P |
| Series | 1898-TN, 1898T |
| Shank Configuration | Straight |
| Shank Dia. | 2.5 mm |
| Shank Length | 27 mm, 1.0630" |
| Shank Length (Metric) | 27.00mm |
| Shank Size | 2.5 mm Dia x 27 mm L, 0. |
| Shank Size (Metric) | 2.50mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M, DIN 338 |
| Style | 1898T |
| Surface Condition | TiN |
| Through Coolant (Yes/No) | No |
| Tool Size | 2.50mm, 2.5mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C24331 | 1.92 | 1 | 12 | | Cle-Line | | 1.92 @ 12 |
 | heavydutydepot.com | C24331 | 1.92 | 53 | 12 | | Cle-Line | | 1.92 @ 53 |
 | Global Industrial | WBB2545709 | 2.1326 | 12 | 12 | | Cle-Line | | 2.1326 @ 12 |
 | usmegastore.com | C24331 | 2.35 | 1 | 12 | | Cle-Line | | 2.35 @ 12 |
 | Zoro | G4943596 | 2.48 | 12 | 12 | 10 | Cle-Line | 0.63 | 2.48 @ 12 |
 | MRO Supply | 6125215 | 2.58 | 20 | 12 | | Cle-Line | | 2.58 @ 20 |
