Cle-line C24336

mpnC24336
brandname: Cle-Line
manufacturername: Cle-Line

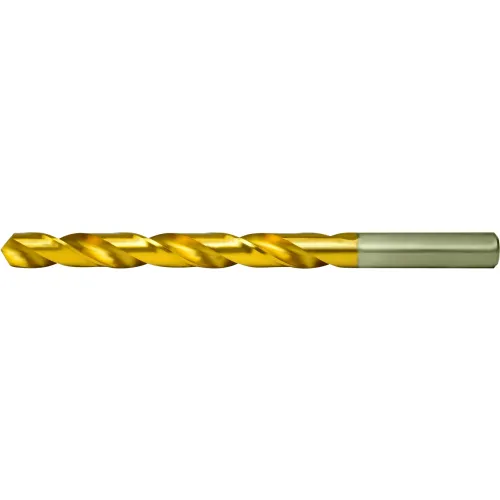

Cle-Line C24336 General Purpose Jobber Length Drill, High Speed Steel, TiN Finish, Straight Shank, 118-Degree Radial Point, 3.10 mm Drill Diameter (Pack of 12)

Cle-Line C24336 General Purpose Jobber Length Drill, High Speed Steel, TiN Finish, Straight Shank, 118-Degree Radial Point, 3.10 mm Drill Diameter (Pack of 12)

zoom

Brand: Cle-line
PartNumber: C24336
Model: C24336
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Coolant Fed	Non-Coolant Through
Cutting Direction	Right Hand
Decimal Equivalent	0.1220
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.1220"
Diameter (Metric)	3.10mm
Drill Bit Dimension Type	Metric
Drill Bit Finish	TiN
Drill Bit Grouping	Drill Bit
Drill Bit Point Angle	118 Degrees
Drill Bit Size	3.10 mm
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in/-0.0005 in
Drill Length Class	Jobber Length
Drill Point Length	0.0367mm
Drill Size System	Metric
Drill Style	Jobber Drill
Flute Length	36.00mm, 1.4173"
Flute Length (Metric)	36.00mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	21 Degrees to 34 Degre.
Item	Jobber Length Drill Bit
Material	HSS
Maximum Drilling Depth	1 1/16 in
Measurement System	Metric
Number of Flutes	2
Overall Length	2.5591", 65.00mm
Overall Length (Metric)	65.00mm
Point Angle	118?
Point Style	Radial
Primary Material Applic.	Aluminum, Cast Iron, St.
Shank Configuration	Straight
Shank Dia.	3.1 mm
Shank Length	1.1418", 29 mm
Shank Length (Metric)	29.00mm
Shank Size	0.1220"
Shank Size (Metric)	3.10mm
Standards	DIN 338
Style	1898T
Surface Condition	TiN
Tool Size	3.10mm, 3.1mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Global Industrial	WBB2545728	2.46	12	12		Cle-Line		2.46 @ 12
	usmegastore.com	C24336	2.54	1	12		Cle-Line		2.54 @ 12
	Megadepot	C24336	2.56	1	12		Cle-Line		2.56 @ 12
	heavydutydepot.com	C24336	2.56	40	12		Cle-Line		2.56 @ 40
	MRO Supply	6125220	2.87	18	12		Cle-Line		2.87 @ 18
	Zoro	G4943541	34.68	1	12		Cle-Line	0.49	34.68 @ 12
