CLEVELAND C08738

B00075EMQQ

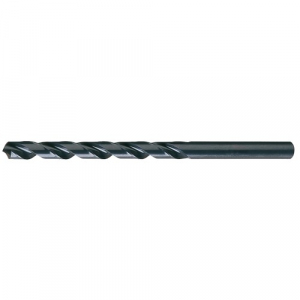

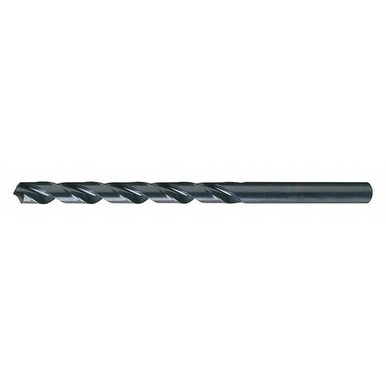

Cleveland C08738 High-Speed Steel General Purpose Taper Length Drill Bit, Steam Oxide Finish, Round Shank, Spiral Flute, 118 Degrees Radial Point, 6mm Size (Pack of 10)

Cleveland C08738 High-Speed Steel General Purpose Taper Length Drill Bit, Steam Oxide Finish, Round Shank, Spiral Flute, 118 Degrees Radial Point, 6mm Size (Pack of 10)zoom

Attributes

Key Value
Applicable MaterialsAlloy Steel, Carbon Ste.
ApplicationFor Stainless Steel, To.
BrandCleveland
Coolant FedNon-Coolant Through
Coolant ThroughNo
Country of Origin (subj.United States
Current Stock47
Cutting Depth91 mm
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Decimal Equivalent0.2362
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Drill Bit Dimension TypeMetric
Drill Bit FinishBlack Oxide
Drill Bit GroupingDrill Bit
Drill Bit MaterialHigh Speed Steel
Drill Bit Point Angle118 Degrees
Drill Bit Point TypeConventional Point
Drill Bit Size6.00 mm
Drill Diameter Tolerance+0.0000 in /-0.0007 in
Drill Length ClassTaper Length
Drill Point Length0.071 mm
Drill Size - Decimal In.0.2362 in
Drill Size - Metric6 mm
FinishSteam Oxide
Finish - MachiningBlack Oxide
Flute Length91.00 mm, 91 mm
Flute TypeSpiral
GradeGeneral Purpose
Helix Angle21 Degrees /34 Degrees
International ShippingNo
ItemTaper Length Drill Bit
Lead TimeExpected to ship in 1-2.
List Number2510
MaterialHSS
Material - MachiningHigh Speed Steel
Material Grade - Machin.General Purpose
Maximum Drilling Depth91.00 mm
Measurement SystemMetric
MpnC08738
Number of Flutes2
Overall Length139.00 mm, 139 mm
Point Angle118 deg
Point TypeRadial
Primary Material Applic.Cast Iron, Steel
Primary Material Applic.K, P
Series2510
Shank Dia.6.00 mm
Shank Length48.00 mm
Shank Size6 mm
Shank TypeStraight
Shank Type - MachiningStraight
Sizes Included6.00mm
SKUZO-G2995577
Spiral DirectionRight Hand
StandardsDIN 340
SubCategoryMachining
TypeGeneral Purpose
UPC697334087380

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply61100177.72510Cleveland7.72 @ 10
thumbzoomusmegastore.comC087388.03110Cleveland8.03 @ 10
thumbzoomZoroG299557710.0191Cleveland0.510.0 @ 10
thumbzoomsustainablesupply.comC297501010.83110Cleveland0.0510.83 @ 10
thumbzoombscsource.comC0873813.19110Cleveland13.19 @ 10
thumbzoomNational Supply Network6372345614.849110Cleveland14.849 @ 10
thumbzoomsimsupply.comZO-G299557715.62147Cleveland15.62 @ 10
thumbzoomGuardian6372345617.31110Cleveland17.31 @ 10
