Fill-Rite FR152

B000BPBVFW

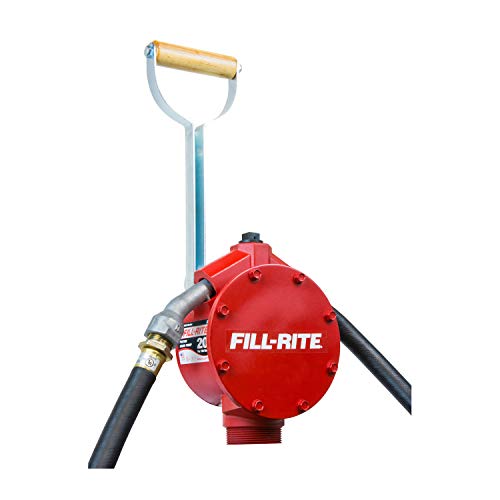

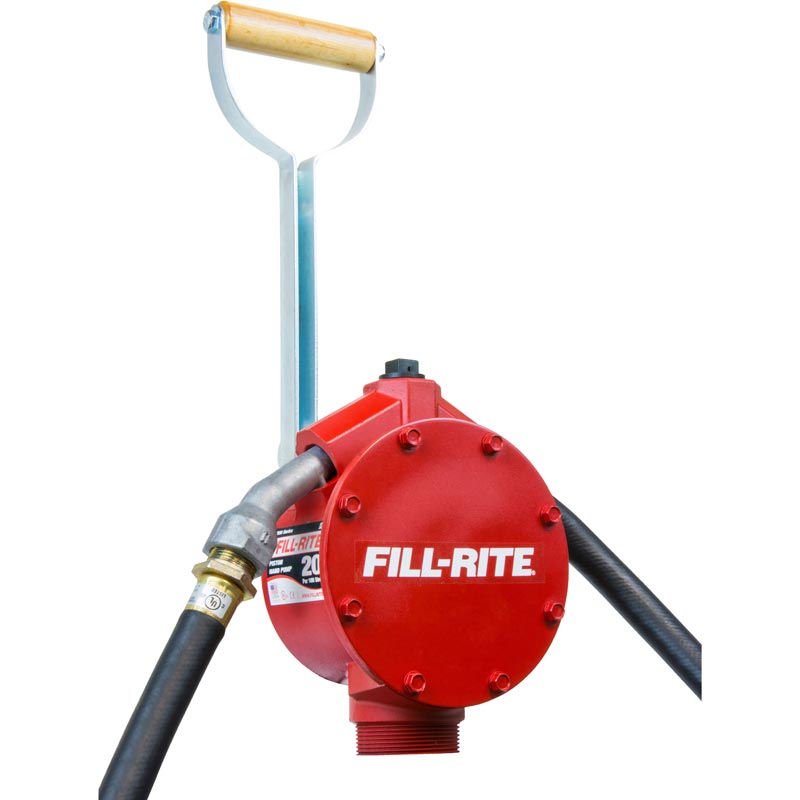

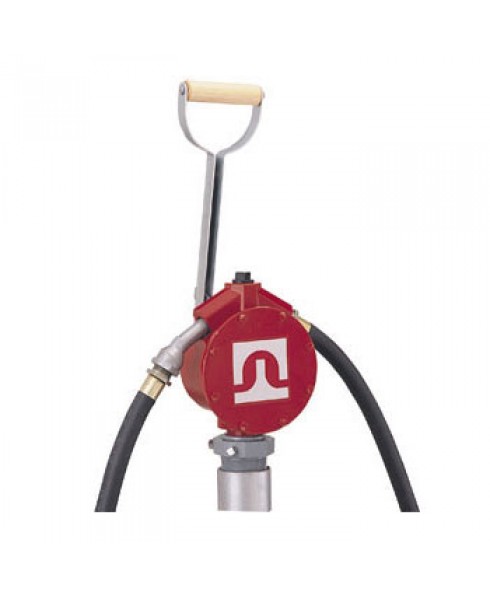

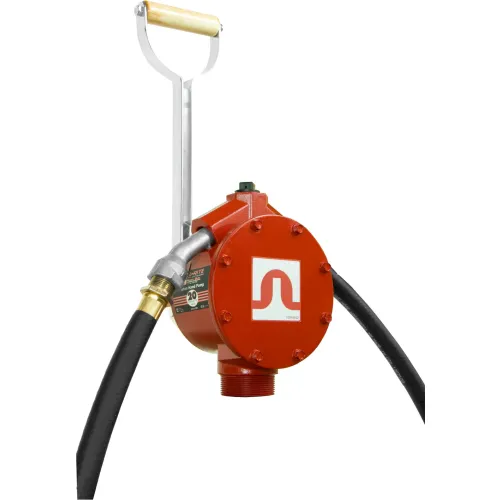

Fill-Rite FR152 Piston Hand Pump with Hose & Nozzle Spout, Red

Fill-Rite FR152 Piston Hand Pump with Hose & Nozzle Spout, Redzoom

Attributes

Key Value
Action TypePiston
Adapter Connection TypeMNPT
Adapter MaterialAluminum
Adapter Type2" Bung
Agency ComplianceUL/cUL, UL Listed
Applicable MaterialFuels; Oils
ApplicationTo Transfer Gasoline, D.
Assembly RequiredNo assembly is required
BrandFill-Rite
Bung Connection Dia.2 in
Carton Pack Quantity1 EA
CompatibilityMedium Viscosity Liquid.
Compatible ChemicalsAntifreeze (Coolant), A.
Construction MaterialAluminum Body
Contains Recycled Mater.N
Country of OriginUS
Country of Origin (subj.United States
Description:FR152 FILL-RITE PISTON .
Diesel Exhaust Fluid Co.No
Dimensions6-1/2 in W x 8 in H
Discharge Connection Ty.FNPT
Discharge Tube Outlet ID3/4 in
Discharge Tube Outlet OD7/8 in
FeaturesPiston Action, Flow Dir.
Finish/ColorRed/Steel
Flow20 gpm
Flow Rate20 gal/100 Strokes
Food GradeNo
For Container Size55 gal
For Container TypeDrum
For Media TypeAntifreeze, Automatic T.
For Use WithIdeal for Gasoline, Die.
Fuel TypeDiesel / Gas
Gallons Per 100 Strokes20
Gear LubeNT
Global Product TypeWater/Solvent/Fuel Pump.
GPM20
GreaseNT
Green ProductN
Height8", 8, 9
Height Above Container19 1/2 in
Hose Cover MaterialNeoprene
Hose Dia.5/8"
Hose Inside Dia.3/4 in
Hose Length96 in
Hose Outside Dia.7/8 in
Hose Size3/4-Inch x 8-Foot
Hose Tube MaterialNitrile
Hose-End Spout Size (in.3/4
Housing MaterialCast Aluminum, Aluminum.
Housing Material - PumpsAluminum
Includes5/8 in x 8 ft. Hose wit.
Includes Bung AdapterYes
Includes Discharge HoseYes
Includes NozzleYes
Includes SpoutYes
Includes Suction TubeYes
Inlet Size1 in FNPT, 1"
InternalL1.00R0.00
ItemHand Operated Drum Pump
Item Weight14.128
Length24, 8
ManufacturerFill-Rite
Manufacturer NameFill-Rite By Tuthill
Manufacturer Stock No.FR152
Manufacturers Warranty .2 yr.
Max. Flow GPM20 gpm
Max. Flow Rate25 oz per stroke
Max. Fluid Temp.150 Degrees F
Max. Head - Pumps6 ft
Max. Head Pressure50 psi
Max. Oil Flow25 oz per stroke
Max. Outlet Pressure50 psi
Max. Viscosity1,500 SUS
MeteredNo
MFG Part #:FR152
MFRFR152
Min. Operating Temp.0 Degrees F
ModelFR152
Model#FR152
MPNFR152, FLLFR152
Not Recommended Chemica.Acetic Acid (Glacial), .
Nozzle MaterialAluminum
Nozzle OperationManual
On Hand:In Stock - Available fo.
Operating PrincipleDisplacement
Outlet Size3/4" FNPT, 3/4", 3/4 in.
Overall Height8"
Overall Length19"
Overall Width6-1/2"
Piston MaterialAluminum
Post-Consumer Recycled .0%
PowerManual
Power SourceHand Operated
Pre-Consumer Recycled C.0%
Product TypeSimple product
Pump Body MaterialAluminum
Pump Connection ID2 in
Pump Connection OD2 1/8 in
Pump DesignDual Piston Action
Pump Package TypeUnmetered Dispensing wi.
ReturnableNo
Runs DryYes
Seal MaterialBUNA-N
Self-PrimingYes
Series5200, 5200 SERIES, PIST.
Shipping Height8.5 in.
Shipping Length24 in.
Shipping Weight13.80 lb.
Shipping Width9 in.
Ships via UPSY
SKU41402281, 11250754, FR1.
SpecificationsDesigned for gasoline, .
StandardsUL Listed
Steel Telescoping Pipe .20 - 34-3/4
StylePiston Hand
Suction Tube ID1 in
Suction Tube Length20 in to 34-3/4 in
Suction Tube MaterialSteel
Suction Tube OD1 in
Supplier:Fill-Rite
TAA CompliantYes
This item is sold by theEA
Total Recycled Content .0%
Transfer Pump Applicati.Construction, Farming
TypeFuel, Piston Action, He.
Unit of MeasureEA
UNSPSC Code0
UNSPSC Number31162906
UPC089404004289, 894040042.
UPC Code089404004289
UPC:089404004289
Viscosity1500 SUS
Volume @ Number of Stro.20 gal @ 100
Weight17.0 lb, 15.000000
Wetted Materials301 Stainless Steel, Al.
Width9, 24, 6-1/2"
