Honeywell BE-2RV22-A4

B00DK87IVI

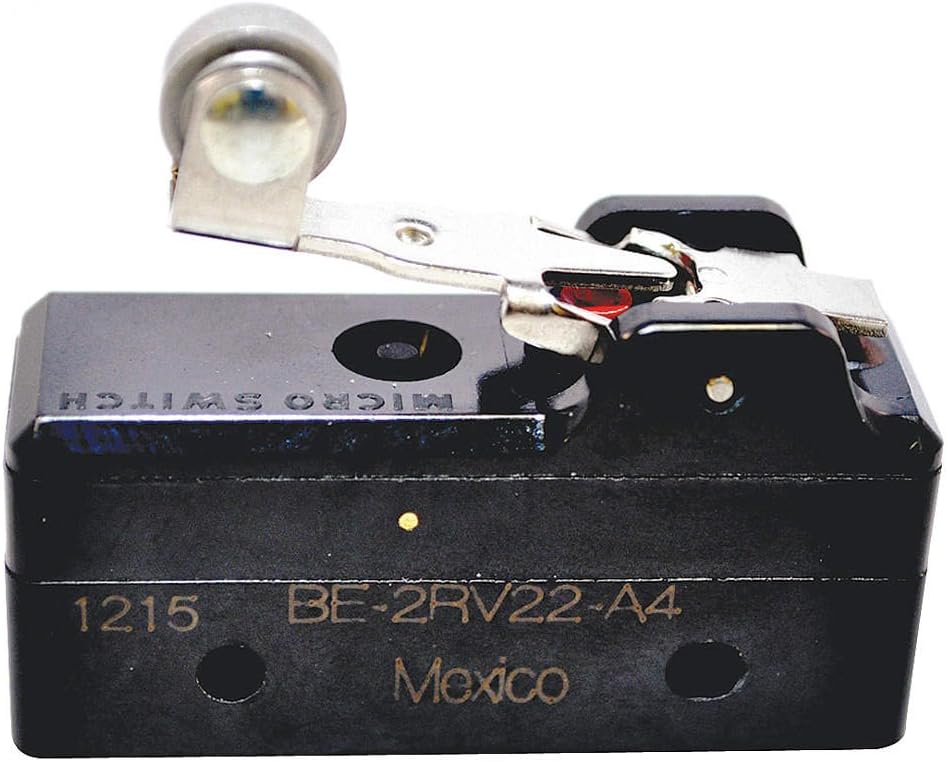

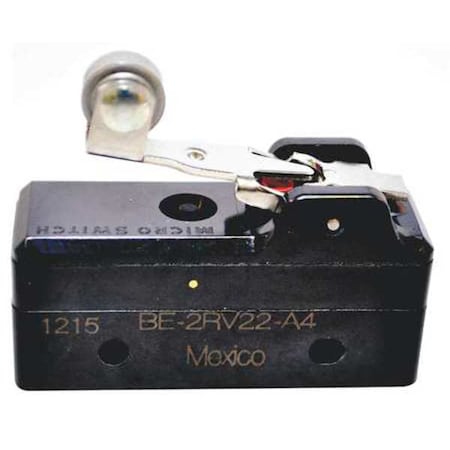

HONEYWELL S&C BE-2RV22-A4 MICRO SWITCH, ROLLER LEVER SPDT 25A 480V

HONEYWELL S&C BE-2RV22-A4 MICRO SWITCH, ROLLER LEVER SPDT 25A 480Vzoom

Attributes

Key Value
AC Contact Rating - Sna.25A @ 480V, 25A @ 480 V
Actuator Length1.05"
Actuator TypeRoller Lever, Lever, Ro.
Actuator Type - Snap Ac.Lever, Roller, Short
ASINB005T5IKOY
Base Product NumberBE-2
Basic Actuator Type - S.Lever
CategorySwitches
CertificationRoHS
CircuitSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Country of Origin (subj.Mexico
Current Rating25A, 25 A
Current Rating (Amps)25A (AC)
DC Contact Rating - Sna.25 A @ 250 V, 25A @ 250V
Depth0.7"
Depth - Snap Action Swi.0.70", 0.7 in
Differential Travel0.045 in, 0.045" (1.1mm.
Electrical Connection -.Screw
Electrical Life-
Family NameBZ Series Family
Features-
Height1.0"
Height - Snap Action Sw.1.00", 1 in
Housing MaterialGeneral Purpose Phenolic
Ingress Protection-
ItemIndustrial Snap Action .
Item model numberBE-2RV22-A4
Item Package Quantity1
Length2.0"
Lever Actuator Length -.1.05 in, 1.05"
Max. Pretravel0.25", 0.25 in
Mechanical Life20,000,000 Cycles
MfrHoneywell Sensing and P.
Mounting Dimension1.00" Centers
Mounting Dimension - Sn.1.00" Centers, 1.00 in .
Mounting TypeChassis Mount
National Stock Number5930-00-028-4215
Number of Circuits - Sn.1
Operating Force170gf, 14.0 to 22.0 oz..
Operating Position1.172" (29.8mm)
Operating Temp. Range-67 Degrees to 185 Deg.
Operating Temperature-55?C ~ 85?C
Over Travel0.03", 0.03 in
Overtravel0.030" (0.76mm)
PackageBulk
Part NumberBE-2RV22-A4
Part StatusActive
Pretravel0.250" (6.35mm)
Release Force1.5 oz, 43gf, 1.50 oz.
SeriesBE, BE Series
Snap Action Switch TypeIndustrial Snap Action .
StandardsUL: E12252; CSA: LR4137.
Switch FunctionOn-Mom
Terminal TypeScrew
TerminationScrew
Termination StyleScrew Terminal
Type of ActuatorShort Roller Lever
Voltage Rating250 V, 250VAC
Voltage Rating - AC125 V
Watertight - Snap Actio.No
Width - Snap Action Swi.2 in, 2.00"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
VericalBE-2RV22-A417.373181Honeywell17.37 @ 3
Mouser785-BE-2RV22-A417.58147Honeywell17.58 @ 1
grainger.caWWG24A02119.219147521In StockHONEYWELL1.019.21914752 @ 1
thumbzoomZoroG453793322.41In Stock1Honeywell0.0822.4 @ 1
Onlinecomponents.comBE-2RV22-A423.01309HONEYWELL23.0 @ 1
AmazonTPB005T5IKOY23.51In Stock2HONEYWELL23.5 @ 1
thumbzoomAmazonB005T5IKOY23.51In StockHoneywell0.123.5 @ 1
thumbzoomsustainablesupply.comC117452825.291In StockHoneywell0.0825.29 @ 1
alliedcontrols.comBE-2RV22-A425.911In StockHoneywell25.91 @ 1
Digi-Key274276029.7719Honeywell Sensing and Productivity Solutions29.77 @ 1
thumbzoomCarlton Bates Company7845491391030.76120HONEYWELL30.76 @ 1
thumbzoomNewark23F505331.69200In StockHONEYWELL31.69 @ 200
thumbzoomRadwellBE-2RV22-A442.050In StockHONEYWELL MICROSWITCH42.0 @ 50
us.rs-online.com7032963943.011180Honeywell43.01 @ 1
thumbzoomkempstoncontrols.co.ukBE-2RV22-A47711.94971In StockHoneywell7711.9497 @ 1
