Hubbell Wiring Device-Kellems CP-89192

B0137HXMRK

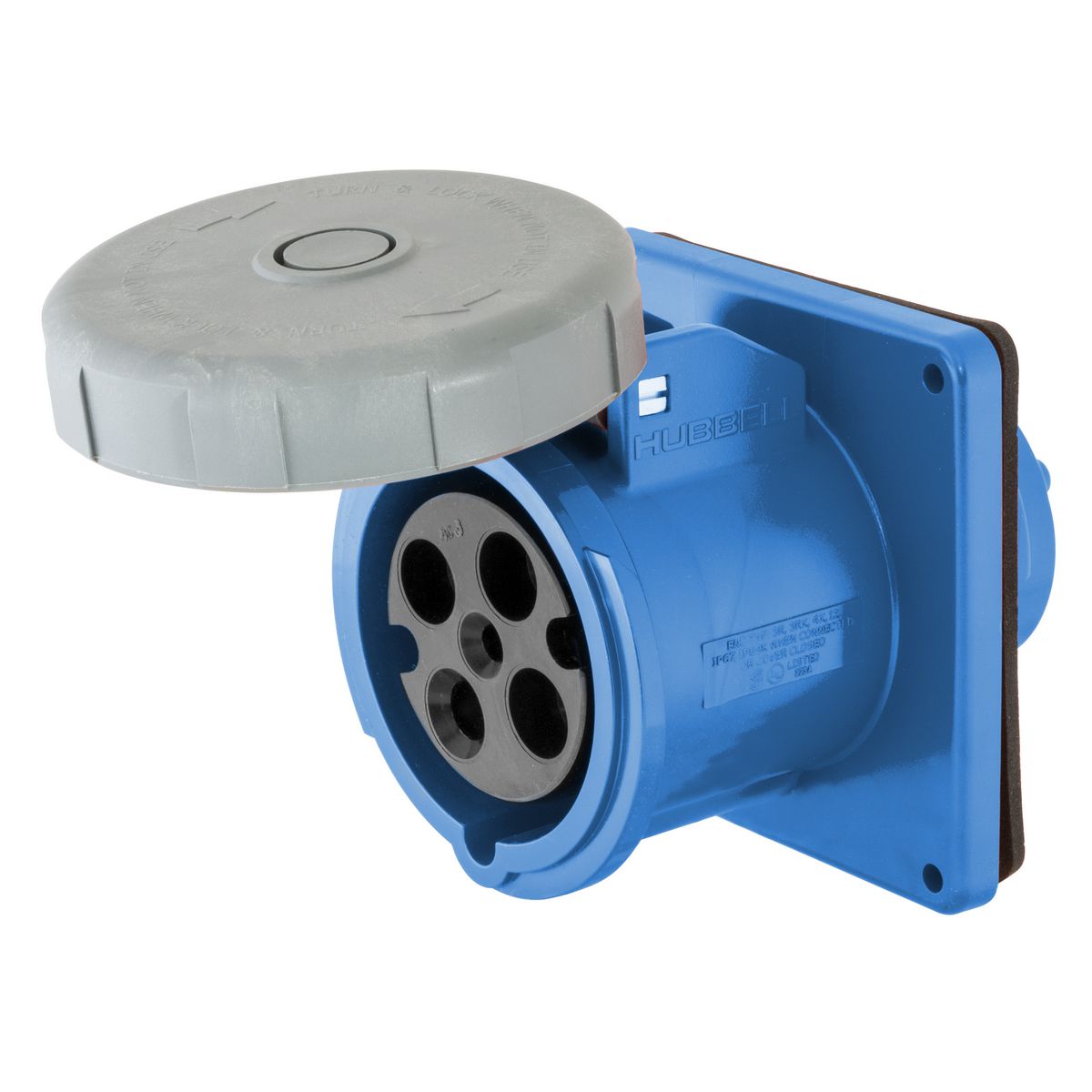

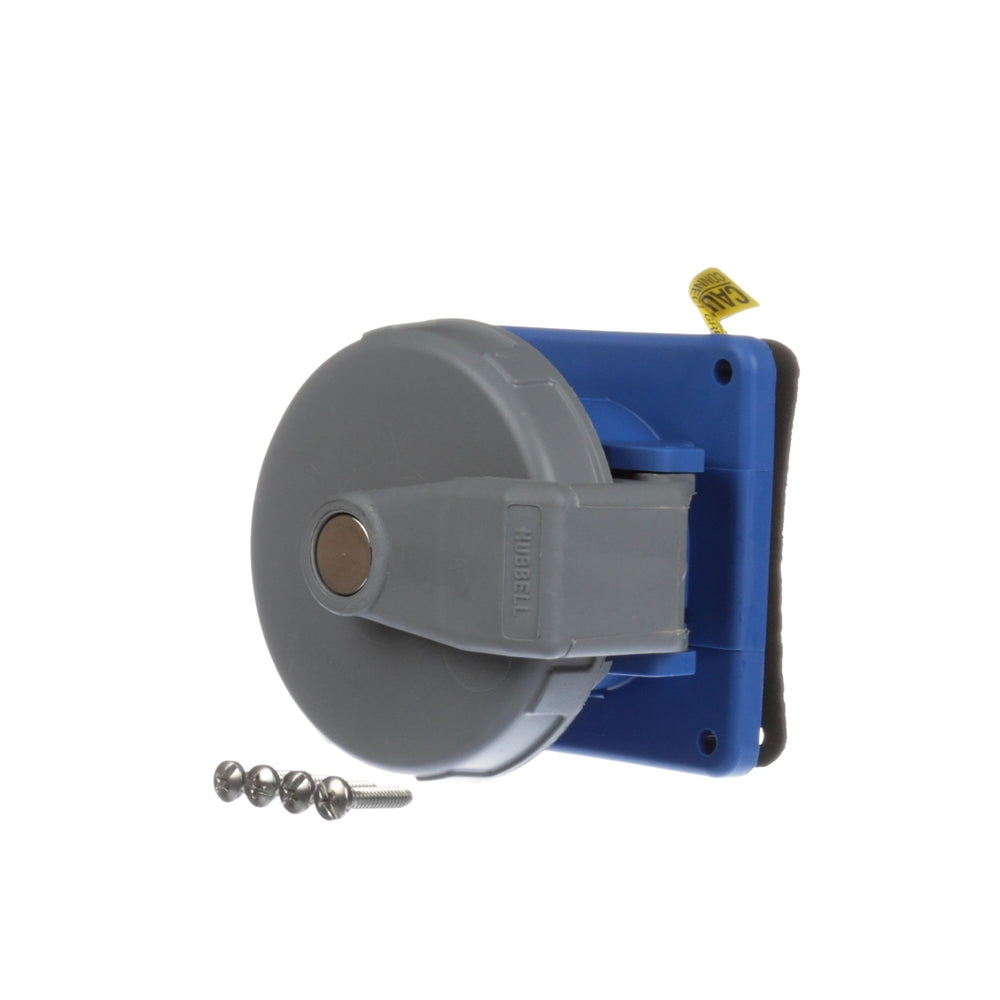

Hubbell HBL430R9W Wiring Device-Kellems Receptacle, 3 P, 4 W

Hubbell HBL430R9W Wiring Device-Kellems Receptacle, 3 P, 4 Wzoom

Attributes

Key Value
Amperage30 A
Amperage Rating30A
Amps30
Amps - Plugs and Recept.30
ApplicationHigh Ampacity Watertigh.
ApprovalsCSA, UL
Aux/Pilot ContactsNone
AWG Range#12 AWG to #8 AWG
Body MaterialZytel 101 Nylon
Body Material - Pin and.Zytel 101 Nylon
BrandHubbell
Built-In Strain ReliefYes
Cap TypeSpring-Loaded Cap
Case MaterialNon-Metallic
ColorBlue
Color - Plugs and Recep.Blue
Color FamilyBlue
Connection DescriptionWater Resistant
Connection OrientationStraight
ConnectivityPressure Terminal Screws
Country of OriginUS - United States
Country of Origin (subj.United States
Current / amperage rati.30 A
Current Rating30 A
Current rating30 A
Current Stock22
Display TypeStandard Sized Product
ECCNEAR99
Environmental conditionsWatertight
Face Diameter3.6 in
Family SeriesHubbell Plugs & Recepta.
FeaturesColor Coded
Flange TypeFlanged
Gross Weight1.3 lbs
GroundingGrounded
Grounding StyleIEC
Horsepower Rating15 hp
Housing ColorBlue
Housing ColourBlue
Housing MaterialThermoplastic
Housing Material GradeZytel 101
Housing Material TypeNon-Metallic
HP3 hp
Hub Type Stand-InStraight
International ShippingNo
IP RatingIP67
ItemWatertight Pin and Slee.
Item - Plugs and Recept.Watertight Pin and Slee.
Item NumberHBL430R9W
Lead TimeExpected to ship in 1-2.
Lockout-TagoutNo
ManufacturerHubbell
Manufacturer Part NumberHBL430R9W
MarketIndustrial
MaterialThermoplastic
Material - mounting har.Screw Mounting
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size8 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size12 AWG
Mounting Box Hub TypeReceptacle Only
MpnHBL430R9W
NEMA Enclosure Rating4X
Nema RatingNon-NEMA
Net Weight0 lbs
No. of Poles3
No. of Wires4
Number of Gangs1
Number of poles3-Pole
Number of Poles3
Number of Poles & Wires3 Pole / 4 Wire
Number of Wires4
Number of wires4-Wire
PhaseThree, Three phase
Phase - Electrical3
Pin & Sleeve StandardsIEC 60309
Pin & Sleeve Standards`IEC 60309
Power Indicating LightNo
Product SeriesIEC Watertight
Rated Voltage250V AC
Resistance PropertiesCorrosion Resistant, Im.
Reverse ServiceNo
ShroudedYes
SKUZO-G2376166
StandardCSA StandardC22.2 No. 1.
StandardsCSA Certified C22.2 No..
StyleStandard Service
SubCategoryElectrical
Switch RatedNo
Temperature Range (F)-40-167 ?F
Terminal TypeScrew
TypeWatertight Receptacle
UL 94 Flammability Rati.HB
UNSPSC39121406
UPC783585404653
Voltage3 Phase 250 VAC, 250 V,.
Voltage - Plugs and Rec.250V AC
Voltage Color CodeBlue
Voltage Rating250V AC, 480V AC
Voltage rating descript.3 Phase 250 VAC
Wattage7500
Wire Connection TypeScrew Terminals
Wire size#12 AWG to #8 AWG
Wire Size10 AWG, 11 AWG, 12 AWG,.
Wire Size Range12-8 AWG
