Jet 354400

B002Q9T5PE

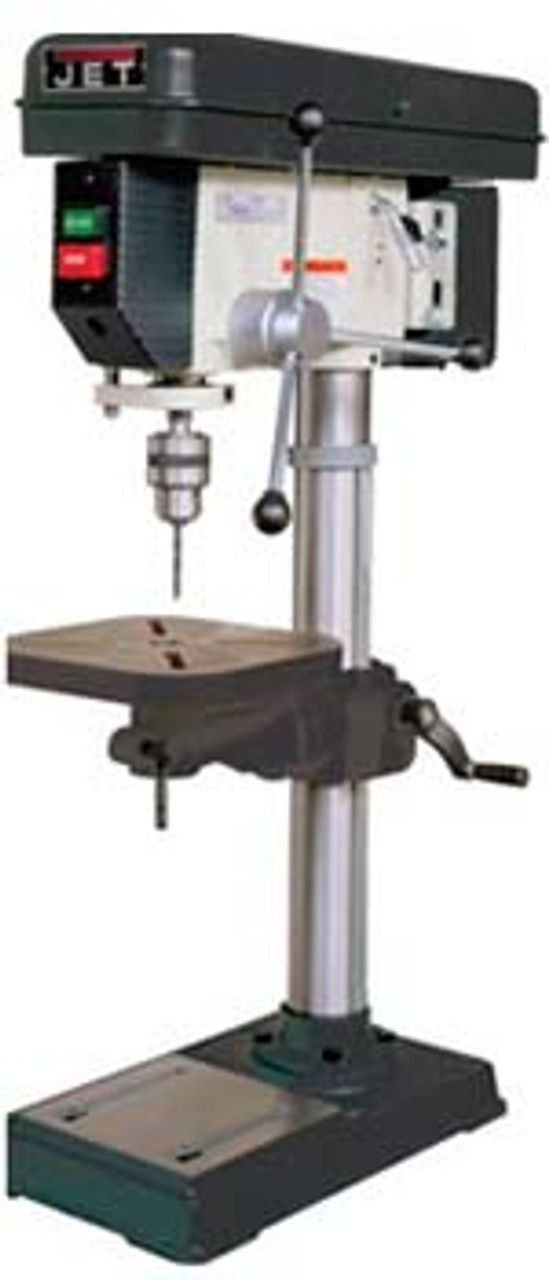

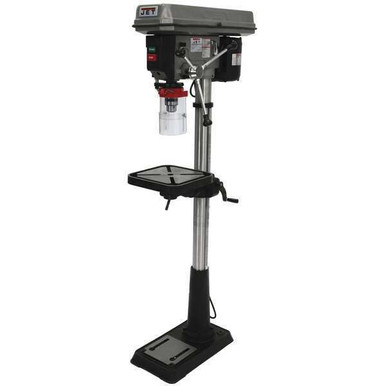

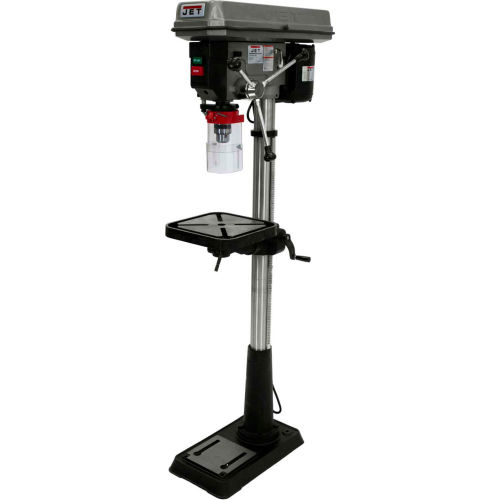

JET 15-Inch Step Pulley Drill Press, 3/4 HP, 1Ph 115V (J-2500)

JET 15-Inch Step Pulley Drill Press, 3/4 HP, 1Ph 115V (J-2500)zoom

Attributes

Key Value
Addl SpecsElectric - Corded
Amperage9
Base Dimensions (In.)11 x 19-1/2 </td
Base Dimensions (LxWxH/.11 x 19-1/2
Base Length11 in
Base Size11 in x 19-1/2 in
Base Slots Number & Siz.- </td
Base Width19 1/2 in
Base Work Table (In.)7 x 7-1/2 </td
Base Work Table (in.)11 x 19-1/2
Batteries Included?No
Batteries Required?No
Bench & Stationary Tool.Drill Press
Best Sellers Rank#126,685 in Tools & Hom.
BrandJet
Built-In LightYes
Certifications and List.CSA Listed
Chuck Size5/8 in
Chuck Size (in.)5/8
Column Dia.2 7/8 in
Column Diameter2 7/8 in
Column Diameter (In.)2-7/8 </td
Column Diameter (in.)2-7/8
ConditionNew, >170.0
Cord Length (ft.)5
Current Stock42
Customer Reviews4.6 out of 5 stars34 ra.
Cut TypeOther
Date First AvailableSeptember 23, 2009
Distance Base to Spindl.48-3/4
Distance Column to Spin.7-1/2 </td
Drill Press Product Gro.General Purpose Drill P.
Drilling Capacity Cast .5/8 </td
Drilling Capacity Cast .5/8
Drilling Capacity Mild .1/2 </td
Drilling Capacity Mild .1/2
Drills to Center of Cir.15 </td, 15
Drive TypeBelt
Gross Weight167 pound
Height11.00, 10.5 inch
Horsepower0.75 HP, 0.75
Included ComponentsUnit^Instruction Guide
International ShippingNo
Is Discontinued By Manu.No
ItemFloor Drill Press
Item Dimensions LxWxH54 x 20 x 10.5 inches
Item model number354400
Item Package Quantity1
Item Weight167 pounds
Length54.00, 54 inch
MagneticNo
ManufacturerJet
Manufacturer's WarrantyNew
Maximum Overall Height63 in
Maximum Speed (rpm)3630
Maximum Spindle-to-Base.48 in
Maximum Spindle-to-Tabl.24 in
Model>
Model NumberJ-2500
Motor3/4HP, 115V, 1 Ph,
Motor (HP)3/4 HP, 115V, 1Ph </.
Motor HP3/4 hp
Motor Phase1 Ph
Mpn354400
Net Weight167 pound
Number of Speeds16
Number of Spindle Speeds16 </td
Number of Spindle speeds16
Overall Depth31 in
Overall Dimensions26 X 13-3/8 X 63-1/2
Overall Dimensions (L x.31 x 13 x 63 </td
Overall Height63 1/2 in
Overall Length31 in
Overall Width13 3/8 in
Pack Size1
Package TypeProduct Defects Only
Part Number354400
Power SourceCorded Electric, Indivi.
Power Tool Product TypeBench & Stationary
Product Depth (in.)31
Product Dimensions54 x 20 x 10.5 inches
Product Height (in.)63
Product Width (in.)13
Product with faster shi.true
Quill Dia.1 7/8 in
Quill Diameter1 7/8 in
Quill Diameter (in.)1-7/8
Quill Travel (in.)3-3/8
Range of Spindle Speeds.200,290,350,430,500,580.
Return Policy2 Years
Shippingundefined (Fixed Shippi.
Size3
SKUjet-354400, 354400, ZO-.
Speed3630 RPM
Spindle Distance to Bas.48 </td
Spindle Distance to Bas.48-3/4
Spindle Distance to Tab.24 </td
Spindle TaperMT-2
Spindle Taper (In. x TP.MT-2 </td
Spindle Travel (in.)3-1/8
Spindle Travel (In.)3-3/8 </td
Standard Color FamilyGray
Stationary typeBelt Drive
StyleFloor Model Drill Press
Style (Type)Belt Drive </td
SubCategoryMachining/Machinery
Swing15 in
Swing (in.)15
T-Slot Centers (In.)- </td
T-Slots Number and Size.- </td
T-Slots Number and Size.N/A
Table Dimensions11-1/2 x 11-1/2
Table Length11 1/2 in
Table Size (in.)11-1/2 x 11-1/2
Table Size (L x W) (In.)11-1/2 x 11-1/2 </td
Table Travel (In.)24 </td
Table Width11 1/2 in
Tools Product TypePower Tool
UNSPSC27111519
UPC662756092649
UPC / ISBN662756092649
Voltage115, 115 Volts, 115/230
Warranty2 Year Warranty, 2-Year.
Warranty Description2 Year
Weight (Lbs.)167 </td
Width20.00, 20 inch
Work Table Weight Capac.44 </td

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Home Depot204059196599.01In StockJET599.0 @ 1
thumbzoomsustainablesupply.comC2785241945.991In StockJet160.0945.99 @ 1
internationaltool.comJET-354400959.01In StockJet959.0 @ 1
thumbzoombscsource.com354400975.191In StockJet975.19 @ 1
thumbzoompenntoolco.com101782999.01In StockJet999.0 @ 1
thumbzoomGlobal IndustrialWBB0230730999.01In StockJET999.0 @ 1
thumbzoomToolbarnJET-354400999.01In StockJET999.0 @ 1
thumbzoomJB ToolsJET354400999.01In StockJet999.0 @ 1
thumbzoomtoolfetch.com354400999.01In StockJET999.0 @ 1
thumbzoomAceToolJET-354400999.01In StockJET167.0999.0 @ 1
thumbzoomburnstools.com354400999.01In StockJet999.0 @ 1
thumbzoomimsbolt.com354400999.01In StockJET999.0 @ 1
thumbzoomZoroG21690061024.0167Jet160.01024.0 @ 1
thumbzoomTylerToolJETN3544001025.161In StockJET1025.16 @ 1
elitemetaltools.com92611051.5168531In StockJET1051.516853 @ 1
thumbzoomhomeessentialsdirect.com3544001205.071In StockJET167.01205.07 @ 1
AmazonTPB003YJWD681221.811In Stock4JET1221.81 @ 1
thumbzoomgasandsupply.comJET3544001246.21In StockJET167.01246.2 @ 1
thumbzoomsimsupply.comZO-G21690061286.46142Jet1286.46 @ 1
thumbzoomDK Hardware3544001505.961In StockJet1505.96 @ 1
