Leeson 119396.00

B01N76SA72

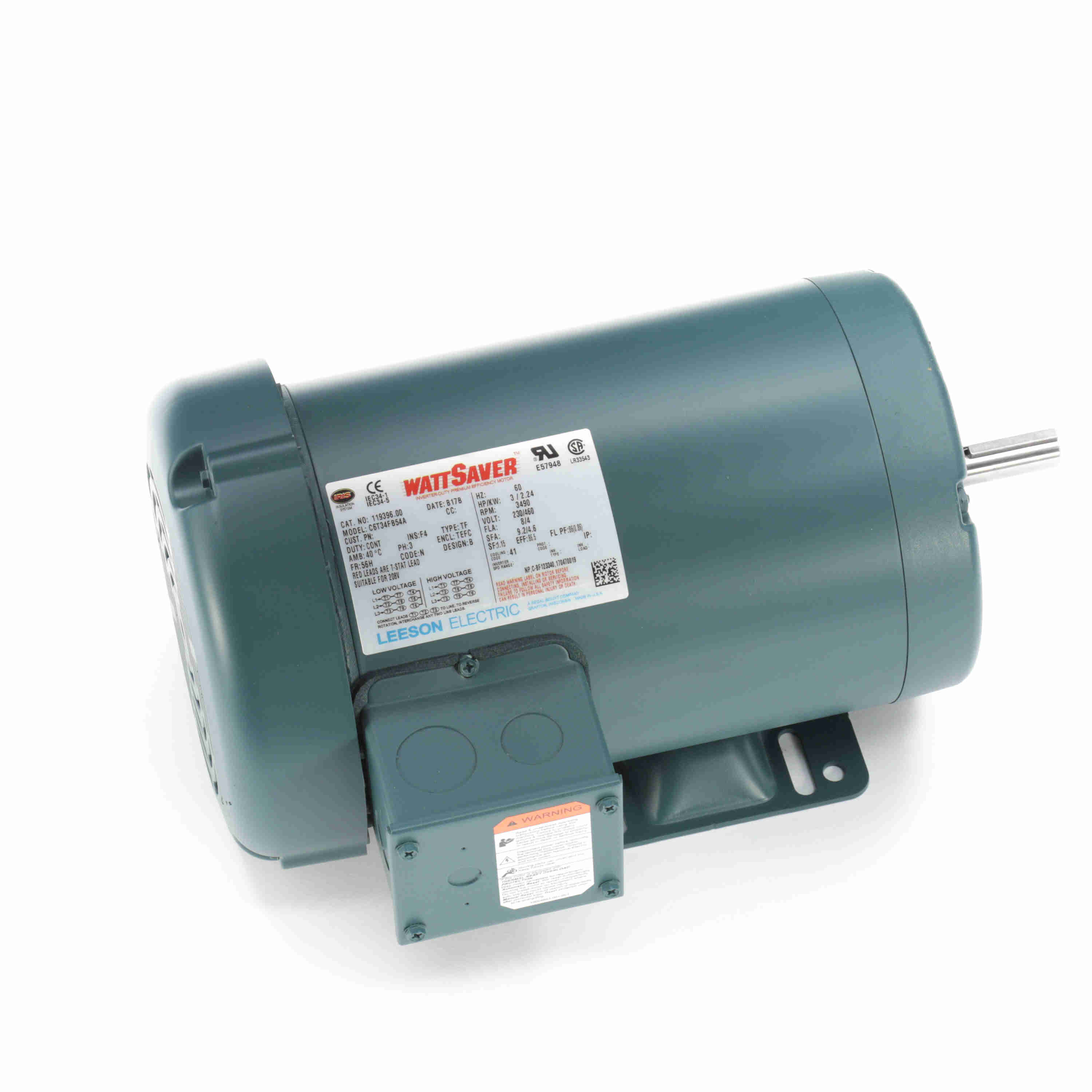

Leeson 119396.00 Rigid Mounting C Face Washguard Jet Pump Motor, New EISA Compliant Model Number, 3 hp, 3600 RPM, 56H Frame, TEFC, 230/460V, 3 pH, 60 Hz

Leeson 119396.00 Rigid Mounting C Face Washguard Jet Pump Motor, New EISA Compliant Model Number, 3 hp, 3600 RPM, 56H Frame, TEFC, 230/460V, 3 pH, 60 Hzzoom

Attributes

Key Value
Amperage Rating8/4 A
Amps8.0/4.0
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
BearingsBall
CategoryElectric Motor
ConstructionRolled Steel
Description:Obsolete, replaced by 0.
Dimensions13.48 in L x 7.32 in H
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency86.5%, 86.5
EnclosureTEFC
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight48.00
FL Amps8/4
FL Efficiency86.5
Frame56H
Frame MaterialRolled Steel
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower3 hp
HP3
Hz60
Insulation ClassClass F, F
Item ConditionFACTORY NEW
KW2.2
ManufacturerLeeson Electric, LEESON.
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:119396.00
Motor Shell Length8.00"
MountingFoot Mount, Rigid Base
mountingRigid Base
Mounting TypeC-Face/Rigid Base
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length13.48"
Part Number119396.00
Phase3, 3 ph
Product TypeGeneral Purpose, Three .
RotationReversible
RPM3600, 3400 - 3600, 3490
Service Factor1.15
Shaft Diameter0.625", 0.625
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight45 lbs.
Speed3490 rpm
Speed (RPM)3490
Supplier:LEESON ELECTRIC CORPORA.
Thermal ProtectionThermostat
UPC:691720043639
Voltage230V, 460V, 230/460
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com119396462.01In StockLEESON462.0 @ 1
AmazonTPB0773TCSSN621.291In Stock3Leeson Electric621.29 @ 1
thumbzoomcshincorporated.com119396.00646.561In StockLeeson45.0646.56 @ 1
thumbzoomemotorpro.com119396.00730.631In StockLeeson45.0730.63 @ 1
thumbzoomDealers Electric119396.00836.391In StockLeeson45.0836.39 @ 1
us.rs-online.com73397187901.091In StockLeeson901.09 @ 1
thumbzoommotorsandcontrol.comLE-119396.00918.719Leeson Electric48.0918.7 @ 1
thumbzoomGalco119396.00-LEES925.451In StockLeeson925.45 @ 1
thumbzoomZoroG2487813927.991In StockLeeson927.99 @ 1
kscdirect.comLEE 119396.00960.111In StockLEESON ELECTRIC CORPORATION960.11 @ 1
thumbzoomcbtcompany.com119396.00979.991In StockLeeson Electric979.99 @ 1
thumbzoompumpproducts.com119396.001188.741In StockLeeson1188.74 @ 1
thumbzoomRaptor SuppliesAJ2RBA1310.204611In StockLEESON1310.20461 @ 1
