Leeson 825126.00

mpn825126.00
brandname: Leeson
manufacturername: Leeson

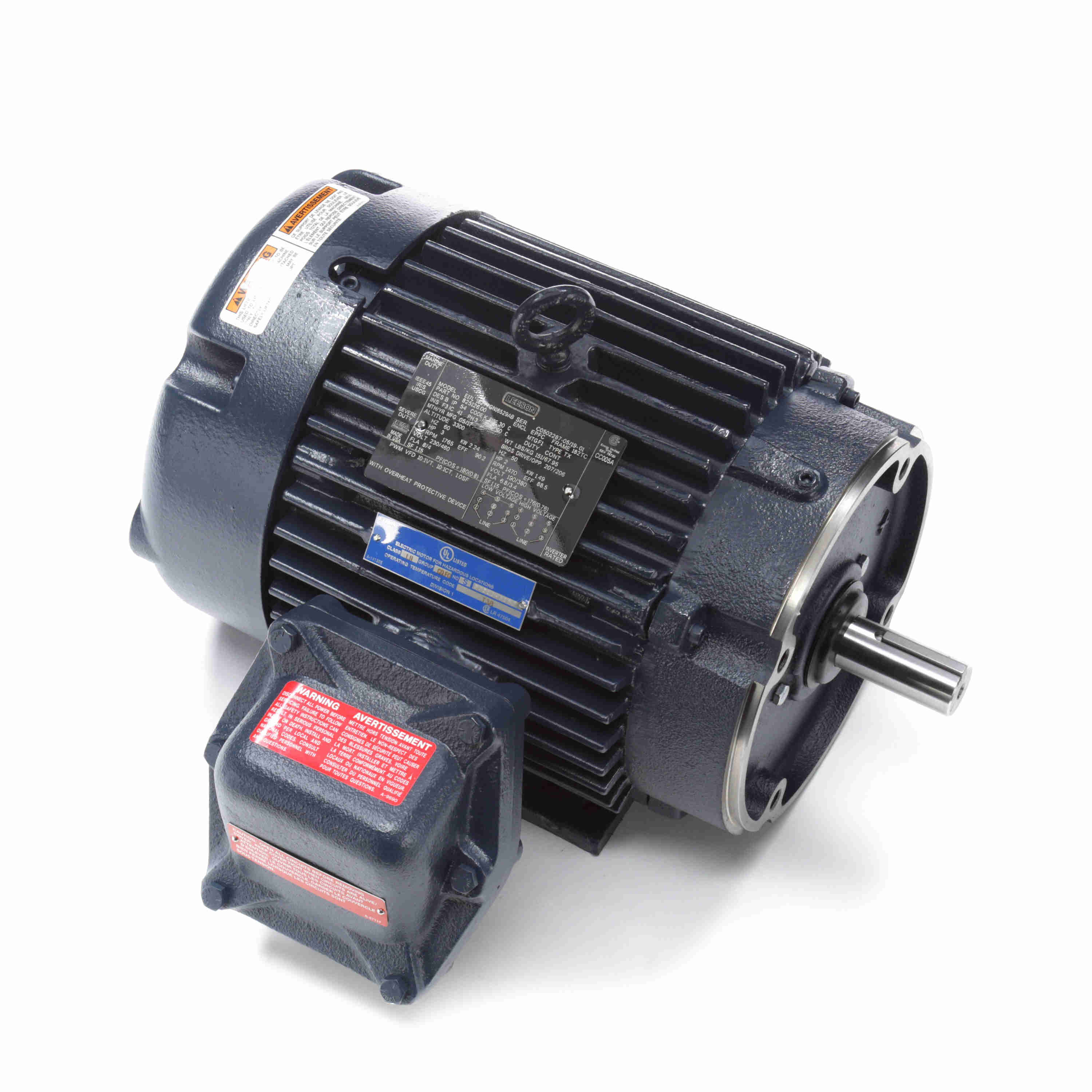

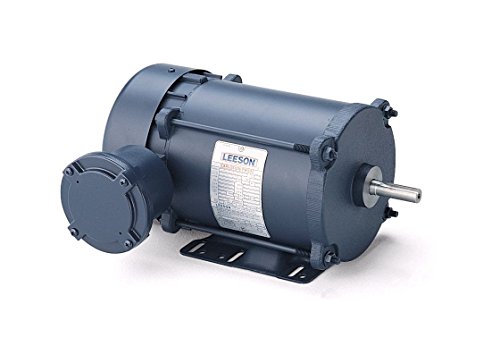

Leeson 825126.00 Explosion-Proof Motor, 3 Phase, 182TC Frame, Rigid Mounting, 3HP, 1800 RPM, 230/460V Voltage, 60/50Hz Fequency

Leeson 825126.00 Explosion-Proof Motor, 3 Phase, 182TC Frame, Rigid Mounting, 3HP, 1800 RPM, 230/460V Voltage, 60/50Hz Fequency

zoom

Brand: Leeson
PartNumber: 825126.00
Model: 182TTGN16529AB
Size: 3 Phase
PackageQuantity: 1
Binding: Misc.
Manufacturer: Leeson
Label: Leeson

Attributes

Key	Value
Amperage Rating	8/4 A
Approvals	CSA, UL
Bearing Type	Ball
Class/Group	182TTGN16529
Composition	Steel
Description:	OBSOLETE REPLACED BY 18.
Dimensions	16.62 in L x 15.29 in W.
Enclosure	EXPLOSION PROOF
Enclosure Type	EPFC
Family Series	Leeson Motors, Explosio.
Frame	182TC
Frequency Rating	60 Hz
Gross Weight	0 lbs
Horsepower	3 hp
Insulation Class	Class F
Item Number	825126.00
Manufacturer	LEESON ELECTRIC CORPORA.
Manufacturer Part Number	825126.00
Material	Cast Iron
MFG Part #:	825126.00
Model Number	182TTGN16529
Mounting Type	C-Face/Rigid Base, C-Fa.
NEMA Frame	182TC
Net Weight	96 lbs
Nominal Voltage	240 VAC
Overall Length	17.6 "
Phase	3, 3 ph
Product Series	EXPLOSION PROOF
Rotation	Reversible
RPM	1,800 RPM
Service Factor	1.15
Shaft Diameter	UL;CSA
Shaft Size	1.13 in Dia x 2.75 in L
Special Features	Explosion Proof AC Moto.
Speed	1765 rpm
Supplier:	LEESON ELECTRIC CORPORA.
Temperature Rating	40 deg C
UPC:	691720093054

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Galco	825126.00-LEES	1170.91	1	In Stock		Leeson	96.0	1170.91 @ 1
	kscdirect.com	LEE 825126.00	1318.9	1	In Stock		LEESON ELECTRIC CORPORATION		1318.9 @ 1
	Walker Industrial	825126-00	1366.73	1	In Stock	10	Leeson		1366.73 @ 1
	AmazonTP	B00EP3I2PI	1496.56	1	In Stock	10	Leeson		1496.56 @ 1
	Raptor Supplies	AJ2UNP	2068.1142885	1	In Stock		LEESON		2068.1142885 @ 1
