MEAN WELL GST40A09-P1J

mpnGST40A09-P1J
brandname: MEAN WELL
manufacturername: MEAN WELL

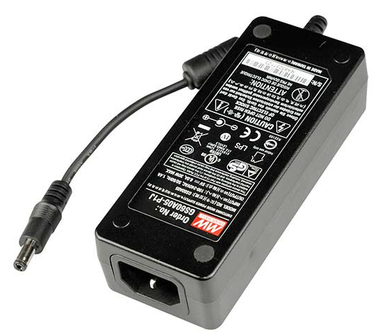

GST40A09-P1J | Mean Well GST 40W 9V Desktop AC Adapter

GST40A09-P1J | Mean Well GST 40W 9V Desktop AC Adapter

zoom

Brand: MEAN WELL
PartNumber: GST40A09-P1J
PackageQuantity: 1
Manufacturer: Mean Well
Label: Mean Well

Attributes

Key	Value
AC inrush current (max.)	Cold start, 65A at 230V.
Body dimensions	125x50x31.5mm
Brand	MEAN WELL
Case Size	10
Configuration	Enclosed
Conform to the norm	Energy efficiency Level.
Connector variant	straight
Dimension (LxWxH)	125x 50x 31.5 mm
Dimensions	4.9 x 2 x 1.2 in (LWH.
Dimming	Analog (0-10V)
Driver Type	Constant-Voltage
Efficiency	88.5%
EMC standards	EN55022 class B, EN6100.
Fixture Type	LED
Industry Aliases	new
Input Voltage	120-277V (Universal)
Kind of input connector	IEC C14
Kind of output connector	5,5/2,1
Kind of power supply	Desktop
Kit contents	without power cable
Length of output cable	1m
Location Rating	Dry/Damp
Manufacturer	MEAN WELL
Manufacturer Part No.	GST40A09-P1J
Max Output Current	4450mA
Max Output Power	40W
Max Output Voltage	9V
Maximum output current	4.45A
Mounting Type	Desktop
Number of Outputs	1
Operating modes	constant voltage
Operating temperature	-30...70?C
Our Part No.	BSFM-GST40A09-P1J
Output Current	4.45 A
Output Power	40.1 W
Output voltage	9V DC
Output Voltage	9 VDC, 9V
Overload protection Type	Hiccup mode, auto-recov.
Polarisation	positive inner pin
Power	40W
Primary Type	AC-DC
Protection	anti-overload OPP,
Series	GST25U Series
Setup, rise, hold up ti.	1000ms, 30ms, 50ms at 2.
Standard DC plug	P1J: 2.1ID x 5.5OD x11m.
Type	Industrial
Type of power supply	switched-mode
UL Class	Class 2
Warranty	Manufacturer's 5 Year
Wattage	40

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	GST40A09-P1J	14.6	1	19		MEAN WELL		14.6 @ 1
	peaktopeakpower.com	GST40A09-P1J	14.6	1	In Stock		Mean Well		14.6 @ 1
	AmazonSC	B071YTXMFL	17.73	1	In Stock		MEAN WELL	0.5875	17.73 @ 1
	powersupplymall.com	GST40A09-P1J	18.01	1	4		Mean Well		18.01 @ 1
	us.rs-online.com	70696384	20.76	1	2		MEAN WELL		20.76 @ 1
	TME	GST40A09-P1J	21.63	1	196		MEAN WELL		21.63 @ 1
	electricautomationnetwork.com	GST40A09-P1J	23.03	1	In Stock		MEANWELL		23.03 @ 1
	Newark	44AC5169	24.99	1	In Stock		MEAN WELL		24.99 @ 1
	ballastshop.com	BSFM-GST40A09-P1J	27.95	1	In Stock		Mean Well		27.95 @ 1
	RS Delivers	880-8379	33.9	1	15		Mean Well		33.9 @ 1
