Omron LY1F-AC220/240

B005T67R24

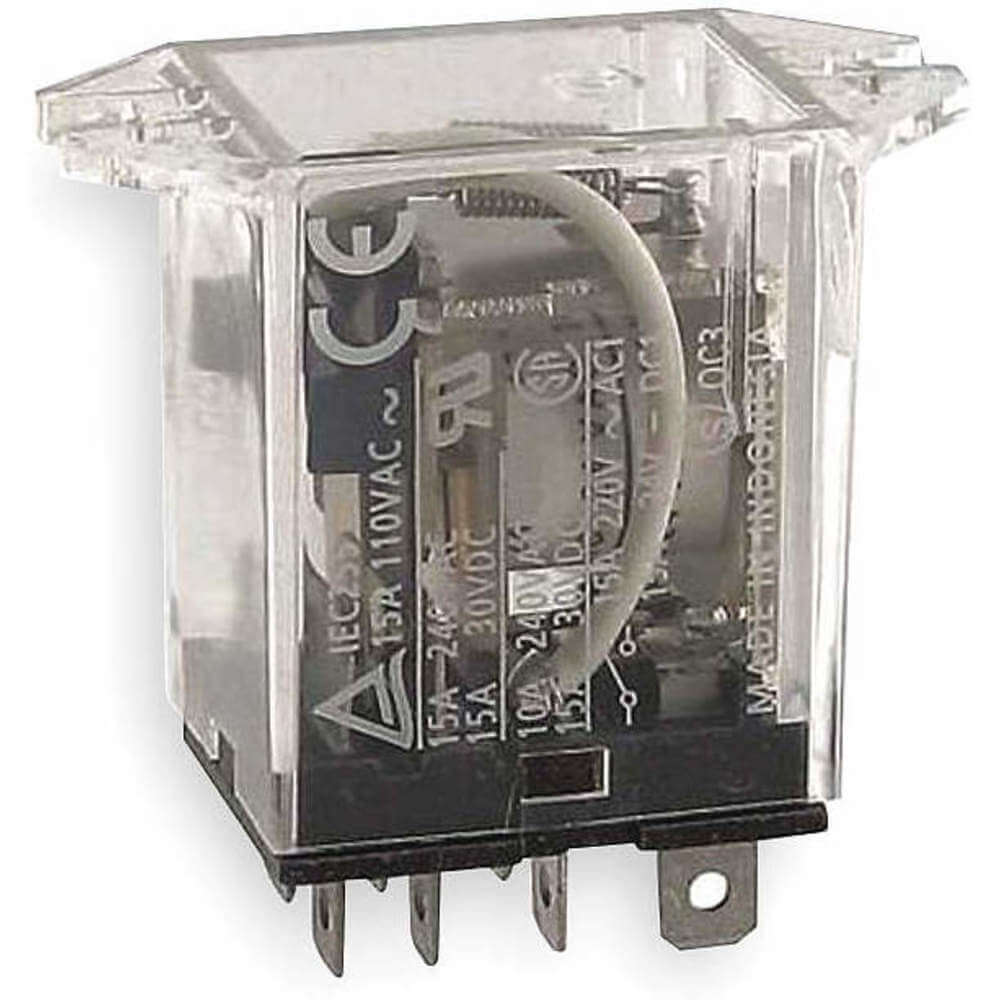

Omron LY1F-AC220/240 General Purpose Relay, Standard Type, Plug-In/Solder Terminal, Upper Bracket Mounting, Single Contact, Single Pole Double Throw Contacts, 4.8 to 5.3 mA at 50 Hz and 4.2 to 4.6 mA at 60 Hz Rated Load Current, 220 to 240 VAC Rated Load Voltage

Omron LY1F-AC220/240 General Purpose Relay, Standard Type, Plug-In/Solder Terminal, Upper Bracket Mounting, Single Contact, Single Pole Double Throw Contacts, 4.8 to 5.3 mA at 50 Hz and 4.2 to 4.6 mA at 60 Hz Rated Load Current, 220 to 240 VAC Rated Load Voltagezoom

Attributes

Key Value
AC Contact Rating - Rel.15A @ 120V
Alternate Mfr Part Numb.LY1FAC220240
Alternate Part No.653-LY1F-AC220/240
ASINB007ULOB70
Base Product NumberLY1F-AC
Batteries Required?No
Body Depth1.39 in
Body Depth - Relay1.14 in
Body Height1.73 in
Body Height - Relay1.4 in
Body Width0.88 in
Body Width - Relay0.89 in
BrandOmron Automation and Sa.
CategoryRelays
Coil Current4.6 mA, 4.8 mA / 5.3 mA
Coil Insulation-
Coil Resistance18790 Ohms, 18.79 kOhms
Coil TerminationQuick Connect Terminal
Coil TypeNon-Latching, Non Latch.
Coil Voltage220 VAC/240 VAC, 240VAC.
Coil Volts240V AC
Contact Current Rating15 A
Contact FormSPDT (1 Form C), SPDT
Contact Form - RelaySPDT
Contact MaterialSilver Alloy
Contact Rating (Current)15 A
Contact Resistance50 mOhms
Contact TerminationPin
Contact Voltage Rating300
Control Voltage120
Current Rating15 A
DC Contact Rating - Rel.15A @ 24V
DescriptionRELAY GEN PURPOSE SPDT .
Detailed DescriptionGeneral Purpose Relay S.
Dielectric Rating2000 VAC
Digi-Key Part NumberZ2261-ND
Electrical ConnectionPlug-In Terminal
Features-
FunctionGeneral Purpose
Height35.56 mm
HP @ 120V1/2 hp
ItemFlange Mount Relay
Item - RelayFlange Mount Relay
Length43.94 mm
ManufacturerOmron, Omron Automation.
Manufacturer Part No.LY1F-AC220/240
Manufacturer Product Nu.LY1F-AC220/240
Manufacturer Standard L.26 Weeks
Maximum Operating Tempe.55 C
MfrOmron Automation and Sa.
Minimum Operating Tempe.-25 C
MountingTop
Mounting - RelayTop Flange
Mounting Hole Diameter2 in
Mounting StylePanel
Mounting TypePanel Mount Flanged Cov.
Must Operate Voltage192 VAC
Must Release Voltage72 VAC
Number of Pins8
Number of Pins - Relay8
Operate Time25 ms
Operating Temperature-25?C ~ 55?C
Overall Depth1.64 in
Overall Height - Relay1.65 in
PackageTray
Part # Aliases9856110
Part NumberLY1F-AC220/240
Power Consumption0.9 VA to 1.1 VA
Power Consumption - Rel.1.1 VA
Power Rating1700 VA ; 360 W
Primary TypePower Relays
Product CategoryGeneral Purpose Relays
Product StatusActive
Relay TypeElectromechanical, Gene.
Release Time25 ms
Seal Rating-
SeriesLY Series, LY
StandardsUL ; CSA ; SEV, CE Cert.
Switching Voltage250 VAC, 125 VDC, 250VA.
TerminationQC Tabs
Termination StyleQuick Connect Terminal,.
Voltage Rating250 ; 125 V
Width22.6 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RadwellLY1FAC2202407.091In StockOMRON7.09 @ 1
thumbzoomCarlton Bates Company403123482737.291In StockOMRON7.29 @ 1
Onlinecomponents.comLY1FAC2202407.9211OMRON INDUSTRIAL7.92 @ 1
WaldomOMRON INDUSTRIAL PRODUCTS LY1FAC2202407.978144OMRON INDUSTRIAL PRODUCTS7.97 @ 8
AmazonTPB005T67R2410.761In Stock15Omron10.76 @ 1
thumbzoomZoroG066150711.581In StockOmron0.3511.58 @ 1
thumbzoomsustainablesupply.comC116870511.591In StockOmron0.3511.59 @ 1
thumbzoomDigi-Key36945111.921362Omron Automation and Safety11.92 @ 1
Newark40AJ009312.181In StockOMRON ELECTRONIC COMPONENTS12.18 @ 1
Master ElectronicsLY1FAC22024012.881844Omron Automation12.88 @ 1
us.rs-online.com7017879313.2612542Omron Automation13.26 @ 1
Airline HydraulicsOMRON LY1F-AC220/24013.461In StockOmron13.46 @ 1
thumbzoomswatee.comLY1F-AC220/24015.01156Omron15.01 @ 1
thumbzoomRaptor SuppliesAB4HXU15.2630011In StockOMRON15.263001 @ 1
thumbzoommidwestapplianceparts.comLY1F-AC220/240-OM-P15.3311Omron15.33 @ 1
AmazonB007ULOB7041.371In StockOmron0.0141.37 @ 1
