- mpnOA200AN-22-1TB1856
- brandname: Orion (Knight Electronics, Inc.)
- manufacturername: Orion (Knight Electronics, Inc.)

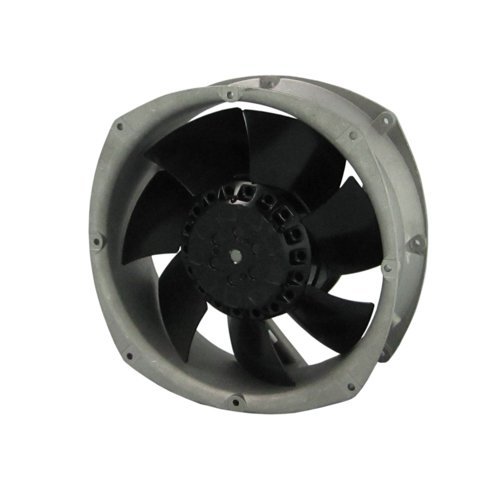

Orion Fans, OA200AN-22-1TB1856, OA200AN - metal
- Brand: Orion Fans
- PartNumber: OA200AN-22-1TB1856
- Model: OA200AN-22-1TB1856
- Binding: Personal Computers
- Manufacturer: Orion Fans
- Label: Orion Fans
Attributes
| Key | Value |
|---|
| Air Flow | 485.0 CFM (13.58m?/min). |
| Approval Agency | cURus, TUV |
| Approximate Size | 7.9 x 8.7 in. ; 200 x 2. |
| Approximate Thickness | 2.8 in. ; 71 mm |
| Base Product Number | OA200AN |
| Bearing Type | Dual Ball, Ball |
| Category | Fans, Thermal Management |
| Configuration | Obround (Flat Sides/Rou. |
| Current Rating (Amps) | - |
| Dimensions | 7.87 x 8.66 x 2.8 . ; 2. |
| Duty Type | Harsh Environment |
| Fan Type | Tubeaxial, AC |
| Features | Capacitor, Thermal Over. |
| Frequency | 50;60 Hz |
| Ingress Protection | IP56 - Dust Protected, . |
| Lifetime @ Temp. | 50000 Hrs @ 55?C |
| Material | Aluminum |
| Material - Blade | Metal |
| Material - Frame | Aluminum |
| Maximum Operating Tempe. | 80 C |
| Mfr | Orion Fans |
| Minimum Operating Tempe. | -30 C |
| Noise | 68.0dB |
| Noise Level | 68 dBA |
| Operating Temperature | -22 ~ 176?F (-30 ~ 80?C) |
| Package | Box |
| Part Status | Active |
| Power (Watts) | 105W |
| Power Rating | 105 W |
| Rotation | CCW |
| RPM | 3300 RPM |
| Series | OA200AN, OA200AN Series |
| Size | 7.87 x 8.66 x 2.8 (200 . |
| Size / Dimension | Rectangular/Rounded - 2. |
| Special Features | All Metal |
| Speed | 3300 RPM |
| Static Pressure | 0.93 in H2O (232 Pa), 0. |
| Temperature Range | -30 to 80 C |
| Termination | Terminals, 2 Terminals |
| Type | Obround (Flat Sides/Rou. |
| Voltage - Rated | 230VAC |
| Voltage Range | 200 ~ 240VAC |
| Voltage Rating | 230 V |
| Weight | 4 lbs (1.8 kg), 1800 g |
| Width | 70.00mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Digi-Key | 4176861 | 92.076 | 10 | In Stock | | Orion Fans | 4.0 | 92.076 @ 10 |
| us.rs-online.com | 70289147 | 117.81 | 1 | In Stock | | Orion Fans | 3.96 | 117.81 @ 1 |
 | Newark | 36AJ7334 | 140.88 | 1 | In Stock | | ORION FANS | | 140.88 @ 1 |
