Ruland SPC-14-10-SS

B0060LW5G0

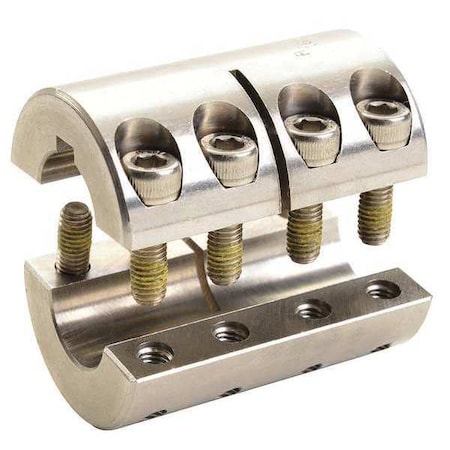

Ruland SPC-14-10-SS Two-Piece Clamping Rigid Coupling with Keyway, Stainless Steel, 7/8" Bore A Diameter, 5/8" Bore B Diameter, 1-5/8" OD, 2-1/2" Length, 3/16" x 3/16" Keyway Width

Ruland SPC-14-10-SS Two-Piece Clamping Rigid Coupling with Keyway, Stainless Steel, 7/8" Bore A Diameter, 5/8" Bore B Diameter, 1-5/8" OD, 2-1/2" Length, 3/16" x 3/16" Keyway Widthzoom

Attributes

Key Value
ApplicationFor Applications where .
B1 Max Shaft Penetration1.250 in
B2 Max Shaft Penetration1.250 in
Balanced DesignYes
Bore (B1)0.8750 in
Bore Dia.5/8 in x 7/8 in
Bore Tolerance+0.0020 in / +0.0005 in
Clearance Dia.1.932 in
Clearance Dia. (In.)1.932
Clearance Diameter (C) .1.932 in
Country of OriginUSA
Country of Origin (subj.United States
DesignFour Vibration Resistan.
FinishBright
Finish SpecificationBright, No Plating
Forged Clamp Screw1/4-28
Full Bearing Support Re.No
Hex Wrench Size3/16 in
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Keyway (K1)3/16 in
Keyway (K2)3/16 in
Keyway Width3/16 in
Keyway Width (In.)3/16 x 3/16
Length (L)2 1/2 in
Machined FromBar Stock
ManufacturerRuland Manufacturing
MaterialStainless Steel
Material - CouplingsStainless Steel
Material SpecificationType 303 Austenitic, No.
Max. Torque1,100 in-lb
Max. Torque (In.-Lbs.)1100
Maximum Speed4,000 RPM
Moment of Inertia0.4284 lb-in
Note 1Performance ratings are.
Number of Screws8 ea
Nypatch? Anti-Vibration.Yes
Outer Diameter (OD)1 5/8 in
Outside Dia.1 5/8 in
Overall Length2 1/2 in
ProvidesExtra Holding Power for.
Rated Torque1100 in-lb
Recommended Gap0.094 in
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBright
Screw Location (R)0.600 in
Screw Material18-8 300 Series Stainle.
Screw Size1/4"-28
Screw Size (In.)1/4-28
Seating Torque110 lb-in
Shaft Locking Type - Co.2 Piece Clamp
Small Bore (B2)0.6250 in
StandardsREACH Compliant, RoHS2 .
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeTwo Piece Clamp Type, w.
UNSPC31163009
UPC634529022351
UPC Code63452902235
Weight (lbs)1.054900
With Keyway / Without K.With Keyway
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2525887219.01In Stock10Ruland1.04219.0 @ 1
us.rs-online.com72339359247.161In StockRuland Manufacturing247.16 @ 1
thumbzoomcbtcompany.comSPC-14-10-SS251.951In StockRULAND MANUFACTURING251.95 @ 1
thumbzoomRulandSPC-14-10-SS289.061In StockRuland1.0549289.06 @ 1
AmazonSCB0060LW5G0346.81In StockRuland346.8 @ 1
motionindustries.com02338087388.31In StockRuland Manufacturing Co Inc388.3 @ 1
Digi-Key13610178406.561In Stockruland-manufacturing406.56 @ 1
thumbzoomRaptor SuppliesAB9AEW504.91929151In StockRULAND MANUFACTURING504.9192915 @ 1
