Ultradex E20U MCLNR4

B018KKQRLW

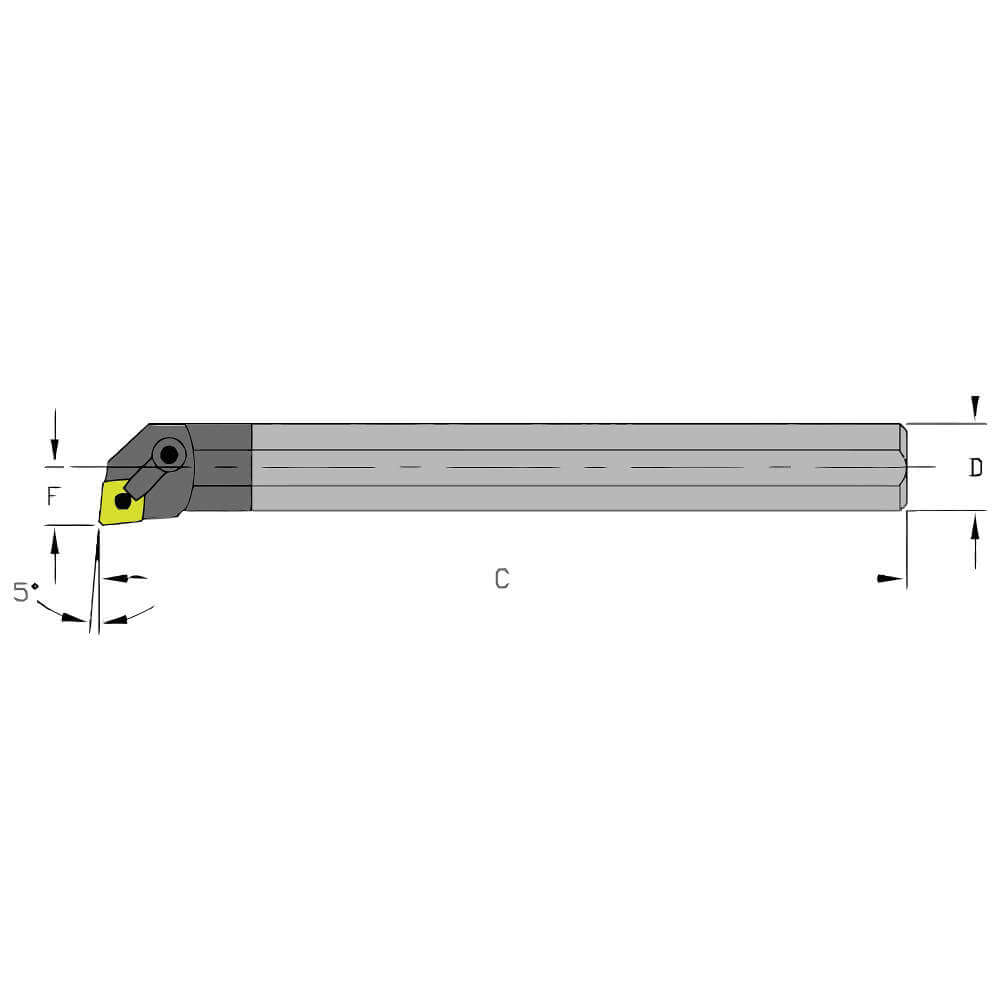

Ultra-Dex E20U MCLNR4 Carbide Boring Bar to Hold a Negative CNMG 432 at -5 Degree Lead, Right Hand, Coolant Thru, 1.250" x 14", 1.470" Minimum Bore

Ultra-Dex E20U MCLNR4 Carbide Boring Bar to Hold a Negative CNMG 432 at -5 Degree Lead, Right Hand, Coolant Thru, 1.250" x 14", 1.470" Minimum Borezoom

Attributes

Key Value
ANSI CodeE20U MCLNR4
ANSI NumberE20U MCLNR4
Bar Dia.1.250"
Center to Cutting Tip0.7650 in
Cutting DirectionRight Hand
Cutting Edge Type-5 Degrees
For Use WithCNMG 432
Functional Width (WF).765"
Inscribed Circle1/2"
Insert Inscribed Circle1/2 in
Insert Shape80 Degrees Diamond
Insert Size432
Insert Thickness0.1875"
ItemIndexable Boring Bar
Lead Angle-5 Degrees
Left/Right HandRight Hand
Master Insert Identific.CNMG 432
Min. Bore1.470"
Min. Bore Dia.1.4700 in
Mounting StyleClamp And Lock Pin
Overall Length14 in
Overall Length (OAL)14"
RakeNegative
Shank Dia.1-1/4 in
Shank MaterialCarbide
StyleCoolant-Thru
TypeTurning

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG92314331664.991In StockUltra-Dex Usa8.01664.99 @ 1
thumbzoomfreertool.comFTS-FG5512881969.91In StockUltra-Dex1969.9 @ 1
thumbzoomRaptor SuppliesAH3VKT2493.3665251In StockULTRA-DEX USA2493.366525 @ 1
