Walter Tools A6685TFP-5.8

mpnA6685TFP-5.8
brandname: Walter Titex
manufacturername: Walter Titex

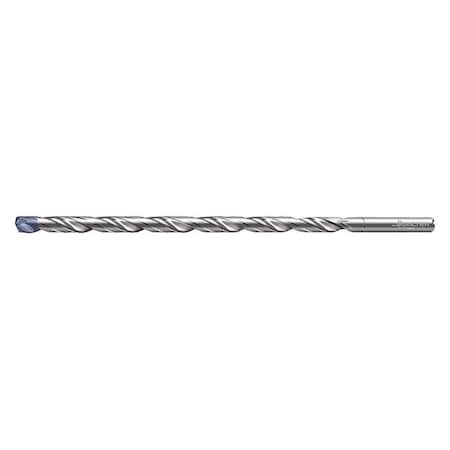

Walter Tools A6685TFP-5.8 Alpha 4 5.8 mm Solid Carbide Coolant Through Drill, 111 mm Length of Cut, 92.8 mm Maximum Cut Depth, 120 mm Extension Length, 160 mm Overall Length

Walter Tools A6685TFP-5.8 Alpha 4 5.8 mm Solid Carbide Coolant Through Drill, 111 mm Length of Cut, 92.8 mm Maximum Cut Depth, 120 mm Extension Length, 160 mm Overall Length

zoom

Brand: Walter Tools
PartNumber: A6685TFP-5.8
Model: 5293833
PackageQuantity: 1
Binding: Misc.
Manufacturer: Walter
Label: Walter

Attributes

Key	Value
Application	For Steel, Stainless St.
Coolant Fed	Coolant Through
Coolant Through	Yes
Country of Origin (subj.	Germany
Cutting Direction	Right Hand
Decimal Equivalent	0.2283
Depth x Dia. Ratio	16xD
Depth:Dia. Ratio	16xD
Drill Bit Dimension Type	Metric
Drill Bit Finish	TiNAl
Drill Bit Grouping	Drill Bit
Drill Bit Material	Solid Carbide
Drill Bit Point Angle	140 Degrees
Drill Bit Point Type	Self-Centering Point
Drill Bit Size	5.80 mm
Drill Diameter Tolerance	H7
Drill Length Class	Jobber Length
Drill Point Length	1.06mm
Drilling Depth	111.00mm
Finish - Machining	TiNAl
Flute Length	120.00 mm
Flute Type	Spiral
Grade	K30F
Item	Jobber Length Drill Bit
List Number	A6685TFP
Material - Machining	Carbide
Material Grade - Machin.	K30F
Maximum Drilling Depth	120.00 mm
Measurement System	Metric
Number of Coolant Holes	2
Number of Flutes	2
Number of Pieces	1
Overall Length	160.00 mm
Point Type	Self-centering
Primary Material Applic.	Aluminum, Brass, Bronze.
Primary Material Applic.	K, N, P, S
Secondary Material Appl.	Composite, Hardened Ste.
Secondary Material Appl.	H, M, O
Series	Alpha 4
Shank Dia.	6.00 mm
Shank Length	36 mm
Shank Type - Machining	Straight
Sheeter Drill	No
Standards	DIN 6537

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G8432243	254.85	1	In Stock		Walter Titex		254.85 @ 1
