- mpnYA312TC38
- brandname: Burndy
- manufacturername: Burndy

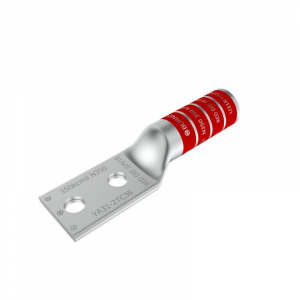

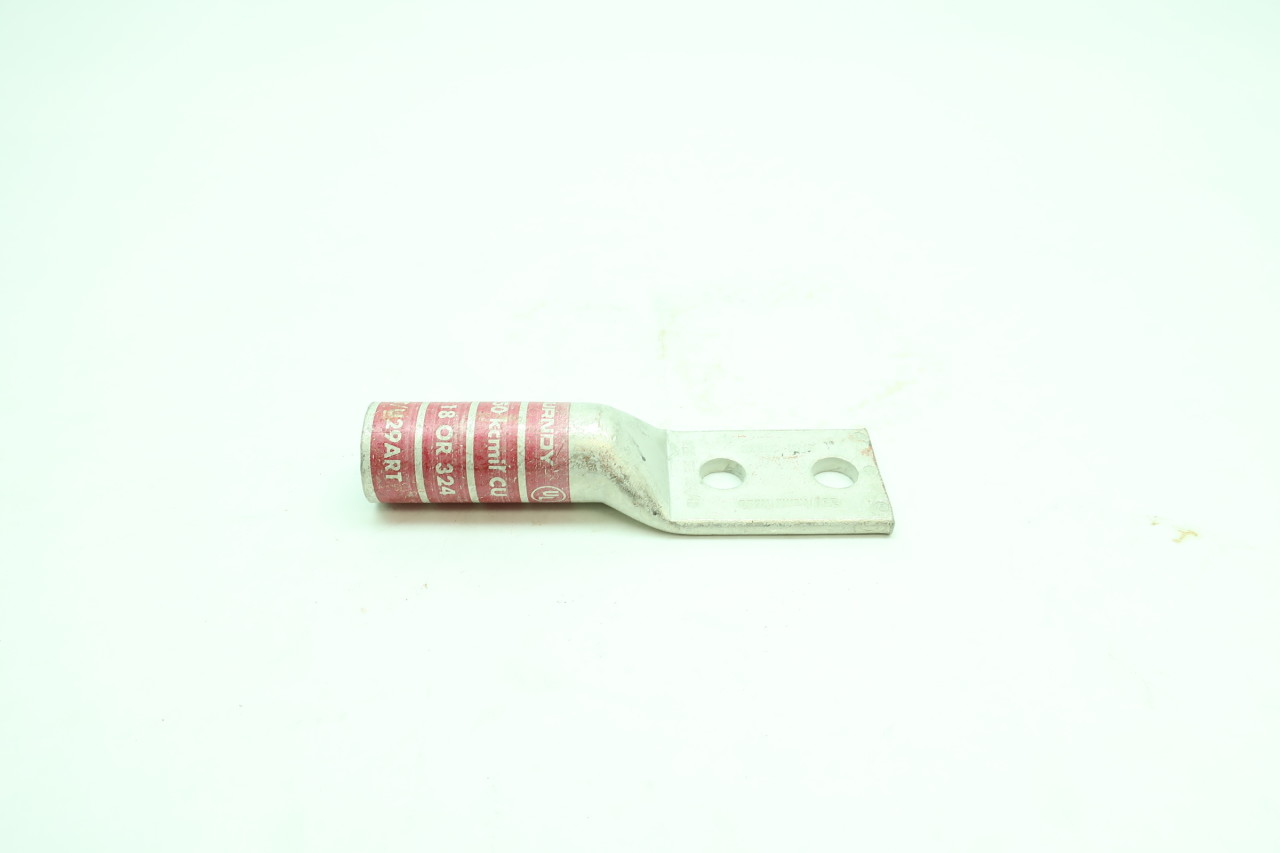

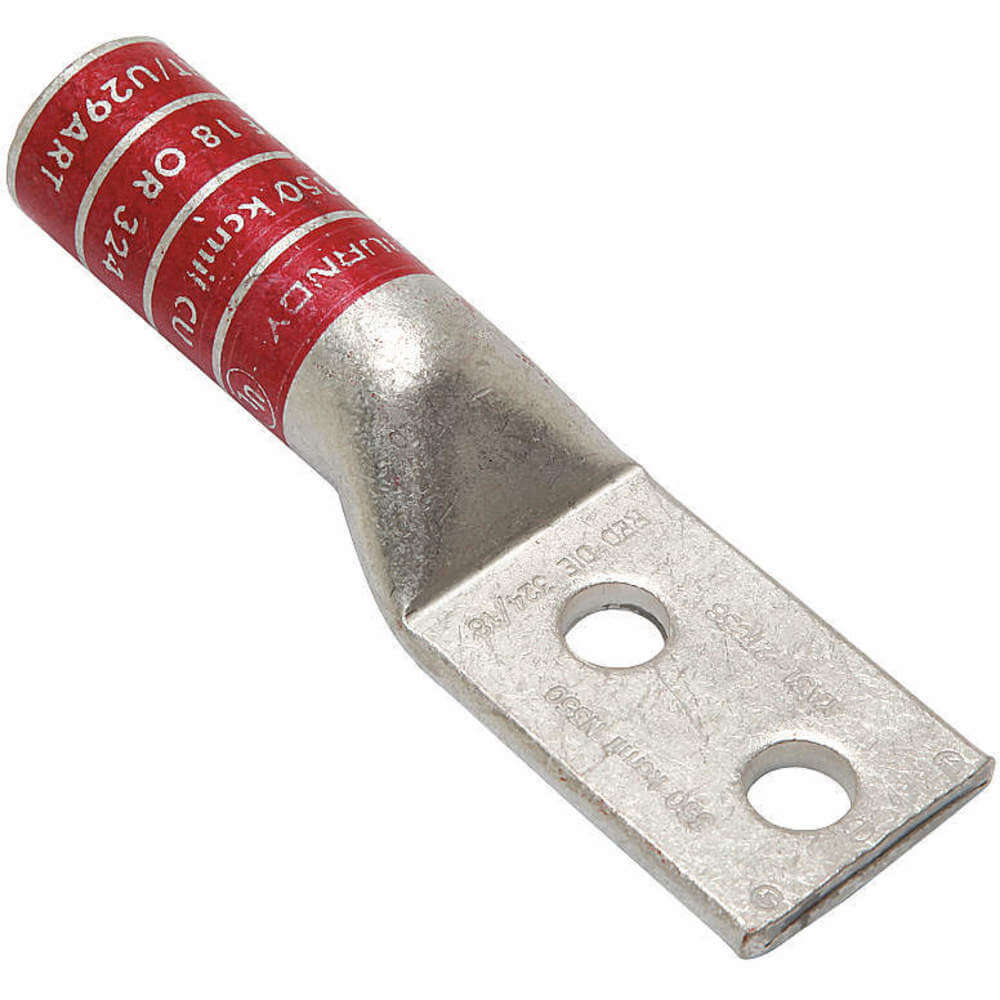

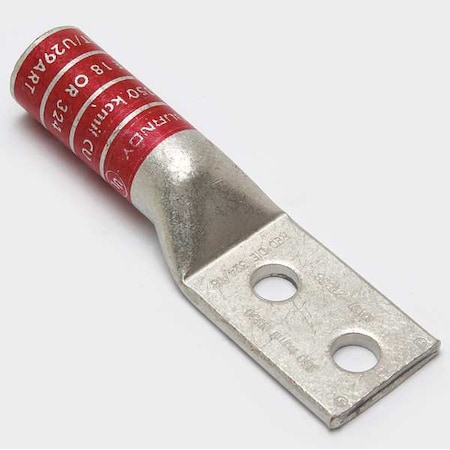

Burndy YA312TC38 Two Hole Hylug Code Conductor Long Barrel Copper Compression Terminal, 350 kcmil Conductor, 3/8" Stud Hole Size, 1" Stud Hole Spacing, 1.29" Tongue Width, 4.49" Length,Red
- Brand: Burndy
- PartNumber: YA312TC38
- Model: YA312TC38
- Color: Red
- Size: 350 kcmil
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Burndy
- Label: Burndy
Attributes
| Key | Value |
|---|
| Application | For Code Conductor |
| Approvals | CSA, UL |
| Barrel Length | Long |
| Barrel Outside Diameter | 0.88 in |
| Barrel Size | Long |
| Barrel Style | Chamfered |
| Brand | Burndy |
| Cable Size | 350 kcmil |
| Certification - CSA App. | Yes |
| Certification - cULus | No |
| Certification - UL Reco. | No |
| Color | Red |
| Color Code | Red |
| Color Family | Red |
| Conductor - Copper Str . | 350 (91) Navy |
| Conductor - Copper Str . | 350 kcmil |
| Conductor - Copper Str . | 350 kcmil |
| Conductor - Material | Copper |
| Conductor Size | 350 kcmil |
| Connector Type | Terminal, Long Barrel |
| Contact Finish | Tin |
| Country of Origin | US - United States |
| Current Stock | 47 |
| Die Code | 18, 324 |
| Die Color | Red |
| Die Index | 18;324 |
| Dimension - B Length in. | 2.00 in |
| Dimension - Bolt Hole S. | 0.39 in |
| Dimension - Bolt Size f. | 44993, 3/8 |
| Dimension - Bolt Size i. | 0.38 |
| Dimension - Hole Size f. | 2023-03-08 |
| Dimension - Hole Size i. | 0.40 in |
| Dimension - Hole Size mm | 10 mm |
| Dimension - L Length Ov. | 114 mm |
| Dimension - Length Over. | 4.49 in |
| Dimension - N inch | 0.41 in |
| Dimension - Outside Dia. | 0.88 in |
| Dimension - Pad Width i. | 1.29 in |
| Dimension - Strip Lengt. | 42401, 2-1/16 |
| Dimension - Stud Size f. | 2023-03-08 |
| Dimension - Stud Size i. | 44993, 3/8 |
| ECCN | EAR99 |
| Family Series | Burndy Terminals, YA Se. |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Long |
| Finish | Electro Tin-Plated |
| For Conductor Material | Copper |
| For Stranded Copper Wir. | 350 kcmil |
| For Stranded Copper Wir. | 350 kcmil |
| For Stud Size | 3/8 in |
| For Wire Size | 350 kcmil |
| For Wire Type | Stranded |
| Gross Weight | 0.0188 lbs |
| Hole Center to Center | 1 in |
| Hole Center to End | 0.41 in |
| Hole Size | 0.4 in |
| Industry Standard(s) | UL468A-468B |
| Inspection Hole | No |
| Insulated | Non-Insulated |
| International Shipping | No |
| Item | Two-Hole Lug Compressio. |
| Item Number | YA312TC38 |
| Lead Time | Expected to ship in 1-2. |
| Length | 4.49" |
| Length (Straight Wirewa. | 4.49 in |
| Lug Compression Connect. | Two-Hole Lug Compressio. |
| Lug Wire Size | 350 kcmil |
| Manufacturer | Burndy |
| Manufacturer Part Number | YA312TC38 |
| Material | Copper |
| Maximum Operating Tempe. | 194 Degrees F |
| Maximum Voltage | 35 kV AC |
| Mpn | YA312TC38 |
| Net Weight | 0 lbs |
| Overall Length | 4.49 in |
| Overall Width | 1.29 in |
| Peep Hole | No |
| Physical Attribute - Nu. | 2 |
| Physical Attribute - To. | Straight |
| Physical Attribute - To. | Standard |
| Plate Material | Electro Tin |
| Plated | Y |
| Plating Material | Tin |
| Plating Type | Tin - Electro Plated |
| Product Series | YA |
| Rating - KVA | 35 kV |
| Rating - Minimum Voltage | 600 |
| RoHS Compliant | Yes |
| SKU | ZO-G4673164 |
| Special Features | Corrosion Resistant, No. |
| Standards | CSA Certified, UL 486A-. |
| Standards - Industry St. | UL468A-468B |
| Standards - RoHS Compli. | CM |
| Strip Length | 2 1/16 in |
| Stud Hole Spacing | 1 in. |
| Stud Size | 3/8 in, 3/8 in. |
| Stud Spacing | 1 |
| SubCategory | Electrical |
| Terminal Material | Copper |
| Terminal Type | Ring |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Style | Standard |
| Tongue Thickness | 0.18 in |
| Tongue Width | 1.29 ", 1.29 in |
| Tongue Width Ranges | 1.01 - 1.50 inches |
| Trade Name | HYLUG? |
| Type | Long Barrel, Tin Plated |
| UL Listed | Yes |
| UNSPSC | 39121405 |
| UPC | 781810555897 |
| UPC Code | 781810821305 |
| Voltage - Maximum | 35000 |
| Width | 1.29" |
| Wire Size | 350 kcmil |
| Wire Size (kcmil) | 350 kcmil |
| Wire Size Range | 350 kcmil - 350 kcmil |
| Wire Strip Length | 2.062 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Specialized Products | 109X364 | 16.86 | 1 | In Stock | 43 | Burndy | | 16.86 @ 1 |
| Graybar | 91011036 | 25.1888 | 1 | 16 | | Burndy | | 25.1888 @ 1 |
 | Zoro | G4673164 | 28.99 | 1 | 49 | | Burndy | 0.3 | 28.99 @ 1 |
 | NRI Industrial | D608042 | 29.94 | 1 | In Stock | | BURNDY | | 29.94 @ 1 |
 | Megadepot | YA312TC38 | 31.08 | 1 | In Stock | | Burndy | | 31.08 @ 1 |
 | usmegastore.com | YA312TC38 | 31.08 | 1 | In Stock | | Burndy | | 31.08 @ 1 |
 | Galco | YA312TC38-BURN | 32.31 | 1 | In Stock | | Burndy | 0.0188 | 32.31 @ 1 |
 | gordonelectricsupply.com | YA312TC38 | 36.57 | 1 | In Stock | | BURNDY | | 36.57 @ 1 |
 | simsupply.com | ZO-G4673164 | 40.28 | 1 | 47 | | Burndy | | 40.28 @ 1 |
| us.rs-online.com | 71487129 | 40.51 | 1 | 5 | | BURNDY | | 40.51 @ 1 |
| kirbyrisk.com | 540651 | 57.39 | 1 | In Stock | | Burndy | | 57.39 @ 1 |
 | Raptor Supplies | AB6RLY | 57.5546985 | 1 | In Stock | | BURNDY | | 57.5546985 @ 1 |
