- mpn48212
- brandname: CHICAGO-LATROBE
- manufacturername: CHICAGO-LATROBE

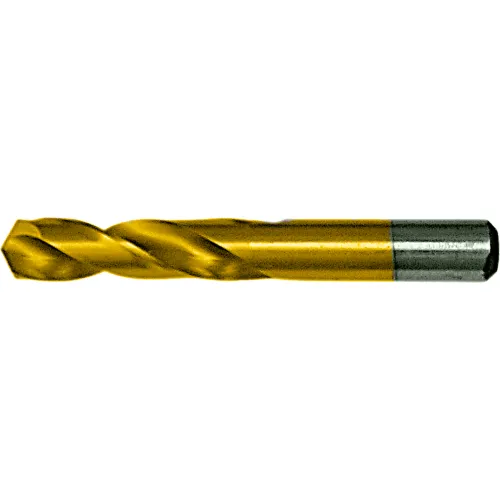

Chicago-Latrobe 48212 159-TN/2159 Heavy Duty Screw Machine Drill, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, HSS, TiN Coated (Each)
- Brand: Chicago Latrobe
- PartNumber: 48212
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Bit Dia. | 3/16" |
| Brand | Chicago-Latrobe |
| Cutting Depth | 1-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1875 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1875" |
| Diameter (Fraction) | 3/16" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | TiN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 3/16 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0388 in |
| Drill Size - Decimal In. | 0.1875 in |
| Drill Size - Fraction | 3/16 in |
| Drill Size System | Fractional |
| Drill Style | Screw Machine Drill |
| Drilling Length | 1-1/4" |
| Finish | TiN Coated |
| Flute Length | 1.1250", 1 1/8 in, 1-1/. |
| Flute Length (Metric) | 28.57mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 1/8 in |
| Mpn | 48212 |
| Number of Flutes | 2 |
| Overall Length | 2.1875", 2-3/16 in, 2 3. |
| Overall Length (Metric) | 55.56mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 159-TN/2159 |
| Shank Configuration | Straight |
| Shank Dia. | 3/16 in |
| Shank Length | 1.0625", 1 1/16 in |
| Shank Length (Metric) | 26.99mm |
| Shank Size | 3/16", 0.1875", 3/16 in. |
| Shank Size (Metric) | 4.76mm |
| Shank Type | Straight |
| Sizes Included | 3/16" |
| SKU | ZO-G2991681 |
| Style | 159-TN |
| SubCategory | Machining |
| Surface Condition | TiN |
| Tool Size | 3/16" |
| Type | Heavy Duty |
| UPC | 662355482124 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6129897 | 3.18 | 12 | 31 | | Chicago-Latrobe | | 3.18 @ 12 |
 | Zoro | G2991681 | 3.19 | 1 | 31 | | Chicago-Latrobe | 0.18 | 3.19 @ 1 |
 | Global Industrial | WBB2546470 | 3.46 | 12 | 28 | | Chicago-Latrobe | | 3.46 @ 12 |
 | usmegastore.com | 48212 | 3.69 | 1 | 28 | | Chicago-Latrobe | | 3.69 @ 1 |
 | Megadepot | 48212 | 3.69 | 1 | 31 | | Chicago-Latrobe | | 3.69 @ 1 |
 | heavydutydepot.com | 48212 | 3.71 | 27 | 26 | | Chicago-Latrobe | | 3.71 @ 27 |
 | bscsource.com | 48212 | 5.59 | 1 | In Stock | | Chicago-Latrobe | | 5.59 @ 1 |
 | simsupply.com | ZO-G2991681 | 9.98 | 1 | 31 | | Chicago-Latrobe | | 9.98 @ 1 |
 | National Supply Network | 6131387 | 15.04 | 1 | 28 | | Chicago-Latrobe | | 15.04 @ 1 |
