- mpn48217
- brandname: CHICAGO-LATROBE
- manufacturername: CHICAGO-LATROBE

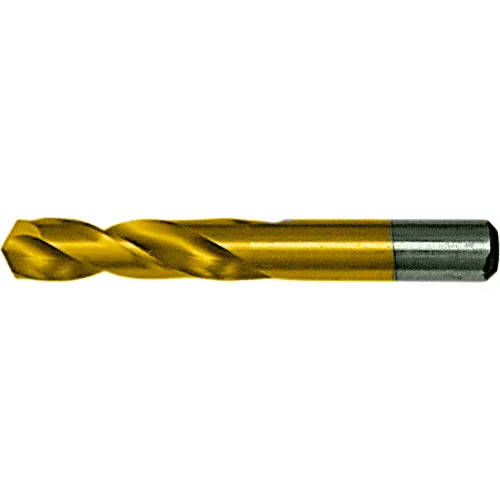

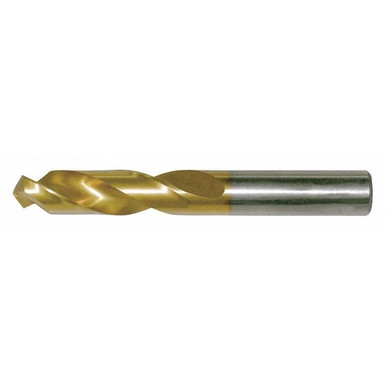

Chicago-Latrobe 48217 159-TN/2159 Heavy Duty Screw Machine Drill, 17/64 in Drill - Fraction, 0.2656 in Drill - Decimal Inch, HSS, TiN Coated (Each)
- Brand: Chicago Latrobe
- PartNumber: 48217
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Drilling Alloy Stee. |
| Bit Dia. | 17/64" |
| Brand | Chicago-Latrobe |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Current Stock | 9 |
| Cutting Depth | 1-7/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2656 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | TiN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees, 135 ? |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 17/64 in |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.055 in |
| Drill Size - Decimal In. | 0.2656 in |
| Drill Size - Fraction | 17/64 in |
| Drilling Length | 1-7/16" |
| Finish | TiN Coated |
| Finish - Machining | TiN |
| Flute Length | 1 7/16 in, 1-7/16 in |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Helix Angle | 28 Degrees, 28 ? |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Item? | 439H52 |
| Lead Time | Expected to ship in 1-2. |
| List Number | 159-TN |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | Heavy Duty |
| Maximum Drilling Depth | 1 7/16 in |
| Measurement System | Fractional Inch |
| Mfr. Model? | 48217 |
| Mpn | 48217 |
| Number of Flutes | 2 |
| Number of Pieces | 0 |
| Overall Length | 2 5/8 in, 2-5/8 in |
| Point Angle | 135 deg |
| Point Type | Split |
| Primary Material Applic. | Cast Iron, Steel, Tool . |
| Primary Material Applic. | K, P, K; P |
| Series | 159-TN, 159-TN/2159 |
| Shank Dia. | 17/64 in |
| Shank Length | 1 3/16 in, 1-3/16 in |
| Shank Shape | Straight |
| Shank Size | 17/64 in Dia x 1-3/16 i. |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sizes Included | 17/64" |
| SKU | ZO-G2991718 |
| Spiral Direction | Right Hand |
| Standards | ANSI |
| Style | 159-TN |
| SubCategory | Machining |
| Surface Condition | TiN |
| Tool Size | 17/64" |
| Type | Heavy Duty |
| UNSPSC | 27112801 |
| UPC | 662355482179 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6129902 | 4.61 | 8 | 12 | | Chicago-Latrobe | | 4.61 @ 12 |
 | Global Industrial | WBB2546550 | 4.9504 | 12 | 12 | | Chicago-Latrobe | | 4.9504 @ 12 |
 | heavydutydepot.com | 48217 | 5.3 | 19 | 12 | | Chicago-Latrobe | | 5.3 @ 19 |
 | Zoro | G2991718 | 5.59 | 1 | 12 | | Chicago-Latrobe | 0.41 | 5.59 @ 12 |
| Grainger | 439H52 | 7.51 | 1 | 12 | | CHICAGO-LATROBE | | 7.51 @ 12 |
 | National Supply Network | 6131437 | 8.2025 | 1 | 12 | | Chicago-Latrobe | | 8.2025 @ 12 |
 | bscsource.com | 48217 | 8.99 | 1 | 12 | | Chicago-Latrobe | | 8.99 @ 12 |
 | simsupply.com | ZO-G2991718 | 12.36 | 1 | 12 | | Chicago-Latrobe | | 12.36 @ 12 |
 | Guardian | 06131437 | 13.32 | 1 | 12 | | Chicago-Latrobe | | 13.32 @ 12 |
