- mpnC20880
- brandname: Cle-Line
- manufacturername: Cle-Line

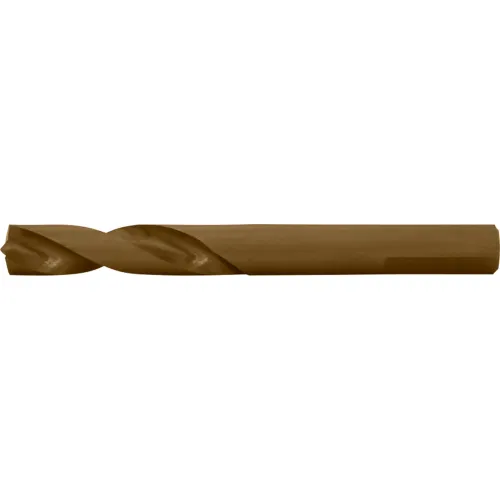

Cle-Line C20880 Welding Point Drill, Cobalt, Gold Oxide Finish, Straight Flatted Shank, 135-Degree Split Point, 10.00 mm Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C20880
- Model: C20880
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Sheet Metal |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 43 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8 |
| Decimal Equivalent | 0.3937 |
| Depth:Dia. Ratio | 4xD |
| Diameter | 10 mm, 0.3937" |
| Diameter (Metric) | 10.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 10.00 mm |
| Drill Construction | Welding Point Drills |
| Drill Size System | Metric |
| Drill Style | Other |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 1.6929", 43 mm, 43.00 mm |
| Flute Length (Metric) | 43.00mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Impact Rated | No |
| Item | Spot Weld Drill Bit |
| Material | M42 HSS-Co 8, HSS-CO |
| Material - Machining | Cobalt |
| Material Grade - Machin. | Heavy Duty |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 89 mm, 89.00 mm, 3.5039" |
| Overall Length (Metric) | 89.00mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Steel |
| Series | 2185F |
| Shank Configuration | Straight w/ Single Flat |
| Shank Dia. | 10.00 mm |
| Shank End Feature | 1 Flat |
| Shank Length | 1.8110", 46.00 mm |
| Shank Length (Metric) | 46.00mm |
| Shank Size | 10 mm, 0.3937" |
| Shank Size (Metric) | 10.00mm |
| Shank Type | Straight with Single Fl. |
| Spiral Direction | Right Hand |
| Style | 2185F |
| Surface Condition | Straw |
| Tool Size | 10.00mm, 10mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C20880 | 11.73 | 1 | 6 | | Cle-Line | | 11.73 @ 6 |
 | heavydutydepot.com | C20880 | 11.73 | 9 | 6 | | Cle-Line | | 11.73 @ 9 |
 | Global Industrial | WBB2545665 | 13.5 | 6 | 6 | | Cle-Line | | 13.5 @ 6 |
 | usmegastore.com | C20880 | 13.73 | 1 | 6 | | Cle-Line | | 13.73 @ 6 |
 | MRO Supply | 6124023 | 16.0 | 3 | 6 | | Cle-Line | | 16.0 @ 6 |
 | Zoro | G4938897 | 16.0 | 6 | 6 | 10 | Cle-Line | 0.03 | 16.0 @ 6 |
