Cle-line C22676

mpnC22676
brandname: Cle-Line
manufacturername: Cle-Line

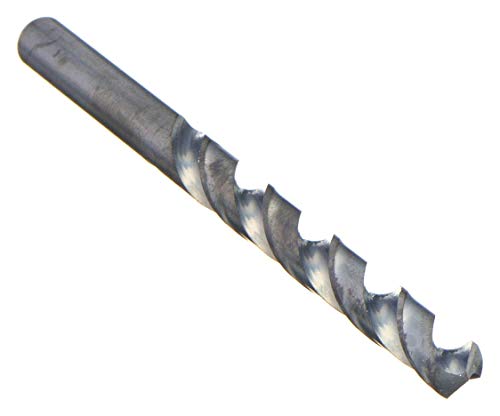

Jobber Bit, 33, High Speed Steel

Jobber Bit, 33, High Speed Steel

zoom

Brand: Cle-line
PartNumber: C22676
PackageQuantity: 1
Binding: Misc.
Manufacturer: CLE-LINE
Label: CLE-LINE

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Coolant Fed	Non-Coolant Through
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.1130
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.1130"
Diameter (Wire/Let)	33
Drill Bit Dimension Type	Wire
Drill Bit Finish	Black Oxide
Drill Bit Grouping	Drill Bit
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	118 Degrees
Drill Bit Size	#33
Drill Construction	General Purpose
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in/-0.0005 in
Drill Length Class	Jobber Length
Drill Point Length	0.0339 in
Drill Size - Decimal In.	0.113 in
Drill Size - Wire	#33
Drill Size System	Wire
Drill Style	Jobber Drill
Finish	Black Oxide
Flute Length	1 1/2 in, 1-1/2 in, 1.5.
Flute Length (Metric)	38.10mm
Flute Type	Right Spiral, Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Jobber Length Drill Bit
Material	HSS, High Speed Steel
Maximum Drilling Depth	1 1/8 in
Number of Flutes	2
Number of Pieces	1
Overall Length	2.6250", 2 5/8 in, 2-5/.
Overall Length (Metric)	66.67mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Series	1899
Shank Configuration	Straight
Shank Dia.	7/64 in
Shank Length	1.1250", 1 1/8 in
Shank Length (Metric)	28.57mm
Shank Size	0.113 in Dia x 1.125 in.
Shank Size (Metric)	2.87mm
Shank Type	Straight
Style	1899
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	#33

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Global Industrial	WBB2545288	0.9227	12	12		Cle-Line		0.9227 @ 12
	MRO Supply	6124269	1.12	45	12		Cle-Line		1.12 @ 45
	Zoro	G2735914	1.19	1	240		Cle-Line	0.01	1.19 @ 12
	usmegastore.com	C22676	1.45	1	12		Cle-Line		1.45 @ 12
	Megadepot	C22676	1.45	1	12		Cle-Line		1.45 @ 12
	heavydutydepot.com	C22676	1.48	68	12		Cle-Line		1.48 @ 68
	Raptor Supplies	AD6TJN	1.541943	1	12		CLE-LINE		1.541943 @ 12
	sustainablesupply.com	C2765306	1.55	1	12		Cle-Line	0.01	1.55 @ 12
