- mpnC22704
- brandname: Cle-Line
- manufacturername: Cle-Line

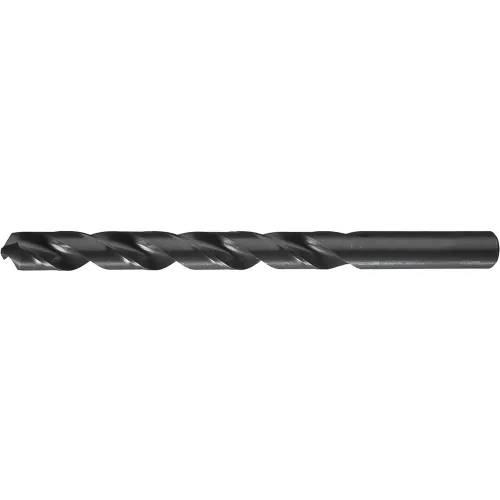

Jobber Bit, 10, High Speed Steel
- Brand: Cle-line
- PartNumber: C22704
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1935 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1935" |
| Diameter (Wire/Let) | 10 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | #10 |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0581 in |
| Drill Size - Decimal In. | 0.1935 in |
| Drill Size - Wire | #10 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Flute Length | 2-7/16 in, 2 7/16 in, 2. |
| Flute Length (Metric) | 61.91mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 13/16 in |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 3.6250", 3 5/8 in, 3-5/. |
| Overall Length (Metric) | 92.07mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 3/16 in |
| Shank Length | 1 3/16 in, 1.1875" |
| Shank Length (Metric) | 30.16mm |
| Shank Size | 0.1935", 0.1935 in Dia . |
| Shank Size (Metric) | 4.91mm |
| Shank Type | Straight |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | #10 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545057 | 1.3756 | 12 | 12 | | Cle-Line | | 1.3756 @ 12 |
 | MRO Supply | 6124297 | 1.65 | 31 | 12 | | Cle-Line | | 1.65 @ 31 |
 | Megadepot | C22704 | 1.85 | 1 | 12 | | Cle-Line | | 1.85 @ 12 |
 | usmegastore.com | C22704 | 1.89 | 1 | 12 | | Cle-Line | | 1.89 @ 12 |
 | heavydutydepot.com | C22704 | 1.93 | 52 | 12 | | Cle-Line | | 1.93 @ 52 |
 | Zoro | G3466084 | 1.99 | 1 | 1130 | | Cle-Line | 0.02 | 1.99 @ 12 |
 | sustainablesupply.com | C1465151 | 2.1 | 1 | 12 | | Cle-Line | 0.02 | 2.1 @ 12 |
 | Raptor Supplies | AD6THN | 2.2905675 | 1 | 12 | | CLE-LINE | | 2.2905675 @ 12 |
