Cle-line C22705

mpnC22705
brandname: Cle-Line
manufacturername: Cle-Line

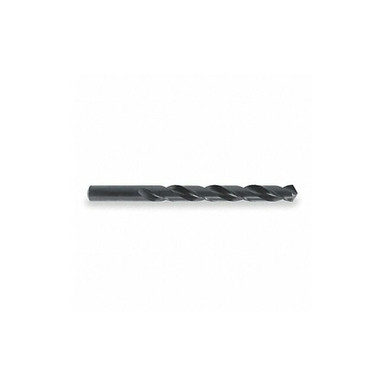

Jobber Bit, 9, High Speed Steel

Jobber Bit, 9, High Speed Steel

zoom

Brand: Cle-line
PartNumber: C22705
PackageQuantity: 1
Binding: Misc.
Manufacturer: CLE-LINE
Label: CLE-LINE

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Brand	Cle-Line
Color	Black Oxide
Coolant Fed	Non-Coolant Through
Current Stock	197
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.1960
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.1960"
Diameter (Wire/Let)	9
Drill Bit Dimension Type	Wire
Drill Bit Finish	Black Oxide
Drill Bit Grouping	Drill Bit
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	118 Degrees
Drill Bit Size	#9
Drill Construction	General Purpose
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in/-0.0007 in
Drill Length Class	Jobber Length
Drill Point Length	0.0589 in
Drill Size - Decimal In.	0.196 in
Drill Size - Wire	#9
Drill Size System	Wire
Drill Style	Jobber Drill
Finish	Black Oxide
Flute Length	2-7/16 in, 2 7/16 in, 2.
Flute Length (Metric)	61.91mm
Flute Type	Right Spiral, Spiral
Hand of Cut	Right
Hand of Spiral	Right
International Shipping	No
Item	Jobber Length Drill Bit
Lead Time	Expected to ship in 1-2.
Material	HSS, High Speed Steel
Maximum Drilling Depth	1 13/16 in
Mpn	C22705
Number of Flutes	2
Number of Pieces	1
Overall Length	3.6250", 3 5/8 in, 3-5/.
Overall Length (Metric)	92.07mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Series	1899
Shank Configuration	Straight
Shank Dia.	3/16 in
Shank Length	1 3/16 in, 1.1875"
Shank Length (Metric)	30.16mm
Shank Size	0.196 in Dia x 1.187 in.
Shank Size (Metric)	4.98mm
Shank Type	Straight
SKU	ZO-G0422222
Style	1899
SubCategory	Machining
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	#9
UPC	697334227052

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Global Industrial	WBB2545058	1.3998	12	12		Cle-Line		1.3998 @ 12
	Zoro	G0422222	1.69	1	404		Cle-Line	0.02	1.69 @ 12
	MRO Supply	6124298	1.7	30	12		Cle-Line		1.7 @ 30
	Megadepot	C22705	1.97	1	12		Cle-Line		1.97 @ 12
	usmegastore.com	C22705	1.97	1	12		Cle-Line		1.97 @ 12
	heavydutydepot.com	C22705	1.97	51	12		Cle-Line		1.97 @ 51
	sustainablesupply.com	C1465152	2.1	1	12		Cle-Line	0.02	2.1 @ 12
	Raptor Supplies	AD6THM	2.3799555	1	12		CLE-LINE		2.3799555 @ 12
	simsupply.com	ZO-G0422222	8.05	1	197		Cle-Line		8.05 @ 12
