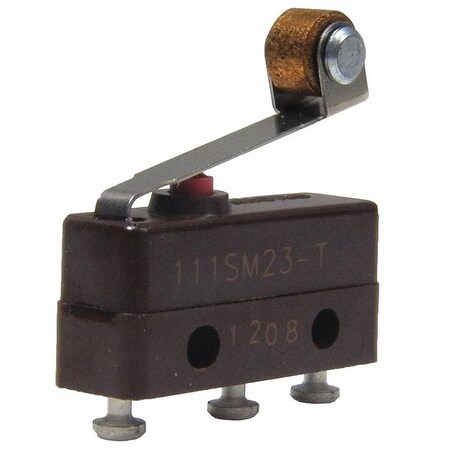

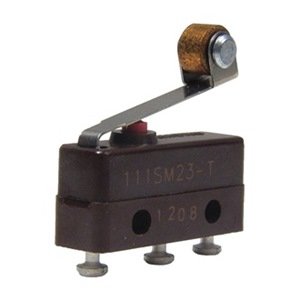

Honeywell 111SM23-T

mpn111SM23-T
brandname: Honeywell
manufacturername: Honeywell

Honeywell Sensing and Control Part Number 111SM23-T

Brand: Honeywell
PartNumber: 111SM23-T
PackageQuantity: 1
Manufacturer: Honeywell Sensing and Control
Label: Honeywell Sensing and Control

Attributes

Key	Value
AC Contact Rating - Sna.	1A @ 240V
AC contacts rating @R	1A / 125V AC
Actuator Length	0.12"
Actuator Type	Lever, Roller
Actuator Type - Snap Ac.	Lever, Roller
Base Product Number	111SM
Body dimensions	19.8x6.4x9.2mm
Category	Switches
Circuit	SPDT
Contact Form	SPDT
Contact Form- Switches	SPDT
Contacts configuration	SPDT
Country of Origin (subj.	Mexico
Current Rating	1A
Current Rating (Amps)	1A (AC/DC)
DC contacts rating @R	1A / 30V DC
Depth	0.25"
Depth - Snap Action Swi.	0.25 in
Description	SWITCH SNAP ACTION SPDT.
Detailed Description	Switch SPDT Chassis Mou.
Differential Travel	0.025" (0.6mm), 0.025"
Digi-Key Part Number	480-2330-ND
Electrical Connection -.	Solder Turret
Electrical Life	-
Features	-
Height	0.5"
Height - Snap Action Sw.	0.50 in
Housing Material	General Purpose Phenolic
Ingress Protection	-
Item	Miniature Snap Action S.
Leads	for soldering
Length	0.8"
Lever Actuator Length -.	0.12 in
Manufacturer	HONEYWELL, Honeywell Se.
Manufacturer Product Nu.	111SM23-T
Manufacturer series	SM
Manufacturer Standard L.	26 Weeks
Max. Pretravel	0.219"
Mechanical durability	1000000 cycles
Mechanical Life	10,000,000 Cycles
Mfr	Honeywell Sensing and P.
Mounting Dimension	0.38" Centers
Mounting Dimension - Sn.	0.38 in Centers
Mounting Type	Chassis Mount
Number of positions	2
Operating Force	198gf, 7 oz., 1.95N
Operating Position	0.562" (14.3mm)
Operating Temp. Range	-65 Degrees to 250 Deg.
Operating Temperature	-55?C ~ 125?C
Operating temperature	-54...121?C
Over Travel	0.03"
Overtravel	0.030" (0.76mm)
Package	Tray
Pretravel	0.218" (5.5mm)
Product Status	Active
Release Force	2.00 oz., 57gf
Series	SM
Stable positions number	1
Standards	ENEC, CE: 61058-1; UL: .
Switch Function	On-Mom
Switching method	ON-(ON)
Terminal Type	Solder Turret
Termination Style	Solder Turret
Type of Actuator	Roller Lever
Type of switch	microswitch SNAP ACTION
Voltage Rating	250VAC
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V
Watertight - Snap Actio.	No
Width - Snap Action Swi.	0.80"

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Zoro	G4719836	15.22	1	In Stock	10	Honeywell	15.22 @ 1
Waldom	HONEYWELL 111SM23-T	22.37	3	160		HONEYWELL	22.37 @ 3
Carlton Bates Company	78454972603	23.92	1	In Stock		HONEYWELL	23.92 @ 1
Newark	91B2776	32.28	200	In Stock		HONEYWELL	32.28 @ 200
Digi-Key	1248481	32.93005	200	In Stock		Honeywell Sensing and Productivity Solutions	32.93005 @ 200
Radwell	111SM23-T	36.0	100	75		HONEYWELL MICROSWITCH	36.0 @ 100
TME	111SM23-T	36.98	100	In Stock		HONEYWELL	36.98 @ 100
kempstoncontrols.co.uk	111SM23-T	8688.5136	1	In Stock		Honeywell	8688.5136 @ 1
