Leeson Electric 825127.00

B0773W36CM

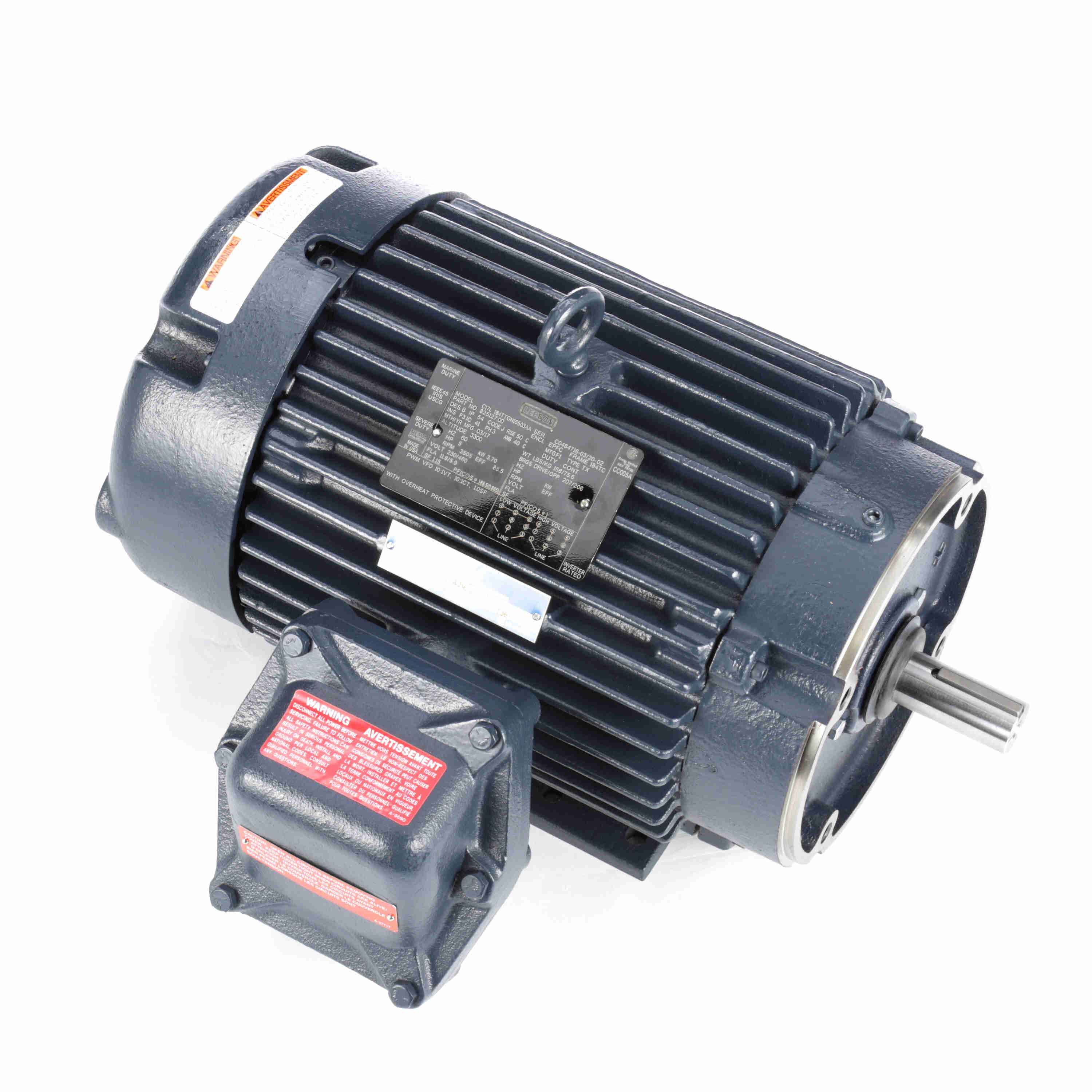

Leeson Electric, 825127.00, 5HP, 3505RPM, 3PH, 230V;460V, 184TC Frame, C-Face Flange, Foot Mount, TEFC, Explosion Proof Motor

Leeson Electric, 825127.00, 5HP, 3505RPM, 3PH, 230V;460V, 184TC Frame, C-Face Flange, Foot Mount, TEFC, Explosion Proof Motorzoom

Attributes

Key Value
Amperage Rating11.8/5.9 A
Amps11.8/5.9
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CategoryElectric Motor
Class/Group184TTGN16503
CompositionSteel
ConstructionCast Iron
Country of Origin (subj.United States
Description:..5HP..3600RPM.184TC.EP.
Dimensions18.62 in L
Drive End Bearing Size207
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency88.5, 88.5%
EnclosureTEFC, Explosion Proof, .
Enclosure MaterialCast Iron
Enclosure TypeEPFC, EPFC (Explosion P.
Estimated Weight130.00
Explosion Proof RatingClass I (Group C,D) Cla.
Family SeriesLeeson Motors, Explosio.
FL Amps11.8/5.9
FL Efficiency88.5
Frame184TC
Frame MaterialCast Iron
Frame RemarksFOOTED
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hazardous LocationDIV 1 EXP PROOF CL I GR.
Hertz60
Horsepower5 hp
HP5
Hz60
Insulation ClassClass F, F
Inverter DutyYes - Constant 10:1
Item ConditionFACTORY NEW
Item Number825127.00
KW3.7
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number825127.00
MaterialCast Iron
Maximum Ambient Tempera.40? C
MFG Part #:825127.00
Model Number184TTGN16503
Motor Shell Length10.00"
MountingFoot Mount, Rigid Base
mountingC-face w/ rigid base
Mounting TypeC-Face/Rigid Base, C-Fa.
NEMA Frame184TC
Net Weight130 lbs
Nominal Voltage240 VAC
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .206
Opp. Drive End Bearing .Ball
Overall Length18.62", 17.62 "
Part Number825127.00
Phase3, 3 ph
Product SeriesExplosion Proof
Product TypeExplosion Proof, Three .
RotationReversible
RPM3600, 3400 - 3600, 3505.
Service Factor1.15
Shaft Diameter1.125, UL;CSA, 1.125"
Shaft Length2.75, 2.75"
Shaft Size1.13 in Dia x 2.75 in L
Ship Weight168 lbs.
Special FeaturesExplosion Proof AC Moto.
Speed3505 rpm
Speed (RPM)3505
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
Thermal ProtectionThermostat
UPC:691720093061
Voltage230V, 460V, 230/460
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com8251271021.01In StockLEESON1021.0 @ 1
AmazonTPB0773W36CM1306.291In Stock3Leeson Electric1306.29 @ 1
thumbzoomMRO Supply25280601309.01In StockLeeson1309.0 @ 1
thumbzoomemotorpro.com825127.001630.21In StockLeeson168.01630.2 @ 1
thumbzoomDealers Electric825127.001661.011In StockLeeson168.01661.01 @ 1
thumbzoomZoroG24826181698.671In Stock2Leeson1698.67 @ 1
thumbzoommotorsandcontrol.comLE-825127.001795.516Leeson Electric130.01795.5 @ 1
us.rs-online.com733970171828.941In StockLeeson1828.94 @ 1
thumbzoomGalco825127.00-LEES1878.371In StockLeeson130.01878.37 @ 1
thumbzoomWalker Industrial825127-002034.91In Stock17Leeson2034.9 @ 1
kscdirect.comLEE 825127.002204.81In StockLEESON ELECTRIC CORPORATION2204.8 @ 1
thumbzoompumpproducts.com825127.002435.661In StockLeeson2435.66 @ 1
thumbzoomRaptor SuppliesAJ2UNQ2530.1720341In StockLEESON2530.172034 @ 1
