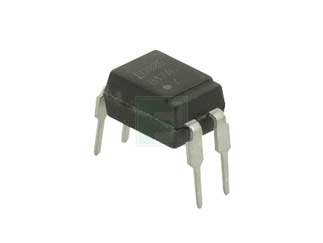

Lite-On LTV-817

mpnLTV-817
brandname: Lite-On Inc.
manufacturername: Lite-On Inc.

LITE-ON LTV-817 Optoelectronics isolation-components-optocouplers LTV Series Single Channel 35 V 5000 Vrms Transistor Output Optocoupler - DIP-4-100 item(s)

Brand: Lite-On
PartNumber: LTV-817
Model: LTV-817
PackageQuantity: 1
Manufacturer: LITE-ON
Label: LITE-ON

Attributes

Key	Value
@Ic (test)	1.0m
@If (A)	5m, 20m
@If (test) (A)	20m
@VCE (test)	5.0
Alternate Part No.	859-LTV-817
Base Product Number	LTV-817
Brand	Lite-On
Case	DIP4
Category	Isolators
Configuration	1 Channel
CTR (%)	50
Current - DC Forward (I.	50 mA
Current - Output / Chan.	50mA
Current Transfer Ratio	600 %
Current Transfer Ratio .	600% @ 5mA
Current Transfer Ratio .	50% @ 5mA
Ic Max. (A)	50m
If Max. (A)	50m
Input Type	DC
Isolation Voltage	5000 Vrms
Manufacturer	Lite-On
Manufacturer Part No.	LTV-817
Maximum Collector Curre.	50 mA
Maximum Collector Emitt.	0.2 V
Maximum Collector Emitt.	35 V
Maximum Fall Time	18 us
Maximum Forward Diode V.	1.4 V
Maximum Input Diode Cur.	50 mA
Maximum Operating Tempe.	+ 110 C
Maximum Power Dissipati.	200 mW
Maximum Reverse Diode V.	6 V
Maximum Rise Time	18 us
Mfr	Lite-On Inc.
Minimum Operating Tempe.	- 30 C
Mounting Type	Through Hole
Number of Chan.	1
Number of Channels	1
Number of Channels per .	1 Channel
Oper. Temp (?C) Max.	100
Oper. Temp (?C) Min	-30
Operating Temperature	-55?C ~ 110?C, -30?C ~ .
Output Device	NPN Phototransistor
Output Type	Transistor, DC
Package	Tube
Package / Case	4-DIP (0.300", 7.62mm)
Package/Case	PDIP-4
Packaging	Tube
Part Status	Active
PD Max. (W)	150m
Pinout Equivalence Numb.	4-67
Product Category	Transistor Output Optoc.
Product Status	Active
Rise / Fall Time (Typ)	4?s, 3?s
Series	-, LTV-8x7
SKU	89605
Supplier Device Package	4-DIP
Surface Mounted Yes/No	NO
t(resp) (S)	18u
Turn On / Turn Off Time.	-
Type	Opto
V(isol) Max. (V)	5.0k
Vbr CEO	35
Vce Saturation (Max)	200mV
VCE(sat) Max.	200m
Vf Max.	1.4
Voltage - Forward (Vf) .	1.2V
Voltage - Isolation	5000Vrms
Voltage - Output (Max)	35V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Future Electronics	4650347	0.07668	100	108600		Lite-On	0.07668 @ 100
Digi-Key	385836	0.138	1	100		Lite-On Inc.	0.138 @ 100
Hotenda	H2745518	0.192	1	100		Lite-On, Inc.	0.192 @ 100
TME	LTV-817	0.216	2	2126		LITEON	0.216 @ 100
Jameco	878243	0.27	190	100		Lite-On Electronics	0.27 @ 190
swatee.com	LTV-817	0.351	1	16174		Lite-On	0.351 @ 100
Little Diode	LTV817	5.9331285	1	100		Lite-On	5.9331285 @ 100
AmazonTP	B073RPHZKR	53.1	1	100	5	LITE-ON	53.1 @ 100
