Martin 120CTB60

B00452UQ3A

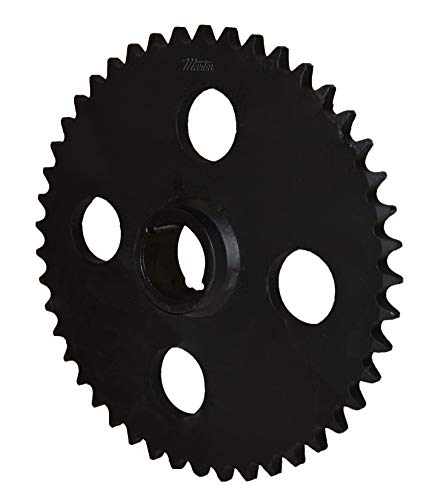

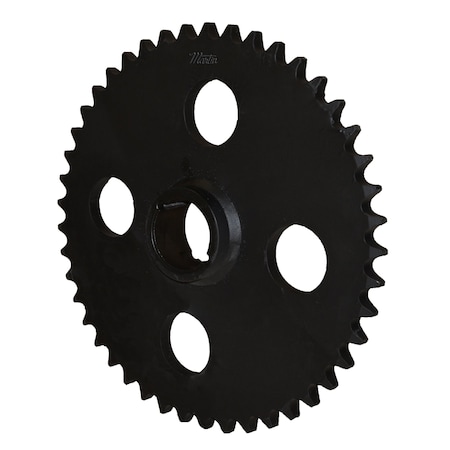

Martin Roller Chain Sprocket, Taper Bushed, Type C Hub, Single Strand, 120 Chain Size, For 3535 Bushing, 1.5" Pitch, 60 Teeth, 3.5" Max Bore Dia., 29.522" OD, 6.5" Hub Dia., 0.924" Width

Martin Roller Chain Sprocket, Taper Bushed, Type C Hub, Single Strand, 120 Chain Size, For 3535 Bushing, 1.5" Pitch, 60 Teeth, 3.5" Max Bore Dia., 29.522" OD, 6.5" Hub Dia., 0.924" Widthzoom

Attributes

Key Value
Bore TypeTaper Bush, Bushed
bore type:Bushed
bushing bore range:1-3/16 to 3-1/2 in
Bushing Code3535
Bushing SizeTB Bushed 3535
bushing size:3535
bushing type:Taper Locking
Caliper Diameter27.786
caliper diameter:27.7860 in
chain / sprocket type:Standard Roller Chain
Chain Number120
chain number & pitch:120 / 1-1/2 in
Chain Pitch1.5 in
Country of Origin (subj.United States
hardened teeth:Non-Hardened Teeth
hub diameter:6-1/2 in
Length through Bore (In.3.5
length through bore:3.5000 in
manufacturer upc number:697950032924
MaterialSteel
material:Steel
number of hubs:2
Number of Rows1
number of strands acros.1
Number of Teeth60
Number Of Teeth60
number of teeth:60
Outside Dia29.522"
Outside Dia. (In.)29.522
outside diameter:29.5220 in
overall width:3-1/2 in
Pitch1.5 in, 1.500 in., 1.5
Pitch Dia.28.661
pitch diameter:28.6610 in
pitch type:Single
SizeTB Bushed 3535
storage dimension heigh.3.5000 in
storage dimension lengt.29.5220 in
storage dimension width:29.5220 in
Storage Height3.5
Storage Length29.522
Storage Width29.522
Surface TreatmentProtective Coating
surface treatment:Protective Coating
tooth width:0.924 in
TypeBushed Roller Chain Spr.
Weight136
weight:136.00 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonB00452UQ3A735.761In StockMartin735.76 @ 1
thumbzoomMRO Supply259132923.851In StockMartin Sprocket923.85 @ 1
thumbzoomindustrialzone.com120CTB60934.171In StockMartin1.0934.17 @ 1
us.rs-online.com723191931112.591In StockMartin Sprocket & Gear1112.59 @ 1
cbtcompany.com120CTB601137.071In StockMartin Sprocket & Gear1137.07 @ 1
thumbzoommotionindustries.com001743051138.281In StockMartin1138.28 @ 1
thumbzoomPurvis120CTB601145.381In StockMartin1145.38 @ 1
thumbzoomZoroG24462881746.01In Stock14Martin Sprocket & Gear136.01746.0 @ 1
