NKK Switches UB26NBKG015F

B010IIYS6K

NKK Switches Part Number UB26NBKG015F

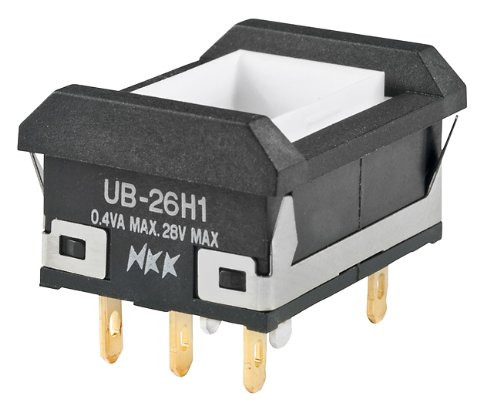

NKK Switches Part Number UB26NBKG015Fzoom

Attributes

Key Value
AC contacts rating @R0.1A / 28V AC
Actuator MarkingNo Marking
Actuator TypePlunger for Cap
Backlight colourgreen
Base Product NumberUB26NBK
Body dimensions24x17.8x12.5mm
CategorySwitches
CircuitDPDT
Color - Actuator/Cap-
Contact materialcopper
Contact platinggold-plated
Contacts configurationDPDT
Current Rating (Amps)0.4VA (AC/DC)
DC contacts rating @R0.1A / 28V DC
Electrical Life200,000 Cycles
Electrical life200000 cycles
FeaturesWith Barrier
IlluminationLED
Illumination Type, ColorLED, Green
Illumination Voltage (N.2.1 VDC
Ingress Protection-
Leadsfor soldering
ManufacturerNKK Switches
Manufacturer seriesUB
Max. contact resistance:100m?
Mechanical Life200,000 Cycles
MfrNKK Switches
Min. insulation resista.200M?
Mountingpanel
Mounting hole diameter22.4x16.2mm
Mounting TypePanel Mount, Snap-In
Number of positions2
Operating Temperature-25?C ~ 50?C
Operating temperature-25...50?C
PackageBulk
Panel Cutout DimensionsRectangular - 22.40mm x.
Part StatusActive
Product StatusActive
SeriesUB
Stable positions number2
Switch FunctionOn-On
Switching methodOn-On
Termination StyleSolder Lug
TypeStandard, Illuminated
Type of switchpush-button
Voltage Rating - AC28 V
Voltage Rating - DC28 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key210705714.351In StockNKK Switches14.35 @ 1
TMEUB26NBKG015F15.241In StockNKK SWITCHES15.24 @ 1
Newark11X513521.761In StockNKK SWITCHES21.76 @ 1
