Omron LY2AC24

mpnLY2AC24
brandname: OMRON
manufacturername: OMRON

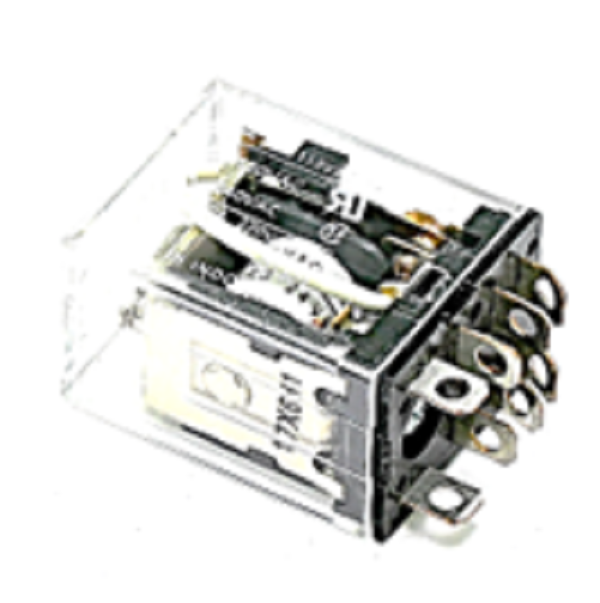

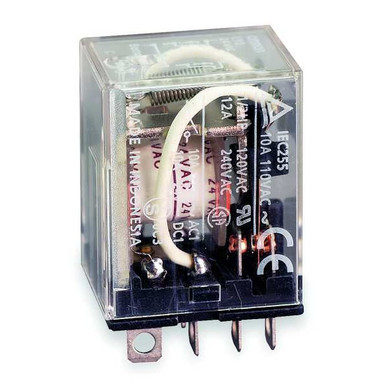

Omron Industrial LY2AC24 Medium Power Relays (3 Amps to 19.9 Amps)

Brand: Omron
PartNumber: LY2AC24
Manufacturer: Omron Industrial
Label: Omron Industrial

Attributes

Key	Value
AC Contact Rating - Rel.	10A @ 120V, 10 A @ 120V
Alternate Mfr Part Numb.	LY2AC24
Base Product Number	LY2-AC2
Base Type - Plug In Rel.	Square
Body Depth	1.42 in
Body Depth - Relay	1.10 in, 1.1 in
Body Height	1.1 in
Body Height - Relay	1.42 in
Body Width	0.85 in
Body Width - Relay	0.85 in
Brand	Omron
cms-category	Relays
Coil Current	46 mA
Coil Insulation	-
Coil Resistance	180 Ohms
Coil Type	Non Latching
Coil Voltage	24 VAC, 24VAC
Coil Volts	24V AC
Contact Current Rating	10 A
Contact Form	DPDT, DPDT (2 Form C)
Contact Form - Relay	DPDT
Contact Material	Silver Alloy
Contact Rating	10A @ 120VAC/24VDC
Contact Rating (Current)	10 A
Contact Resistance	50 mOhms
Contact Voltage Rating	300
Control Voltage	24
Current Rating	10 A
Current Stock	797
DC Contact Rating - Rel.	10 A @ 24V, 10A @ 24V
Dielectric Rating	2000 VAC
Features	Arc Barrier Equipped, H.
Flat Pin Width	0.197 in
Function	General Purpose
HP @ 120V	Not Rated
HP @ 240V	Not Rated
International Shipping	No
Item	General Purpose Relay
Item - Relay	General Purpose Relay
Lead Time	Expected to ship in 1-2.
Maximum Operating Tempe.	55 C
Mfr	Omron Automation and Sa.
Minimum Operating Tempe.	-25 C
Mounting - Relay	Plug In, Plug-In
Mounting Type	Socket Mount, Socketable
Mpn	LY2-AC24
Must Operate Voltage	19.2 VAC
Must Release Voltage	7.2 VAC
Number of Pins	8
Number of Pins - Relay	8
Operate Time	25 ms
Operating Temperature	-25?C ~ 55?C
Overall Depth	1.67 in
Overall Height - Relay	1.67 in
Package	Bulk
Power Consumption - Rel.	1.1 VA
Power Rating	1100 VA ; 240 W
Primary Type	Power Relays
Product Status	Active
Push To Test	No
Relay Type	Electromechanical, Gene.
Release Time	25 ms
Seal Rating	-
Series	LY Series, LY
SKU	ZO-G0278774
Socket Code - Relay	D
Standards	UL ; CSA ; SEV, CE Cert.
Status Indicator	No
SubCategory	Electrical
Switching Voltage	250VAC, 125VDC - Max
Termination	QC Tabs
Termination Style	Plug In
Voltage Rating	250 ; 125 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Carlton Bates Company	40312348173	9.13	1	8	OMRON		9.13 @ 8
Master Electronics	LY2AC24	9.31	1	738	Omron Automation		9.31 @ 8
Onlinecomponents.com	LY2AC24	9.39	3	1813	Omron		9.39 @ 8
Mouser	653-LY2-AC24	10.14	1	148	Omron		10.14 @ 8
AmazonTP	B005T6725Q	11.23	1	8	Omron		11.23 @ 8
grainger.ca	WWG2W929	12.17902468	1	8	OMRON	0.05	12.17902468 @ 8
us.rs-online.com	70178807	13.62	1	564	Omron Automation		13.62 @ 8
Verical	LY2-AC24	13.64	5	1813	Omron		13.64 @ 8
Zoro	G0278774	13.85	1	2515	Omron	0.05	13.85 @ 8
Newark	36K7544	14.02	1	8	OMRON INDUSTRIAL AUTOMATION		14.02 @ 8
Digi-Key	126864	14.4	1	330	Omron Automation and Safety		14.4 @ 8
Kele	LY2-AC24	14.56	1	567	Omron		14.56 @ 8
Airline Hydraulics	OMRON LY2-AC24	15.61	1	8	Omron		15.61 @ 8
Raptor Supplies	AC3TUT	20.1681675	1	8	OMRON		20.1681675 @ 8
simsupply.com	ZO-G0278774	22.25	1	797	Omron		22.25 @ 8
gsistore.com	LY2-AC24	23.91	1	19	Omron		23.91 @ 8
ptacsolutions.com	LY2-AC24	26.11	1	12	OMRON		26.11 @ 8
midwestapplianceparts.com	LY2-AC24-OM-P	32.18	1	8	Omron		32.18 @ 8
ebay.com_plccenter	LY2-AC24	109.09	1	8	Omron		109.09 @ 8
ebay.com_zorotools	LY2-AC24	109.69	1	8	Omron		109.69 @ 8
ebay.com_resellpro19	LY2-AC24	111.94	1	8	Omron		111.94 @ 8
ebay.com_grainger	LY2-AC24	114.43	1	8	Omron		114.43 @ 8
ebay.com_dante_dominions	LY2-AC24	114.98	1	8	Omron		114.98 @ 8
ebay.com_tooling_supply	LY2-AC24	119.31	1	8	Omron		119.31 @ 8
ebay.com_relayspec	LY2-AC24	131.49	1	8	Omron		131.49 @ 8
ebay.com_emsnet456	LY2-AC24	144.99	1	8	Omron		144.99 @ 8
ebay.com_commercialkitchendirect	LY2-AC24	149.63	1	8	Omron		149.63 @ 8
