ON Semiconductor MJ15025G

mpnMJ15025G
brandname: ON Semiconductor
manufacturername: ON Semiconductor

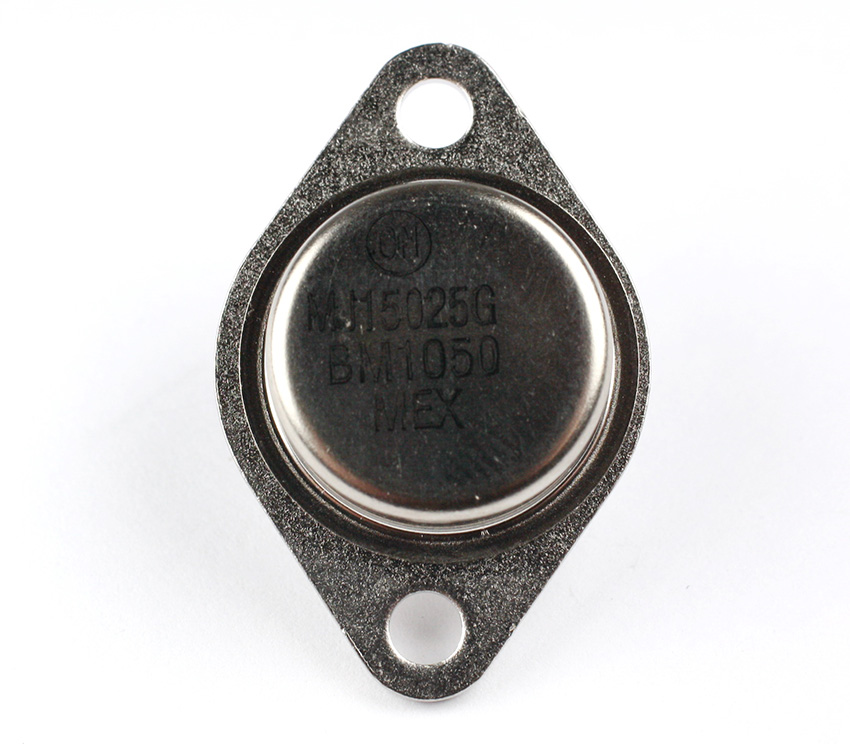

On Semiconductor Bipolar Transistor, Pnp, 250V to-3 - MJ15025G

On Semiconductor Bipolar Transistor, Pnp, 250V to-3 - MJ15025G

zoom

Brand: ON Semiconductor
PartNumber: MJ15025G
Model: MJ15025G
Size: 1 Piece
PackageQuantity: 1
Binding: Electronics
Manufacturer: On Semiconductor
Label: On Semiconductor

Attributes

Key	Value
Base Product Number	MJ15025
Category	Discrete Semiconductor .
Collector Current	16 A
Collector to Base Volta.	400 V
Collector to Emitter Vo.	250 V
Configuration	Common Base
Current	16
Current - Collector (Ic.	16 A
Current - Collector Cut.	500?A
DC Current Gain (hFE) (.	15 @ 8A, 4V
Dimensions	39.37 x 8.51 x 26.67 mm
Emitter to Base Voltage	5 V
Frequency - Transition	4MHz
Height	1.05" (26.67mm)
Length	1.55 in
Material	Si
Maximum Operating Tempe.	+200 ?C
Mfr	onsemi
Minimum Operating Tempe.	-65 ?C
Mounting Type	Through Hole
Number of Elements per .	1
Number of Pins	2
Operating Frequency	4 MHz
Operating Temperature	-65?C ~ 200?C (TJ)
Package	Tray
Package / Case	TO-204AA, TO-3
Package Type	TO-204
Part Status	Active
Polarity	PNP
Power - Max	250 W
Power Dissipation	250 W
Primary Type	Si
Product Header	PNP Silicon Power Trans.
Resistance, Thermal, Ju.	0.7 ?C/W
Series	-, Transistor Series
Supplier Device Package	TO-204 (TO-3)
Temperature Operating R.	-65 to +200 ?C
Transistor Type	PNP
Type	Power
Vce Saturation (Max) @ .	4V @ 3.2A, 16A
Voltage - Collector Emi.	250 V
Voltage, Breakdown, Col.	250 V
Voltage, Collector to E.	4 V
Width	0 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MCM Electronics	123-MJ15025G	4.07	1	100		On-Semiconductor		4.07 @ 100
	Future Electronics	6062502	5.052	100	100		ON Semiconductor		5.052 @ 100
	Newark	38K5642	5.78	1	100		ONSEMI		5.78 @ 100
	Digi-Key	919457	6.1344	500	100		onsemi		6.1344 @ 100
	BD Enterprises	MJ15025G	7.25	1	100		On Semiconductor		7.25 @ 100
	RS Delivers	544-9703	7.416	1	235		onsemi		7.416 @ 100
	us.rs-online.com	70099997	10.22	1	100		ON Semiconductor		10.22 @ 100
	Radwell	MJ15025G	12.0	1	100		ON SEMICONDUCTOR		12.0 @ 100
