SOLA-HD SDN40-24-480C

mpnSDN40-24-480C
brandname: Sola/Hevi-Duty
manufacturername: Sola/Hevi-Duty

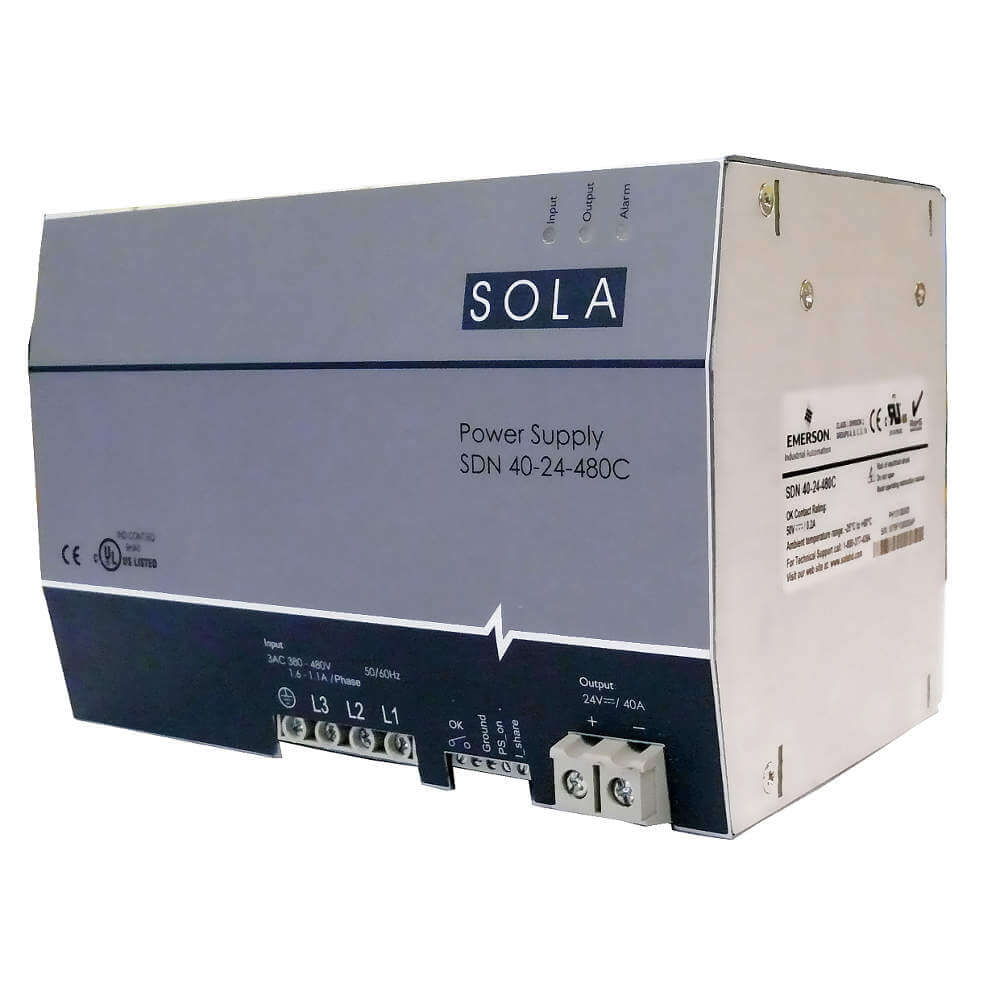

Sola/Hevi-Duty SDN40-24-480C DC Power Supply, 24 VDC, 40 Amp, 47-63 Hz

Brand: SOLA-HD
PartNumber: SDN40-24-480C
Model: SOLSDN4024480C
PackageQuantity: 1
Binding: Misc.
Manufacturer: Sola/Hevi-Duty
Label: Sola/Hevi-Duty

Attributes

Key	Value
Alternate Part No.	663-SDN40-24-480C
Amps	40
Application	Industrial Machine Cont.
Approvals	CE, cULus, cURus, UL508.
Brand	Solahd, Sola / Hevi-Duty
Cable Size	16 - 10 AWG Solid
Case Material	Metal Case
Catalog Number	SDN40-24-480C
Commercial/Medical	Commercial
Configuration	Enclosed
Country of Origin	Philippines
Country of Origin (subj.	Philippines
Cross Reference Products	Astec ADN40243PMC\|SolaH.
Current Stock	22
Depth	4.66 in
Dimensions	118.8 mm L x 85 mm W
Efficiency %	94 %
Encapsulated	No
Enclosed	Yes
Environmental Conditions	90 RH Humidity Range
Family Series	SolaHD Power Supplies, .
Features	Compact Packaging To Sa.
Frequency	47-63 Hz
Frequency Rating	50/60
Gross Weight	6.3 lbs
Height	4.85 in, 4.85, 4.85" (1.
Hold Up Time	Greater Than 20 msec
Hz	47 to 63 Hz
In-stock	13
In. Voltage	320-540 3 Phase
Input Frequency	50-60 Hz
Input Type	3-Phase / Three Phase
Input Voltage	380 to 480V AC, 380 VAC.
Input Voltage (AC)	320-540 VAC
Input Voltage Range	320-540 VAC 3Ph
Input Volts-Auto-Ranging	Yes
International Shipping	No
Item	Dc Power Supply
Item Number	SDN40-24-480C
Item Type	SDN-C Compact DIN Rail .
Lead Time	Expected to ship in 1-2.
Length	7.36
Made in USA	No
Manufacturer	Solahd, Sola/Hevi-Duty
Manufacturer Part No.	SDN40-24-480C
Manufacturer Part Number	SDN4024480C
Material	Metal Housing
Maximum Operating Tempe.	60 C
Minimum Operating Tempe.	-40 ?C
Mounting	Din Rail
Mounting Style	DIN Rail, Panel, Din Ra.
Mounting Type	DIN Rail Mount, Din Rail
Mpn	SDN4024480C
Net Weight	6.3 lbs
Nominal Input Voltage (.	380 VAC, 480 VAC
Nominal Output VDC	24 VDC
Number of Outputs	1
Open Frame/Enclosed	Enclosed
Operating Temp. Range	-25 Degrees to 60 Degr.
Operating Temperature	-13-140 ?F
Operation	PFC
Out. Voltage	24 VDC
Output Amps	40
Output Current	40 A
Output Current (Channel.	40 A
Output Current-Channel 1	40 A
Output Noise	Less Than 100mV
Output Power	960 W
Output Power Rating	960 W
Output VDC	24-28 VDC
Output Voltage	24V DC, 24 VDC
Output Voltage (Channel.	24 V
Output Voltage Adj.	Yes
Output Voltage-Channel 1	24 V
Overload Protection	Yes
Overvoltage Protection	Yes
Parallel Operation	Yes
Peak Amps	45
Phase	3
Phase (Input)	3
Phase - Electrical	Three
Power	960 W
Power Factor Correction	Yes
Power Rating	960W
Primary Type	AC-DC
Product	Linear Supplies
Product Categories	Power Supplies
Product Category	DIN Rail Power Supplies
Product Series	SDN-C
Remote On/Off Control	No
Remote Sensing	No
RoHS	No
RoHs Status	Rohs
Series	SDN-C Series, SDN-C
Short Circuit Protection	Yes
SKU	ZO-G3940806
Special Features	Compact packaging to sa.
Standard	UL (CANADA AND US), UL .
Standards	CE, cRUus E137632 E2347.
Status Indicator	Green/Yellow/Red LED
Style	Switching
SubCategory	Electrical
Type	Industrial
UPC	783472006014
Voltage Rating	380 - 400
Volts DC	24
Volts DC Range	450-820
Wattage	18, 960
Width	7.09 in, 0 in, 1.97

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Onlinecomponents.com	SDN40-24-480C	659.33	1	4		SOLA		659.33 @ 1
Straight Road Electronics	SDN4024480C	773.4	1	In Stock		Sola/Hevi-Duty		773.4 @ 1
Carlton Bates Company	78347200601	837.24	1	In Stock		Sola/Hevi-Duty		837.24 @ 1
AmazonTP	B00URWHW98	845.56	1	In Stock	1	Sola/Hevi-Duty		845.56 @ 1
Zoro	G3940806	891.99	1	In Stock		Solahd	5.95	891.99 @ 1
sustainablesupply.com	C1156804	953.29	1	In Stock		Sola	5.95	953.29 @ 1
MRO Supply	1011872	970.56	1	In Stock		SolaHD		970.56 @ 1
Hawk Electronics	SDN4024480C	998.0	1	In Stock		Sola HD		998.0 @ 1
Grainger	10G790	1022.0	1	20	0	SOLA/HEVI-DUTY		1022.0 @ 1
standardelectricsupply.com	2211458	1079.36	1	In Stock		Sola/Hevi-Duty		1079.36 @ 1
simsupply.com	ZO-G3940806	1114.8	1	22		Solahd		1114.8 @ 1
gordonelectricsupply.com	SDN40-24-480C	1115.0	1	In Stock	380	SOLA-HD		1115.0 @ 1
Newark	73R7416	1122.42	1	18		SOLAHD		1122.42 @ 1
RS Delivers	891-3320	1133.22	1	In Stock		SolaHD		1133.22 @ 1
Walker Industrial	SDN4024480C	1165.71	1	In Stock	17	SolaHD		1165.71 @ 1
us.rs-online.com	70211532	1171.43	1	41		SolaHD		1171.43 @ 1
Galco	SDN40-24-480C-SOLA	1217.91	1	1		SolaHD	6.3	1217.91 @ 1
Platt.com	0906317	1226.35	1	In Stock		Sola Hevi-Duty		1226.35 @ 1
National Supply Network	83863647	1328.66	1	In Stock		Sola/Hevi-Duty		1328.66 @ 1
kirbyrisk.com	2427309	1624.2	1	7		Solahd		1624.2 @ 1
Raptor Supplies	AA2GBX	1768.966173	1	In Stock		SOLA/HEVI-DUTY		1768.966173 @ 1
swatee.com	SDN40-24-480C	1889.83	1	4		Sola/Hevi-Duty		1889.83 @ 1
crescentelectric.com	8135	2326.58	1	8		SolaHD		2326.58 @ 1
