Square D 8536SDG1V03H30

B0078QSLAU

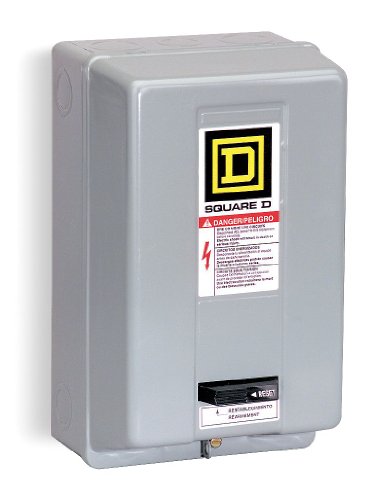

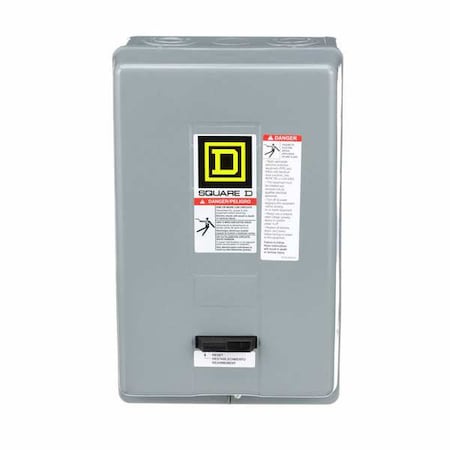

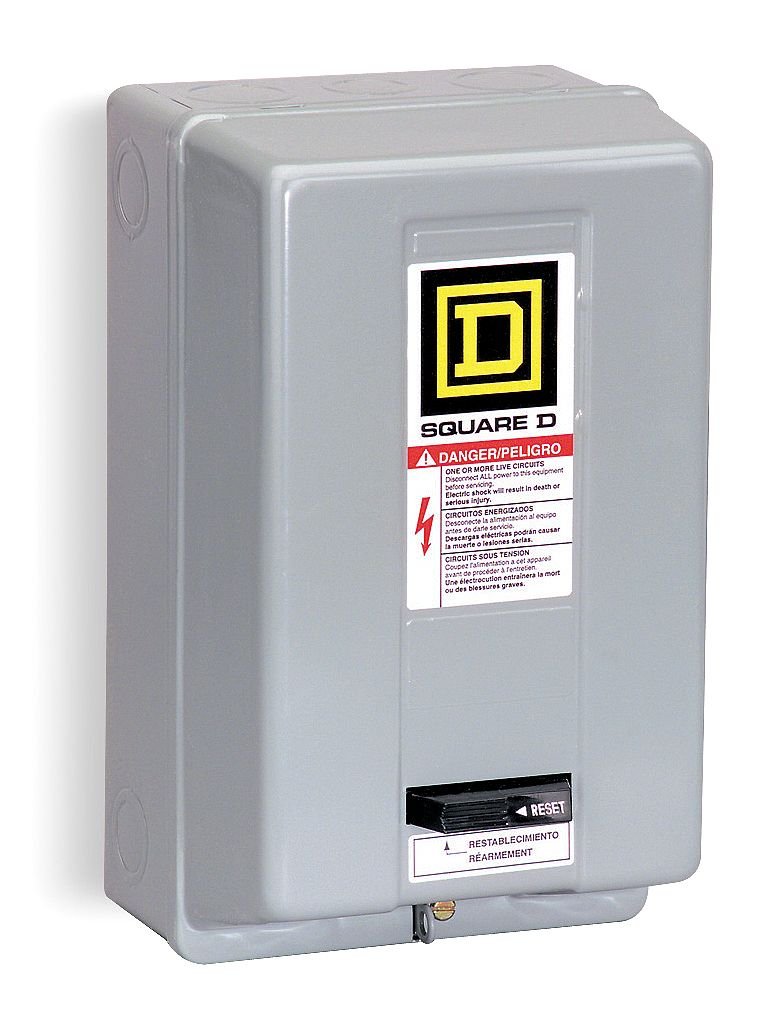

Nema Magnetic Motor Starter

Nema Magnetic Motor Starterzoom

Attributes

Key Value
3-Phase HP Rating (Max.)15
[Uc] Control Circuit Vo.220 V AC 50 Hz || 240 V.
[Ue] Rated Operational .600 V AC
ActionNonreversing
Amperage Rating45A
Amps AC45
ApplicationUSED FOR FULL-VOLTAGE S.
Auxiliary Contact Compo.without
Auxiliary Contact Form1NO, 1 NO
AvailabilityExpected to ship in 1-2.
BrandSquare D
California Proposition .Lead and lead compounds.
Catalog Number8536SDG1V03H30
China Rohs RegulationProduct out of China Ro.
Coil Voltage240V ac, 220 V AC 50 Hz.
Coil Volts240V ac
Connectionscrew clamp terminals
Control CircuitCommon Control Circuit
Control Typeno control units
Country of OriginMexico, 00 - Unknown
Current Stock3
Depth7.8 in, 160 mm
ECCNEAR99
Electrical Connectionscrew clamp terminals
Enclosure NEMA Rating1
Enclosure TypePainted Steel Sheet
Eu Rohs DirectiveCompliant
FeaturesSolid State Overload Re.
GTIN00785901807070
Height322 mm, 12.69 in
HP @ 3 Phase - 208V10 hp
HP @ 3 Phase - 240V15 hp
HP @ 3 Phase - 480V25 hp
HP @ 3 Phase - 575V25 hp
Hz50/60
IncludesSolid State Overload Re.
International ShippingNo
ItemNEMA Magnetic Motor Sta.
Item TypeMotor starter;No contro.
Line Rated Current45 A
Local Signallingwithout pilot light
Made in USANo
ManufacturerSchneider Electric
Mercury FreeYes
ModificationCommon Control Circuit
Motor Starter Typenon reversing
Mpn8536SDG1V03H30
Nema Degree Of Protecti.NEMA 1 painted sheet st.
Nema Size2
NEMA Size2
NEMA Starter Size2
Number of Poles3
Operating Voltage600V AC
Overload Relay Amp Sett.15 to 45 A, 15 to 45A
Phase3, 3 phase
Poles Description3P
Power Supply240VAC@60HZ - 220VAC@50.
Product CertificationsUL Listed || CSA || NEMA
Product Or Component Ty.motor starter
Pvc FreeYes
Range Of ProductS
Rated Power In Hp10 HP 200 V AC || 15 HP.
Reach RegulationReference contains Subs.
Reset Typesolid state Motor Logic.
Rohs Exemption Informat.Yes
SeriesS Series
Size2
SKUZO-G0287996
Special Featureswithout pilot light
StandardUL LISTED - CSA CERTIFI.
StandardsCSA, UL
Starter TypeNEMA Style
Sub BrandS
SubCategoryElectrical
Thermal Overload Typesolid state Motor Logic.
UNSPSC39121521
UPC785901807070
Voltage Rating600VAC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width6.3 in, 198 mm
